Represents the builder for analyzing strain gage data. More...

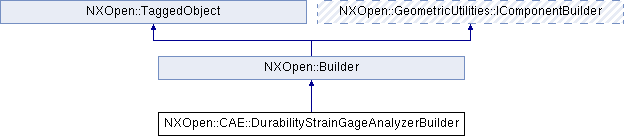

Inheritance diagram for NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder:

Public Types
enum	AxisDirectionSearchMethodEnum { AxisDirectionSearchMethodEnumCriticalPlane, AxisDirectionSearchMethodEnumPrincipalAxis }
	the axis direction search enum. More...

enum	CriticalPlaneOptionEnum { CriticalPlaneOptionEnumMaximumShear, CriticalPlaneOptionEnumMaximumPrincipal }
	the critical plane option enum. More...

enum	GageConstructionEnum { GageConstructionEnumStacked, GageConstructionEnumPlanar, GageConstructionEnumUser }
	the gage construction enum. More...

enum	GageSourceEnum { GageSourceEnumResponse, GageSourceEnumAfu }
	the gage source enum. More...

enum	GageTypeEnum { GageTypeEnumRectangular, GageTypeEnumDelta, GageTypeEnumTee }
	the gage type enum. More...

Public Member Functions
bool	AbsoluteMaximumPrincipalAngle ()
	Returns the absoluteMaximumPrincipalAngle.

bool	AbsoluteMaximumPrincipalStrain ()
	Returns the absoluteMaximumPrincipalStrain.

bool	AbsoluteMaximumPrincipalStress ()
	Returns the absoluteMaximumPrincipalStress.

bool	AbsoluteMaximumShearStrain ()
	Returns the absoluteMaximumShearStrain.

bool	AbsoluteMaximumShearStress ()
	Returns the absoluteMaximumShearStress.

void	AddStrainGageData (const NXString &strainGage, const NXString &afuName, int numRecords, int index1, int index2, int index3)
	Add gage data.

void	AddStrainGageData (const char strainGage, const char afuName, int numRecords, int index1, int index2, int index3)
	Add gage data.

NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::AxisDirectionSearchMethodEnum	AxisDirectionSearchMethod ()
	Returns the axis direction search method.

bool	BiaxialityRatioHistory ()
	Returns the biaxialityRatioHistory.

NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::CriticalPlaneOptionEnum	CriticalPlaneOption ()
	Returns the critical plane option.

bool	EffectiveStrain ()
	Returns the effective strain.

bool	EffectiveStress ()
	Returns the effective stress.

NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageConstructionEnum	GageConstruction ()
	Returns the gage construction.

double	GagePoissonRatio ()
	Returns the gagePoissonRatio.

NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageSourceEnum	GageSource ()
	Returns the gage source.

NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageTypeEnum	GageType ()
	Returns the gage type.

double	Kt1 ()
	Returns the kt1.

double	Kt2 ()
	Returns the kt2.

double	Kt3 ()
	Returns the kt3.

NXOpen::PhysicalMaterial *	MaterialTag ()
	Returns the materialTag.

bool	MaximumPrincipalAngle ()
	Returns the maximumPrincipalAngle.

bool	MaximumPrincipalStrain ()
	Returns the maximumPrincipalStrain.

bool	MaximumPrincipalStress ()
	Returns the maxPrinStress.

bool	MaximumShearStrain ()
	Returns the maximumShearStrain.

bool	MaximumShearStress ()
	Returns the maximumShearStress.

NXOpen::Expression *	SearchResolution ()
	Returns the search resolution.

void	SetAbsoluteMaximumPrincipalAngle (bool absoluteMaximumPrincipalAngle)
	Sets the absoluteMaximumPrincipalAngle.

void	SetAbsoluteMaximumPrincipalStrain (bool absoluteMaximumPrincipalStrain)
	Sets the absoluteMaximumPrincipalStrain.

void	SetAbsoluteMaximumPrincipalStress (bool absoluteMaximumPrincipalStress)
	Sets the absoluteMaximumPrincipalStress.

void	SetAbsoluteMaximumShearStrain (bool absoluteMaximumShearStrain)
	Sets the absoluteMaximumShearStrain.

void	SetAbsoluteMaximumShearStress (bool absoluteMaximumShearStress)
	Sets the absoluteMaximumShearStress.

void	SetAxisDirectionSearchMethod (NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::AxisDirectionSearchMethodEnum axisDirectionSearchMethod)
	Sets the axis direction search method.

void	SetBiaxialityRatioHistory (bool biaxialityRatioHistory)
	Sets the biaxialityRatioHistory.

void	SetCriticalPlaneOption (NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::CriticalPlaneOptionEnum criticalPlaneOption)
	Sets the critical plane option.

void	SetEffectiveStrain (bool effectiveStrain)
	Sets the effective strain.

void	SetEffectiveStress (bool effectiveStress)
	Sets the effective stress.

void	SetGageConstruction (NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageConstructionEnum gageConstruction)
	Sets the gage construction.

void	SetGagePoissonRatio (double gagePoissonRatio)
	Sets the gagePoissonRatio.

void	SetGageSource (NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageSourceEnum gageSource)
	Sets the gage source.

void	SetGageType (NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageTypeEnum gageType)
	Sets the gage type.

void	SetKt1 (double kt1)
	Sets the kt1.

void	SetKt2 (double kt2)
	Sets the kt2.

void	SetKt3 (double kt3)
	Sets the kt3.

void	SetMaterialTag (NXOpen::PhysicalMaterial *materialTag)
	Sets the materialTag.

void	SetMaximumPrincipalAngle (bool maximumPrincipalAngle)
	Sets the maximumPrincipalAngle.

void	SetMaximumPrincipalStrain (bool maximumPrincipalStrain)
	Sets the maximumPrincipalStrain.

void	SetMaximumPrincipalStress (bool maximumPrincipalStress)
	Sets the maxPrinStress.

void	SetMaximumShearStrain (bool maximumShearStrain)
	Sets the maximumShearStrain.

void	SetMaximumShearStress (bool maximumShearStress)
	Sets the maximumShearStress.

void	SetSignedVonMisesStress (bool signedVonMisesStress)
	Sets the signedVonMisesStress.

void	SetTargetFileName (const NXString &filename)
	Sets the targetFileName.

void	SetTargetFileName (const char *filename)
	Sets the targetFileName.

void	SetUseEffectiveBiaxialityRatio (bool useEffectiveBiaxialityRatio)
	Sets the effective biaxiality ratio.

void	SetVonMisesStress (bool vonMisesStress)
	Sets the vonMisesStress.

bool	SignedVonMisesStress ()
	Returns the signedVonMisesStress.

NXString	TargetFileName ()
	Returns the targetFileName.

bool	UseEffectiveBiaxialityRatio ()
	Returns the effective biaxiality ratio.

void	UseStrainGageData (const NXString &prefixName, const NXString &name, const NXString &afuName, int numRecords, int index1, int index2, int index3)
	Use straingage data.

void	UseStrainGageData (const char prefixName, const char name, const char *afuName, int numRecords, int index1, int index2, int index3)
	Use straingage data.

bool	VonMisesStress ()
	Returns the vonMisesStress.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the builder for analyzing strain gage data.

To create a new instance of this class, use CAE::DurabilityManager::CreateStrainGageAnalyzerBuilder

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::AxisDirectionSearchMethodEnum

the axis direction search enum.

Enumerator:

AxisDirectionSearchMethodEnumCriticalPlane	Critical Plane.
AxisDirectionSearchMethodEnumPrincipalAxis	Principal Axis.

enum NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::CriticalPlaneOptionEnum

the critical plane option enum.

Enumerator:

CriticalPlaneOptionEnumMaximumShear	Maximum Shear.
CriticalPlaneOptionEnumMaximumPrincipal	Maximum Principal.

enum NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageConstructionEnum

the gage construction enum.

Enumerator:

GageConstructionEnumStacked	Stacked.
GageConstructionEnumPlanar	Planar.
GageConstructionEnumUser	User.

enum NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageSourceEnum

the gage source enum.

Enumerator:

GageSourceEnumResponse	Response.
GageSourceEnumAfu	Afu.

enum NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageTypeEnum

the gage type enum.

Enumerator:

GageTypeEnumRectangular	Rectangular.
GageTypeEnumDelta	Delta.
GageTypeEnumTee	Tee.

Member Function Documentation

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::AbsoluteMaximumPrincipalAngle ( )

Returns the absoluteMaximumPrincipalAngle.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::AbsoluteMaximumPrincipalStrain ( )

Returns the absoluteMaximumPrincipalStrain.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::AbsoluteMaximumPrincipalStress ( )

Returns the absoluteMaximumPrincipalStress.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::AbsoluteMaximumShearStrain ( )

Returns the absoluteMaximumShearStrain.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::AbsoluteMaximumShearStress ( )

Returns the absoluteMaximumShearStress.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::AddStrainGageData	(	const NXString &	strainGage,
		const NXString &	afuName,
		int	numRecords,
		int	index1,
		int	index2,
		int	index3
	)

Add gage data.

Deprecated:: Deprecated in NX8.5.0. Use CAE::DurabilityStrainGageAnalyzerBuilder::UseStrainGageData instead.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

strainGage	NOTE: The full Unicode character set is not supported for this parameter.
afuName	NOTE: The full Unicode character set is not supported for this parameter.
numRecords	numrecords
index1	index1
index2	index2
index3	index3

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::AddStrainGageData	(	const char *	strainGage,
		const char *	afuName,
		int	numRecords,
		int	index1,
		int	index2,
		int	index3
	)

Add gage data.

Deprecated:: Deprecated in NX8.5.0. Use CAE::DurabilityStrainGageAnalyzerBuilder::UseStrainGageData instead.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

strainGage	NOTE: The full Unicode character set is not supported for this parameter.
afuName	NOTE: The full Unicode character set is not supported for this parameter.
numRecords	numrecords
index1	index1
index2	index2
index3	index3

NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::AxisDirectionSearchMethodEnum NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::AxisDirectionSearchMethod ( )

Returns the axis direction search method.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::BiaxialityRatioHistory ( )

Returns the biaxialityRatioHistory.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::CriticalPlaneOptionEnum NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::CriticalPlaneOption ( )

Returns the critical plane option.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::EffectiveStrain ( )

Returns the effective strain.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::EffectiveStress ( )

Returns the effective stress.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageConstructionEnum NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageConstruction ( )

Returns the gage construction.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

double NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GagePoissonRatio ( )

Returns the gagePoissonRatio.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageSourceEnum NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageSource ( )

Returns the gage source.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageTypeEnum NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageType ( )

Returns the gage type.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

double NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::Kt1 ( )

Returns the kt1.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

double NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::Kt2 ( )

Returns the kt2.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

double NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::Kt3 ( )

Returns the kt3.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

NXOpen::PhysicalMaterial* NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::MaterialTag ( )

Returns the materialTag.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::MaximumPrincipalAngle ( )

Returns the maximumPrincipalAngle.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::MaximumPrincipalStrain ( )

Returns the maximumPrincipalStrain.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::MaximumPrincipalStress ( )

Returns the maxPrinStress.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::MaximumShearStrain ( )

Returns the maximumShearStrain.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::MaximumShearStress ( )

Returns the maximumShearStress.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

NXOpen::Expression* NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SearchResolution ( )

Returns the search resolution.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetAbsoluteMaximumPrincipalAngle ( bool absoluteMaximumPrincipalAngle )

Sets the absoluteMaximumPrincipalAngle.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

absoluteMaximumPrincipalAngle absolutemaximumprincipalangle

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetAbsoluteMaximumPrincipalStrain ( bool absoluteMaximumPrincipalStrain )

Sets the absoluteMaximumPrincipalStrain.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

absoluteMaximumPrincipalStrain absolutemaximumprincipalstrain

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetAbsoluteMaximumPrincipalStress ( bool absoluteMaximumPrincipalStress )

Sets the absoluteMaximumPrincipalStress.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

absoluteMaximumPrincipalStress absolutemaximumprincipalstress

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetAbsoluteMaximumShearStrain ( bool absoluteMaximumShearStrain )

Sets the absoluteMaximumShearStrain.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

absoluteMaximumShearStrain absolutemaximumshearstrain

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetAbsoluteMaximumShearStress ( bool absoluteMaximumShearStress )

Sets the absoluteMaximumShearStress.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

absoluteMaximumShearStress absolutemaximumshearstress

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetAxisDirectionSearchMethod ( NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::AxisDirectionSearchMethodEnum axisDirectionSearchMethod )

Sets the axis direction search method.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

axisDirectionSearchMethod axisdirectionsearchmethod

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetBiaxialityRatioHistory ( bool biaxialityRatioHistory )

Sets the biaxialityRatioHistory.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

biaxialityRatioHistory biaxialityratiohistory

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetCriticalPlaneOption ( NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::CriticalPlaneOptionEnum criticalPlaneOption )

Sets the critical plane option.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

criticalPlaneOption criticalplaneoption

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetEffectiveStrain ( bool effectiveStrain )

Sets the effective strain.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

effectiveStrain effectivestrain

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetEffectiveStress ( bool effectiveStress )

Sets the effective stress.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

effectiveStress effectivestress

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetGageConstruction ( NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageConstructionEnum gageConstruction )

Sets the gage construction.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

gageConstruction gageconstruction

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetGagePoissonRatio ( double gagePoissonRatio )

Sets the gagePoissonRatio.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

gagePoissonRatio gagepoissonratio

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetGageSource ( NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageSourceEnum gageSource )

Sets the gage source.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

gageSource gagesource

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetGageType ( NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::GageTypeEnum gageType )

Sets the gage type.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

gageType gagetype

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetKt1 ( double kt1 )

Sets the kt1.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

kt1 kt1

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetKt2 ( double kt2 )

Sets the kt2.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

kt2 kt2

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetKt3 ( double kt3 )

Sets the kt3.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

kt3 kt3

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetMaterialTag ( NXOpen::PhysicalMaterial * materialTag )

Sets the materialTag.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

materialTag materialtag

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetMaximumPrincipalAngle ( bool maximumPrincipalAngle )

Sets the maximumPrincipalAngle.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

maximumPrincipalAngle maximumprincipalangle

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetMaximumPrincipalStrain ( bool maximumPrincipalStrain )

Sets the maximumPrincipalStrain.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

maximumPrincipalStrain maximumprincipalstrain

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetMaximumPrincipalStress ( bool maximumPrincipalStress )

Sets the maxPrinStress.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

maximumPrincipalStress maximumprincipalstress

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetMaximumShearStrain ( bool maximumShearStrain )

Sets the maximumShearStrain.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

maximumShearStrain maximumshearstrain

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetMaximumShearStress ( bool maximumShearStress )

Sets the maximumShearStress.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

maximumShearStress maximumshearstress

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetSignedVonMisesStress ( bool signedVonMisesStress )

Sets the signedVonMisesStress.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

signedVonMisesStress signedvonmisesstress

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetTargetFileName ( const NXString & filename )

Sets the targetFileName.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

filename filename

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetTargetFileName ( const char * filename )

Sets the targetFileName.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

filename filename

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetUseEffectiveBiaxialityRatio ( bool useEffectiveBiaxialityRatio )

Sets the effective biaxiality ratio.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

useEffectiveBiaxialityRatio useeffectivebiaxialityratio

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SetVonMisesStress ( bool vonMisesStress )

Sets the vonMisesStress.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

vonMisesStress vonmisesstress

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::SignedVonMisesStress ( )

Returns the signedVonMisesStress.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

NXString NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::TargetFileName ( )

Returns the targetFileName.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::UseEffectiveBiaxialityRatio ( )

Returns the effective biaxiality ratio.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::UseStrainGageData	(	const NXString &	prefixName,
		const NXString &	name,
		const NXString &	afuName,
		int	numRecords,
		int	index1,
		int	index2,
		int	index3
	)

Use straingage data.

Created in NX8.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

prefixName	NOTE: The full Unicode character set is not supported for this parameter.
name	NOTE: The full Unicode character set is not supported for this parameter.
afuName	NOTE: The full Unicode character set is not supported for this parameter.
numRecords	numrecords
index1	index1
index2	index2
index3	index3

void NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::UseStrainGageData	(	const char *	prefixName,
		const char *	name,
		const char *	afuName,
		int	numRecords,
		int	index1,
		int	index2,
		int	index3
	)

Use straingage data.

Created in NX8.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

prefixName	NOTE: The full Unicode character set is not supported for this parameter.
name	NOTE: The full Unicode character set is not supported for this parameter.
afuName	NOTE: The full Unicode character set is not supported for this parameter.
numRecords	numrecords
index1	index1
index2	index2
index3	index3

bool NXOpen::CAE::DurabilityStrainGageAnalyzerBuilder::VonMisesStress ( )

Returns the vonMisesStress.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

The documentation for this class was generated from the following file:

CAE_DurabilityStrainGageAnalyzerBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
