Represents the builder for the static durability event. More...

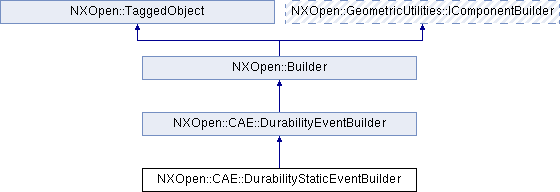

Inheritance diagram for NXOpen::CAE::DurabilityStaticEventBuilder:
Public Types | |
| enum | ExcitationTypeEnum { ExcitationTypeEnumPattern, ExcitationTypeEnumResultPath, ExcitationTypeEnumFunction } |
| the static excitation type. More... | |
Public Member Functions | |
| NXOpen::CAE::DurabilityStaticEventBuilder::ExcitationTypeEnum | ExcitationType () |
| Returns the excitation type. | |
| void | SetExcitationType (NXOpen::CAE::DurabilityStaticEventBuilder::ExcitationTypeEnum excitationType) |
| Sets the excitation type. | |
 Public Member Functions inherited from NXOpen::CAE::DurabilityEventBuilder | |
| NXOpen::CAE::DurabilityEventFatigueSettingsBuilder * | EventFatigueSettings () |
| Returns the event fatigue settings. | |
| NXString | EventName () |
| Returns the event name. | |
| NXOpen::CAE::DurabilityEventOverridesBuilder * | EventOverrides () |
| Returns the event overrides. | |
| NXOpen::CAE::DurabilityEventStrengthSettingsBuilder * | EventStrengthSettings () |
| Returns the event strength settings. | |
| NXOpen::NXObject * | ResultSourceTag () |
| Returns the source of results for the event. | |
| void | SetAxissearch (NXOpen::CAE::DurabilityAxisSearch *axisSearch) |
| The stress axes stored inside the event. | |
| void | SetEventName (const NXString &title) |
| Sets the event name. | |
| void | SetEventName (const char *title) |
| Sets the event name. | |
| void | SetFatigue (NXOpen::CAE::DurabilityFatigue *fatigue) |
| The event fatigue settings stored inside the event. | |
| void | SetResultSourceTag (NXOpen::NXObject *resultSourceTag) |
| Sets the source of results for the event. | |
| void | SetSolveoptions (NXOpen::CAE::DurabilitySolveOptions *solveOption) |
| The event overrides. | |
| void | SetStrength (NXOpen::CAE::DurabilityStrength *strength) |
| The event strength settings stored inside the event. | |
| NXOpen::CAE::DurabilityStressAxesBuilder * | StressAxes () |
| Returns the stress axes. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents the builder for the static durability event.
There is no kf creator for this.
Created in NX7.5.0.
Member Enumeration Documentation
Member Function Documentation
| NXOpen::CAE::DurabilityStaticEventBuilder::ExcitationTypeEnum NXOpen::CAE::DurabilityStaticEventBuilder::ExcitationType | ( | ) |
Returns the excitation type.
Created in NX7.5.0.
License requirements : nx_adv_durability ("NX Advanced Durability")
| void NXOpen::CAE::DurabilityStaticEventBuilder::SetExcitationType | ( | NXOpen::CAE::DurabilityStaticEventBuilder::ExcitationTypeEnum | excitationType | ) |
Sets the excitation type.
Created in NX7.5.0.
License requirements : nx_adv_durability ("NX Advanced Durability")
- Parameters
-
excitationType excitationtype
The documentation for this class was generated from the following file:
- CAE_DurabilityStaticEventBuilder.hxx
