Represents a builder class for the event strength settings. More...

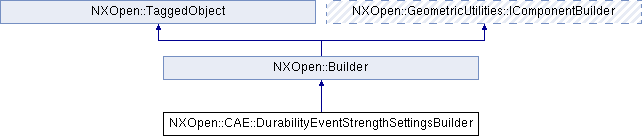

Inheritance diagram for NXOpen::CAE::DurabilityEventStrengthSettingsBuilder:

Public Types
enum	OrthotropicFailureCriterionEnum { OrthotropicFailureCriterionEnumHill, OrthotropicFailureCriterionEnumHoffman, OrthotropicFailureCriterionEnumTsaiWu, OrthotropicFailureCriterionEnumMaximumStress }
	the orthotropic Failure criterion enum. More...

enum	StressCriterionEnum { StressCriterionEnumUltimateStress, StressCriterionEnumYieldStress }
	the stress criterion enum. More...

enum	StressTypeEnum { StressTypeEnumVonMises, StressTypeEnumTresca, StressTypeEnumMaximumPrincipal, StressTypeEnumMinimumPrincipal }
	the stress type enum. More...

Public Member Functions
double	FactorOfSafety ()
	Returns the factor of safety.

bool	MarginOfSafety ()
	Returns the margin of safety.

NXString	Name ()
	Returns the name.

NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::OrthotropicFailureCriterionEnum	OrthotropicFailureCriterion ()
	Returns the orthotropic failure criterion.

bool	PerformOrthotropicAnalysis ()
	Returns the perform orthotropic analysis.

void	SetFactorOfSafety (double factorOfSafety)
	Sets the factor of safety.

void	SetMarginOfSafety (bool marginOfSafety)
	Sets the margin of safety.

void	SetName (const NXString &title)
	Sets the name.

void	SetName (const char *title)
	Sets the name.

void	SetOrthotropicFailureCriterion (NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::OrthotropicFailureCriterionEnum orthotropicFailureCriterion)
	Sets the orthotropic failure criterion.

void	SetPerformOrthotropicAnalysis (bool performOrthotropicAnalysis)
	Sets the perform orthotropic analysis.

void	SetStrengthSafetyFactor (bool strengthSafetyFactor)
	Sets the strength safety factor.

void	SetStressCriterion (NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::StressCriterionEnum stressCriterion)
	Sets the stress criterion.

void	SetStressType (NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::StressTypeEnum stressType)
	Sets the stress type.

bool	StrengthSafetyFactor ()
	Returns the strength safety factor.

NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::StressCriterionEnum	StressCriterion ()
	Returns the stress criterion.

NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::StressTypeEnum	StressType ()
	Returns the stress type.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a builder class for the event strength settings.

   The event strength settings are the data which describe how to evaluate
   the strength and what to output for strength results.
<br> To create a new instance of this class, use @link CAE::DurabilityStrengthCollection::CreateEventstrengthsettingsBuilder  CAE::DurabilityStrengthCollection::CreateEventstrengthsettingsBuilder @endlink  <br>

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::OrthotropicFailureCriterionEnum

the orthotropic Failure criterion enum.

Enumerator:

OrthotropicFailureCriterionEnumHill	Hill.
OrthotropicFailureCriterionEnumHoffman	Hoffman.
OrthotropicFailureCriterionEnumTsaiWu	Tsai-Wu.
OrthotropicFailureCriterionEnumMaximumStress	Maximum Stress.

enum NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::StressCriterionEnum

the stress criterion enum.

Enumerator:

StressCriterionEnumUltimateStress	Ultimate Stress.
StressCriterionEnumYieldStress	Yield Stress.

enum NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::StressTypeEnum

the stress type enum.

Enumerator:

StressTypeEnumVonMises	Von Mises.
StressTypeEnumTresca	Tresca.
StressTypeEnumMaximumPrincipal	Maximum Principal.
StressTypeEnumMinimumPrincipal	Minimum Principal.

Member Function Documentation

double NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::FactorOfSafety ( )

Returns the factor of safety.

Created in NX7.5.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::MarginOfSafety ( )

Returns the margin of safety.

Created in NX7.5.0.

License requirements : None

NXString NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::Name ( )

Returns the name.

Created in NX8.5.0.

License requirements : None

NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::OrthotropicFailureCriterionEnum NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::OrthotropicFailureCriterion ( )

Returns the orthotropic failure criterion.

Created in NX9.0.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::PerformOrthotropicAnalysis ( )

Returns the perform orthotropic analysis.

Created in NX9.0.0.

License requirements : None

void NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::SetFactorOfSafety ( double factorOfSafety )

Sets the factor of safety.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

factorOfSafety factorofsafety

void NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::SetMarginOfSafety ( bool marginOfSafety )

Sets the margin of safety.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

marginOfSafety marginofsafety

void NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::SetName ( const NXString & title )

Sets the name.

Created in NX8.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

title title

void NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::SetName ( const char * title )

Sets the name.

Created in NX8.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

title title

void NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::SetOrthotropicFailureCriterion ( NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::OrthotropicFailureCriterionEnum orthotropicFailureCriterion )

Sets the orthotropic failure criterion.

Created in NX9.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

orthotropicFailureCriterion orthotropicfailurecriterion

void NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::SetPerformOrthotropicAnalysis ( bool performOrthotropicAnalysis )

Sets the perform orthotropic analysis.

Created in NX9.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

performOrthotropicAnalysis performorthotropicanalysis

void NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::SetStrengthSafetyFactor ( bool strengthSafetyFactor )

Sets the strength safety factor.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

strengthSafetyFactor strengthsafetyfactor

void NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::SetStressCriterion ( NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::StressCriterionEnum stressCriterion )

Sets the stress criterion.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

stressCriterion stresscriterion

void NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::SetStressType ( NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::StressTypeEnum stressType )

Sets the stress type.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

stressType stresstype

bool NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::StrengthSafetyFactor ( )

Returns the strength safety factor.

Created in NX7.5.0.

License requirements : None

NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::StressCriterionEnum NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::StressCriterion ( )

Returns the stress criterion.

Created in NX7.5.0.

License requirements : None

NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::StressTypeEnum NXOpen::CAE::DurabilityEventStrengthSettingsBuilder::StressType ( )

Returns the stress type.

Created in NX7.5.0.

License requirements : None

The documentation for this class was generated from the following file:

CAE_DurabilityEventStrengthSettingsBuilder.hxx
