Represents a builder class for the event fatigue settings. More...

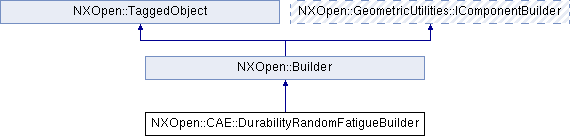

Inheritance diagram for NXOpen::CAE::DurabilityRandomFatigueBuilder:

Public Types
enum	RandomFatigueMethodEnum { RandomFatigueMethodEnumNarrowBandMiles, RandomFatigueMethodEnumWideBandDirlik }
	the random method. More...

Public Member Functions
bool	EventDamage ()
	Returns the event damage.

bool	EventLife ()
	Returns the event life.

NXString	Name ()
	Returns the name.

NXOpen::Expression *	RandomEventDuration ()
	Returns the random event duration.

NXOpen::CAE::DurabilityRandomFatigueBuilder::RandomFatigueMethodEnum	RandomFatigueMethod ()
	Returns the random fatigue method.

void	SetEventDamage (bool eventDamage)
	Sets the event damage.

void	SetEventLife (bool eventLife)
	Sets the event life.

void	SetName (const NXString &title)
	Sets the name.

void	SetName (const char *title)
	Sets the name.

void	SetRandomFatigueMethod (NXOpen::CAE::DurabilityRandomFatigueBuilder::RandomFatigueMethodEnum numberOfElementsInHysterisisLoop)
	Sets the random fatigue method.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a builder class for the event fatigue settings.

   The fatigue settings help the user control the fatigue/durability
   parameters in the event. <br> To create a new instance of this class, use @link CAE::DurabilityRandomFatigueCollection::CreateRandomfatigueBuilder  CAE::DurabilityRandomFatigueCollection::CreateRandomfatigueBuilder @endlink  <br>

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::CAE::DurabilityRandomFatigueBuilder::RandomFatigueMethodEnum

the random method.

Enumerator:

RandomFatigueMethodEnumNarrowBandMiles	NarrowBandMiles.
RandomFatigueMethodEnumWideBandDirlik	WideBandDirlik.

Member Function Documentation

bool NXOpen::CAE::DurabilityRandomFatigueBuilder::EventDamage ( )

Returns the event damage.

Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::DurabilityRandomFatigueBuilder::EventLife ( )

Returns the event life.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::CAE::DurabilityRandomFatigueBuilder::Name ( )

Returns the name.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::CAE::DurabilityRandomFatigueBuilder::RandomEventDuration ( )

Returns the random event duration.

Created in NX8.5.0.

License requirements : None

NXOpen::CAE::DurabilityRandomFatigueBuilder::RandomFatigueMethodEnum NXOpen::CAE::DurabilityRandomFatigueBuilder::RandomFatigueMethod ( )

Returns the random fatigue method.

Created in NX8.5.0.

License requirements : None

void NXOpen::CAE::DurabilityRandomFatigueBuilder::SetEventDamage ( bool eventDamage )

Sets the event damage.
