Represents a CAE::CfdLocalResolutionConstraint builder
To create a new instance of this class, use CAE::CfdLocalResolutionConstraintCollection::CreateBuilder

Created in NX9.0.0. More...

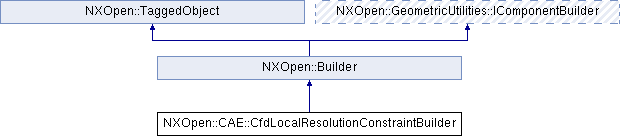

Inheritance diagram for NXOpen::CAE::CfdLocalResolutionConstraintBuilder:

Public Types
enum	LocalSubdivisions { LocalSubdivisionsZero, LocalSubdivisionsOne, LocalSubdivisionsTwo, LocalSubdivisionsThree, LocalSubdivisionsFour, LocalSubdivisionsFive }
	The local subdivision. More...

enum	Priority { PriorityLow, PriorityMedium, PriorityHigh }
	The priority level. More...

enum	ResolutionDensity { ResolutionDensitySizeonObjects, ResolutionDensitySizeinBoundingBox, ResolutionDensitySizeinBoundingSphere }
	The Resolution density type. More...

enum	Sizing { SizingRelativeRefinement, SizingRelativeCoarsening, SizingAbsolute }
	The sizing option. More...

Public Member Functions
NXOpen::Point *	BboxPoint ()
	Returns the bbox point Created in NX9.0.0.

NXOpen::Expression *	BsphereRadius ()
	Returns the bsphere radius Created in NX9.0.0.

NXOpen::Expression *	LocalResolution ()
	Returns the local resolution Created in NX9.0.0.

NXOpen::CAE::CfdLocalResolutionConstraintBuilder::LocalSubdivisions	LocalSubdivision ()
	Returns the local subdivision Created in NX9.0.0.

NXString	NameString ()
	Returns the name string Created in NX9.0.0.

NXOpen::Point *	PointSelection ()
	Returns the point selection Created in NX9.0.0.

NXOpen::CAE::CfdLocalResolutionConstraintBuilder::Priority	PriorityLevel ()
	Returns the priority level Created in NX9.0.0.

NXOpen::CAE::CfdLocalResolutionConstraintBuilder::ResolutionDensity	ResolutionDensityType ()
	Returns the resolution density type Created in NX9.0.0.

NXOpen::SelectDisplayableObjectList *	SelectObject ()
	Returns the select object Created in NX9.0.0.

void	SetBboxPoint (NXOpen::Point *bboxPoint)
	Sets the bbox point Created in NX9.0.0.

void	SetLocalSubdivision (NXOpen::CAE::CfdLocalResolutionConstraintBuilder::LocalSubdivisions localSubdivision)
	Sets the local subdivision Created in NX9.0.0.

void	SetNameString (const NXString &nameString)
	Sets the name string Created in NX9.0.0.

void	SetNameString (const char *nameString)
	Sets the name string Created in NX9.0.0.

void	SetPointSelection (NXOpen::Point *pointSelection)
	Sets the point selection Created in NX9.0.0.

void	SetPriorityLevel (NXOpen::CAE::CfdLocalResolutionConstraintBuilder::Priority priorityLevel)
	Sets the priority level Created in NX9.0.0.

void	SetResolutionDensityType (NXOpen::CAE::CfdLocalResolutionConstraintBuilder::ResolutionDensity resolutionDensityType)
	Sets the resolution density type Created in NX9.0.0.

void	SetSizingOption (NXOpen::CAE::CfdLocalResolutionConstraintBuilder::Sizing sizingOption)
	Sets the sizing option Created in NX9.0.0.

NXOpen::CAE::CfdLocalResolutionConstraintBuilder::Sizing	SizingOption ()
	Returns the sizing option Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::CfdLocalResolutionConstraint builder
To create a new instance of this class, use CAE::CfdLocalResolutionConstraintCollection::CreateBuilder

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::CfdLocalResolutionConstraintBuilder::LocalSubdivisions

The local subdivision.

Enumerator:

LocalSubdivisionsZero	zero
LocalSubdivisionsOne	one
LocalSubdivisionsTwo	two
LocalSubdivisionsThree	three
LocalSubdivisionsFour	four
LocalSubdivisionsFive	five

enum NXOpen::CAE::CfdLocalResolutionConstraintBuilder::Priority

The priority level.

Enumerator:

PriorityLow	low
PriorityMedium	medium
PriorityHigh	high

enum NXOpen::CAE::CfdLocalResolutionConstraintBuilder::ResolutionDensity

The Resolution density type.

Enumerator:

ResolutionDensitySizeonObjects	sizeon objects
ResolutionDensitySizeinBoundingBox	sizein bounding box
ResolutionDensitySizeinBoundingSphere	sizein bounding sphere

enum NXOpen::CAE::CfdLocalResolutionConstraintBuilder::Sizing

The sizing option.

Enumerator:

SizingRelativeRefinement	relative refinement
SizingRelativeCoarsening	relative coarsening
SizingAbsolute	absolute

Member Function Documentation

NXOpen::Point* NXOpen::CAE::CfdLocalResolutionConstraintBuilder::BboxPoint ( )

Returns the bbox point
Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::CAE::CfdLocalResolutionConstraintBuilder::BsphereRadius ( )

Returns the bsphere radius
Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::CAE::CfdLocalResolutionConstraintBuilder::LocalResolution ( )

Returns the local resolution
Created in NX9.0.0.

License requirements : None

NXOpen::CAE::CfdLocalResolutionConstraintBuilder::LocalSubdivisions NXOpen::CAE::CfdLocalResolutionConstraintBuilder::LocalSubdivision ( )

Returns the local subdivision
Created in NX9.0.0.

License requirements : None

NXString NXOpen::CAE::CfdLocalResolutionConstraintBuilder::NameString ( )

Returns the name string
Created in NX9.0.0.

License requirements : None

NXOpen::Point* NXOpen::CAE::CfdLocalResolutionConstraintBuilder::PointSelection ( )

Returns the point selection
Created in NX9.0.0.

License requirements : None

NXOpen::CAE::CfdLocalResolutionConstraintBuilder::Priority NXOpen::CAE::CfdLocalResolutionConstraintBuilder::PriorityLevel ( )

Returns the priority level
Created in NX9.0.0.

License requirements : None

NXOpen::CAE::CfdLocalResolutionConstraintBuilder::ResolutionDensity NXOpen::CAE::CfdLocalResolutionConstraintBuilder::ResolutionDensityType ( )

Returns the resolution density type
Created in NX9.0.0.

License requirements : None

NXOpen::SelectDisplayableObjectList* NXOpen::CAE::CfdLocalResolutionConstraintBuilder::SelectObject ( )

Returns the select object
Created in NX9.0.0.

License requirements : None

void NXOpen::CAE::CfdLocalResolutionConstraintBuilder::SetBboxPoint ( NXOpen::Point * bboxPoint )

Sets the bbox point
Created in NX9.0.0.
