Represents a Annotations::TableStyleBuilder . More...
Public Member Functions | |
| NXOpen::Annotations::BendTableSettingsBuilder * | BendTable () |
| Returns the Bend table settings builder Created in NX9.0.0. | |
| NXOpen::Annotations::HoleTableSettingsContentBuilder * | HoleTableContent () |
| Returns the Hole table settings content builder Created in NX9.0.0. | |
| NXOpen::Annotations::HoleTableSettingsFormatBuilder * | HoleTableFormat () |
| Returns the Hole table settings format builder Created in NX9.0.0. | |
| NXOpen::Annotations::HoleTableSettingsHoleFiltersBuilder * | HoleTableHoleFilters () |
| Returns the Hole table settings hole filters builder Created in NX9.0.0. | |
| NXOpen::Annotations::HoleTableSettingsLabelBuilder * | HoleTableLabel () |
| Returns the Hole table settings label builder Created in NX9.0.0. | |
| NXOpen::Annotations::HoleTableSettingsWorkflowBuilder * | HoleTableWorkflow () |
| Returns the Hole table settings workflow builder Created in NX9.0.0. | |
| NXOpen::Annotations::TableCellStyleBuilder * | TableCellStyle () |
| Returns the cell style builder Created in NX6.0.0. | |
| NXOpen::Annotations::TableSectionStyleBuilder * | TableSectionStyle () |
| Returns the section style builder Created in NX8.0.0. | |
| NXOpen::Annotations::TabularNoteStyleBuilder * | TabularNoteStyle () |
| Returns the tabular note style builder Created in NX8.0.0. | |

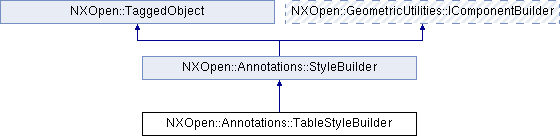

 Public Member Functions inherited from NXOpen::Annotations::StyleBuilder | |
| NXOpen::Annotations::DimensionStyleBuilder * | DimensionStyle () |
| Returns the dimension style builder Created in NX6.0.0. | |
| NXOpen::Annotations::FrameBarStyleBuilder * | FrameBarStyle () |
| Returns the frame bar builder Created in NX8.0.0. | |
| NXOpen::Annotations::HatchStyleBuilder * | HatchStyle () |
| Returns the hatch style builder Created in NX6.0.0. | |
| NXOpen::Annotations::HoleCalloutSettingsBuilder * | HoleCalloutSettings () |
| Returns the hole callout settings builder Created in NX9.0.0. | |
| void | InheritSettingsFromCustomerDefault () |
| Inherit Settings From Customer Default Created in NX9.0.0. | |
| void | InheritSettingsFromPreferences () |
| Inherit Settings From Preference Created in NX9.0.0. | |
| void | InheritSettingsFromSelectedObjects (NXOpen::DisplayableObject *selectedObject) |
| Inherit Settings From Selected Objects Created in NX9.0.0. | |
| NXOpen::Annotations::LetteringStyleBuilder * | LetteringStyle () |
| Returns the lettering style builder Created in NX6.0.0. | |
| NXOpen::Annotations::LineArrowStyleBuilder * | LineArrowStyle () |
| Returns the line/arrow style builder Created in NX6.0.0. | |
| NXOpen::Annotations::OrdinateStyleBuilder * | OrdinateStyle () |
| Returns the ordinate style builder Created in NX6.0.0. | |
| NXOpen::Annotations::RadialStyleBuilder * | RadialStyle () |
| Returns the radial style builder Created in NX6.0.0. | |
| NXOpen::Annotations::SymbolStyleBuilder * | SymbolStyle () |
| Returns the symbol style builder Created in NX6.0.0. | |
| NXOpen::Annotations::UnitsStyleBuilder * | UnitsStyle () |
| Returns the units style builder Created in NX6.0.0. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a Annotations::TableStyleBuilder .
This class is used to set Annotation preferences when creating or editing an annotation.
Created in NX8.0.0.
Member Function Documentation
| NXOpen::Annotations::BendTableSettingsBuilder* NXOpen::Annotations::TableStyleBuilder::BendTable | ( | ) |
Returns the Bend table settings builder
Created in NX9.0.0.
License requirements : None
| NXOpen::Annotations::HoleTableSettingsContentBuilder* NXOpen::Annotations::TableStyleBuilder::HoleTableContent | ( | ) |
Returns the Hole table settings content builder
Created in NX9.0.0.
License requirements : None
| NXOpen::Annotations::HoleTableSettingsFormatBuilder* NXOpen::Annotations::TableStyleBuilder::HoleTableFormat | ( | ) |
Returns the Hole table settings format builder
Created in NX9.0.0.
License requirements : None
| NXOpen::Annotations::HoleTableSettingsHoleFiltersBuilder* NXOpen::Annotations::TableStyleBuilder::HoleTableHoleFilters | ( | ) |
Returns the Hole table settings hole filters builder
Created in NX9.0.0.
License requirements : None
| NXOpen::Annotations::HoleTableSettingsLabelBuilder* NXOpen::Annotations::TableStyleBuilder::HoleTableLabel | ( | ) |
Returns the Hole table settings label builder
Created in NX9.0.0.
License requirements : None
| NXOpen::Annotations::HoleTableSettingsWorkflowBuilder* NXOpen::Annotations::TableStyleBuilder::HoleTableWorkflow | ( | ) |
Returns the Hole table settings workflow builder
Created in NX9.0.0.
License requirements : None
| NXOpen::Annotations::TableCellStyleBuilder* NXOpen::Annotations::TableStyleBuilder::TableCellStyle | ( | ) |
Returns the cell style builder
Created in NX6.0.0.
License requirements : None
| NXOpen::Annotations::TableSectionStyleBuilder* NXOpen::Annotations::TableStyleBuilder::TableSectionStyle | ( | ) |
Returns the section style builder
Created in NX8.0.0.
License requirements : None
| NXOpen::Annotations::TabularNoteStyleBuilder* NXOpen::Annotations::TableStyleBuilder::TabularNoteStyle | ( | ) |
Returns the tabular note style builder
Created in NX8.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Annotations_TableStyleBuilder.hxx
