Represents a Annotations::Dimension builder
To create a new instance of this class, use Annotations::DimensionCollection::CreatePmiRadialDimensionBuilder
Created in NX9.0.0.
More...

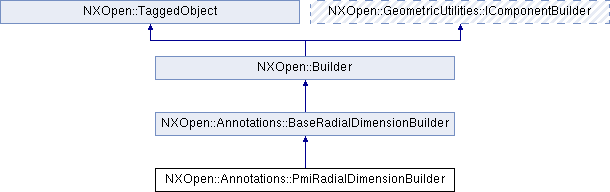

Inheritance diagram for NXOpen::Annotations::PmiRadialDimensionBuilder:
Public Member Functions | |
| NXOpen::Annotations::AssociatedObjectsBuilder * | AssociatedObjects () |
| Returns the associated objects Created in NX9.0.0. | |
 Public Member Functions inherited from NXOpen::Annotations::BaseRadialDimensionBuilder | |
| NXOpen::Annotations::AppendedTextBuilder * | AppendedText () |
| Returns the appended text Created in NX9.0.0. | |
| NXOpen::SelectNXObject * | FirstAssociativity () |
| Returns the first associativity. | |
| NXOpen::SelectDisplayableObject * | FoldLocation () |
| Returns the fold location Created in NX9.0.0. | |
| NXOpen::SelectDisplayableObject * | Inherit () |
| Returns the inherit Created in NX9.0.0. | |
| bool | IsFoldedRadius () |
| Returns the is folded radius Created in NX9.0.0. | |
| bool | IsHoleStyle () |
| Returns the is hole style dimension Created in NX9.0.0. | |
| bool | IsRadiusToCenter () |
| Returns the is radius to center Created in NX9.0.0. | |
| NXOpen::Annotations::DimensionMeasurementBuilder * | Measurement () |
| Returns the measurement Created in NX9.0.0. | |
| NXOpen::SelectDisplayableObject * | OffsetCenterPoint () |
| Returns the offset center point Created in NX9.0.0. | |
| NXOpen::Annotations::OriginBuilder * | Origin () |
| Returns the origin Created in NX9.0.0. | |
| void | SetFoldedRadius (bool isFoldedRadius) |
| Sets the is folded radius Created in NX9.0.0. | |
| void | SetHoleStyle (bool isArrowsOutDia) |
| Sets the is hole style dimension Created in NX9.0.0. | |
| void | SetRadiusToCenter (bool isRadiusToCenter) |
| Sets the is radius to center Created in NX9.0.0. | |
| NXOpen::Annotations::StyleBuilder * | Style () |
| Returns the style Created in NX9.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a Annotations::Dimension builder
To create a new instance of this class, use Annotations::DimensionCollection::CreatePmiRadialDimensionBuilder
Created in NX9.0.0.
Member Function Documentation
| NXOpen::Annotations::AssociatedObjectsBuilder* NXOpen::Annotations::PmiRadialDimensionBuilder::AssociatedObjects | ( | ) |
Returns the associated objects
Created in NX9.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Annotations_PmiRadialDimensionBuilder.hxx
