datum feature symbol builder
To create a new instance of this class, use Annotations::GdtDatumCollection::CreatePmiDatumFeatureSymbolBuilder
Created in NX6.0.0.
More...

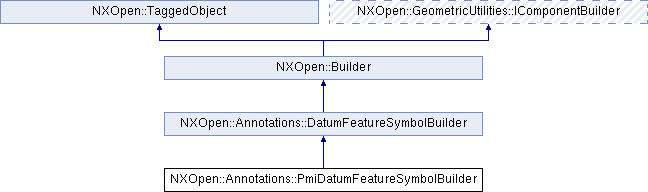

Inheritance diagram for NXOpen::Annotations::PmiDatumFeatureSymbolBuilder:
Public Member Functions | |
| NXOpen::Annotations::AssociatedObjectsBuilder * | AssociatedObjects () |
| Returns the datum feature associated object Created in NX6.0.0. | |
 Public Member Functions inherited from NXOpen::Annotations::DatumFeatureSymbolBuilder | |
| void | InheritFrom (NXOpen::Annotations::BaseDatum *inheritTag) |
| The datum feature symbol is inherited form the given datum feature symbol. | |
| NXOpen::Annotations::LeaderBuilder * | Leader () |
| Returns the Annotations::LeaderBuilder for the annotation Created in NX6.0.0. | |
| NXString | Letter () |
| Returns the datum feature string Created in NX6.0.0. | |
| NXOpen::Annotations::OriginBuilder * | Origin () |
| Returns the datum feature symbol origin Created in NX6.0.0. | |
| void | SetLetter (const NXString &datumFeatureLetter) |
| Sets the datum feature string Created in NX6.0.0. | |
| void | SetLetter (const char *datumFeatureLetter) |
| Sets the datum feature string Created in NX6.0.0. | |
| NXOpen::Annotations::StyleBuilder * | Style () |
| Returns the datum feature style Created in NX6.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
datum feature symbol builder
To create a new instance of this class, use Annotations::GdtDatumCollection::CreatePmiDatumFeatureSymbolBuilder
Created in NX6.0.0.
Member Function Documentation
| NXOpen::Annotations::AssociatedObjectsBuilder* NXOpen::Annotations::PmiDatumFeatureSymbolBuilder::AssociatedObjects | ( | ) |
Returns the datum feature associated object
Created in NX6.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Annotations_PmiDatumFeatureSymbolBuilder.hxx
