NXOpen::Annotations::BaseDatum Class Reference

Represents a datum
This is an abstract class, and cannot be created. More...

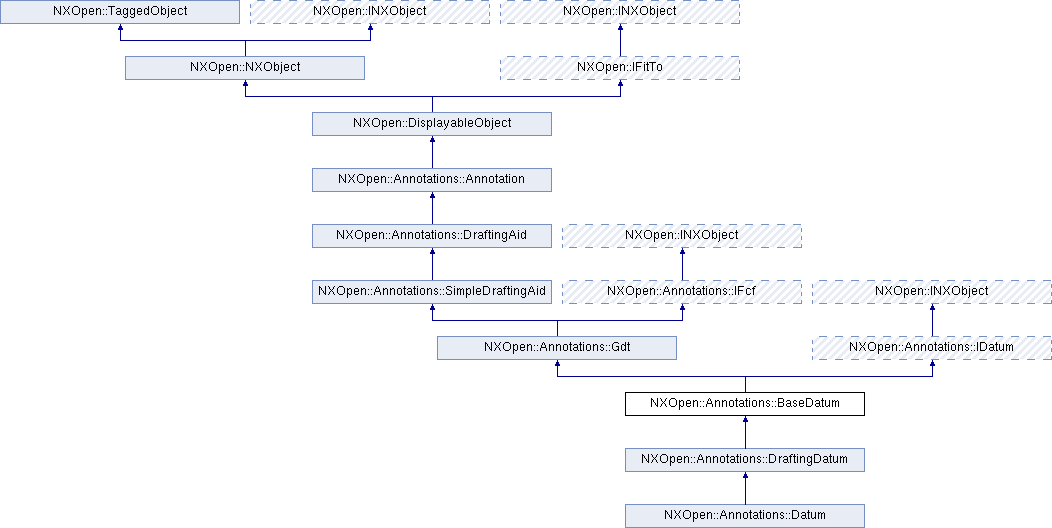

Inheritance diagram for NXOpen::Annotations::BaseDatum:

Public Member Functions
virtual NXString	Label ()
	Returns the label.
virtual void	SetLabel (const NXString &label)
	Sets the label.
void	SetLabel (const char *label)
	Sets the label.
Public Member Functions inherited from NXOpen::Annotations::Gdt
bool	CanChangeLeaderPositionParameter ()
	Returns a flag indicating whether the Annotations::Gdt::LeaderPositionParameter can be changed Created in NX3.0.0.
virtual NXOpen::Annotations::FcfFrameData *	GetFcfFrameData ()
	Returns the single FCF frames data.
virtual std::vector < NXOpen::Annotations::FcfFrameData * >	GetFcfFrameDataArray ()
	Returns the multiple FCF frames data.
bool	HasLeaderPositionParameter ()
	Returns a flag indicating whether this GDT has a leader position parameter.
bool	HasStubbedDatumStyle ()
	Returns a flag indicating whether the leader has a stubbed datum style.
double	LeaderPositionParameter ()
	Returns a parameter which indicates where the leader end point is located on the object that it is attached to.
virtual void	SetFcfFrameData (NXOpen::Annotations::FcfFrameData *data)
	Sets the single FCF frames data.
virtual void	SetFcfFrameData (const std::vector< NXOpen::Annotations::FcfFrameData * > &fcfFrameData)
	Sets the multiple FCF frames data.
void	SetHasStubbedDatumStyle (bool stubbed)
	Sets a flag indicating whether the leader has a stubbed datum style.
void	SetLeaderPositionParameter (double param)
	Sets a parameter which indicates where the leader end point is located on the object that it is attached to.
void	SetSymbolCfw (const NXOpen::Annotations::LineCfw &cfw)
	Sets the symbol color, font, and width.
Public Member Functions inherited from NXOpen::Annotations::SimpleDraftingAid
std::vector< NXString >	GetText ()
	Returns the drafting aid's text.
NXOpen::Annotations::UserSymbolPreferences *	GetUserSymbolPreferences ()
	Returns the user symbol preferences.
void	GetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType *sizeType, double *lengthOrScale, double *heightOrAspectRatio)
	Gets the user symbol size Created in NX3.0.0.
void	SetText (std::vector< NXString > &lines)
	Sets the drafting aid's text.
void	SetUserSymbolPreferences (NXOpen::Annotations::UserSymbolPreferences *usymPrefs)
	Sets the user symbol preferences.
void	SetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType sizeType, double lengthOrScale, double heightOrAspectRatio)
	Sets the user symbol size.
Public Member Functions inherited from NXOpen::Annotations::IDatum
void	SetLabel (const char *label)
	Sets the label.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...

Detailed Description

Represents a datum
This is an abstract class, and cannot be created.

Created in NX7.5.0.

Member Function Documentation

virtual NXString NXOpen::Annotations::BaseDatum::Label ( )

virtual

Returns the label.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::IDatum.

virtual void NXOpen::Annotations::BaseDatum::SetLabel ( const NXString &  label )

virtual

Sets the label.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

label

New datum label

Implements NXOpen::Annotations::IDatum.

void NXOpen::Annotations::BaseDatum::SetLabel

(

const char *

label

)

Sets the label.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

label

New datum label

---

The documentation for this class was generated from the following file:

• Annotations_BaseDatum.hxx
