NXOpen::Annotations::BaseSurfaceFinishBuilder Class Reference

Represents a Annotations::BaseSurfaceFinish builder
This is an abstract class, and cannot be instantiated. More...

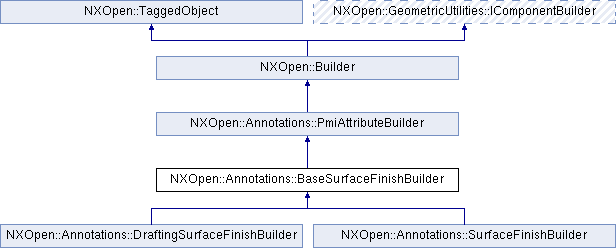

Inheritance diagram for NXOpen::Annotations::BaseSurfaceFinishBuilder:

Public Types
enum	ParanthesesType { ParanthesesTypeNone, ParanthesesTypeLeft, ParanthesesTypeRight, ParanthesesTypeBoth }
	Represents the valid parantheses types. More...
enum	ParenthesesType { ParenthesesTypeNone, ParenthesesTypeLeft, ParenthesesTypeRight, ParenthesesTypeBoth }
	Represents the valid parentheses types. More...
enum	ToleranceOption {   ToleranceOptionNone, ToleranceOptionEqualBilateral, ToleranceOptionBilateral, ToleranceOptionUnilateralPlus,   ToleranceOptionUnilateralMinus, ToleranceOptionPlusLimitTwoLines, ToleranceOptionMinusLimitTwoLines, ToleranceOptionPlusLimitOneLine,   ToleranceOptionMinusLimitOneLine }
	Represents the valid surface finish tolerance types. More...

Additional Inherited Members
Public Member Functions inherited from NXOpen::Annotations::PmiAttributeBuilder
NXOpen::Annotations::AssociatedObjectsBuilder *	AssociatedObjects ()
	Returns the Annotations::AssociatedObjectsBuilder for the annotation Created in NX6.0.0.
NXOpen::Annotations::Pmi *	Attribute ()
	Returns the Annotations::Pmi for this annotation Created in NX6.0.0.
NXOpen::NXObject *	BusinessModifier ()
	Returns the business modifier Created in NX6.0.0.
std::vector< NXOpen::NXObject * >	GetAttributeValues ()
	Returns the attribute values.
NXString	KnowledgeFusionClassName ()
	Returns the knowledge fusion class name file, the default class is UG provided pmi KF class Created in NX6.0.0.
NXOpen::Annotations::LeaderBuilder *	Leader ()
	Returns the Annotations::LeaderBuilder for the annotation Created in NX6.0.0.
NXOpen::Annotations::OriginBuilder *	Origin ()
	Returns the Annotations::OriginBuilder for the annotation Created in NX6.0.0.
void	SetAttribute (NXOpen::Annotations::Pmi *attribute)
	Sets the Annotations::Pmi for this annotation Created in NX6.0.0.
void	SetAttributeValues (const std::vector< NXOpen::NXObject * > &attributeValues)
	Sets the attribute values Created in NX6.0.0.
void	SetBusinessModifier (NXOpen::NXObject *businessModifier)
	Sets the business modifier Created in NX6.0.0.
void	SetKnowledgeFusionClassName (const NXString &knowledgeFusionClassName)
	Sets the knowledge fusion class name file, the default class is UG provided pmi KF class Created in NX6.0.0.
void	SetKnowledgeFusionClassName (const char *knowledgeFusionClassName)
	Sets the knowledge fusion class name file, the default class is UG provided pmi KF class Created in NX6.0.0.
NXOpen::Annotations::StyleBuilder *	Style ()
	Returns the Annotations::StyleBuilder for the annotation Created in NX6.0.0.

Detailed Description

Represents a Annotations::BaseSurfaceFinish builder
This is an abstract class, and cannot be instantiated.

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::Annotations::BaseSurfaceFinishBuilder::ParanthesesType

Represents the valid parantheses types.

This enum is deprecated.

Deprecated:

Deprecated in NX8.0.0. Use Annotations::BaseSurfaceFinishBuilder::ParenthesesType instead.

Enumerator:

ParanthesesTypeNone	None.
ParanthesesTypeLeft	Left.
ParanthesesTypeRight	Right.
ParanthesesTypeBoth	Both.

enum NXOpen::Annotations::BaseSurfaceFinishBuilder::ParenthesesType

Represents the valid parentheses types.

Enumerator:

ParenthesesTypeNone	None.
ParenthesesTypeLeft	Left.
ParenthesesTypeRight	Right.
ParenthesesTypeBoth	Both.

enum NXOpen::Annotations::BaseSurfaceFinishBuilder::ToleranceOption

Represents the valid surface finish tolerance types.

Enumerator:

ToleranceOptionNone	No tolerance.
ToleranceOptionEqualBilateral	Equal bilateral.
ToleranceOptionBilateral	Bilateral.
ToleranceOptionUnilateralPlus	Unilateral plus.
ToleranceOptionUnilateralMinus	Unilateral minus.
ToleranceOptionPlusLimitTwoLines	Plus limit two lines.
ToleranceOptionMinusLimitTwoLines	Minus limit two lines.
ToleranceOptionPlusLimitOneLine	Plus limit one line.
ToleranceOptionMinusLimitOneLine	Minus limit one line.

---

The documentation for this class was generated from the following file:

• Annotations_BaseSurfaceFinishBuilder.hxx
