NXOpen::Annotations::BaseSurfaceFinish Class Reference

Represents a Base Surface Finish
This is an abstract class, and cannot be instantiated. More...

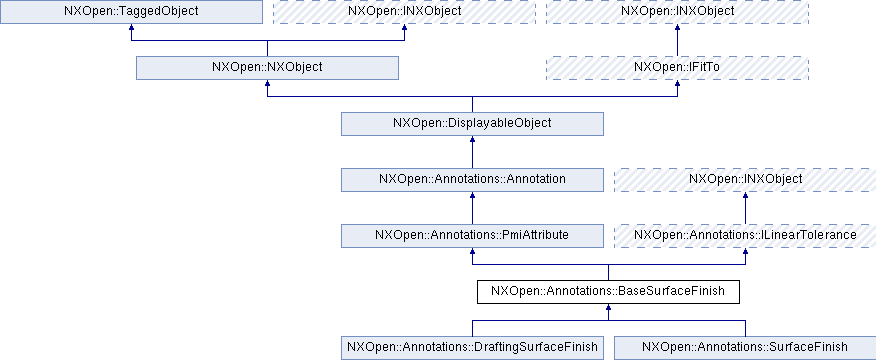

Inheritance diagram for NXOpen::Annotations::BaseSurfaceFinish:

Public Member Functions
bool	GetInvertSymbol ()
	Return the invert symbol flag for symbol having flag type leader.
virtual NXOpen::Annotations::LinearTolerance *	GetTolerance ()
	Returns the tolerance.
NXOpen::Annotations::UnitsFormatPreferences *	GetUnitsFormatPrefs ()
	Returns the unit format preferences.
void	SetInvertSymbol (bool invertSymbol)
	Set the invert symbol flag for symbol having flag type leader.
virtual void	SetTolerance (NXOpen::Annotations::LinearTolerance *tolerance)
	Sets the tolerance.
void	SetUnitsFormatPrefs (NXOpen::Annotations::UnitsFormatPreferences *unitsFormat)
	Sets the unit format preferences.

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...

Detailed Description

Represents a Base Surface Finish
This is an abstract class, and cannot be instantiated.

Created in NX7.5.0.

Member Function Documentation

bool NXOpen::Annotations::BaseSurfaceFinish::GetInvertSymbol

(

)

Return the invert symbol flag for symbol having flag type leader.

Returns

Created in NX7.5.2.

License requirements : None

virtual NXOpen::Annotations::LinearTolerance* NXOpen::Annotations::BaseSurfaceFinish::GetTolerance ( )

virtual

Returns the tolerance.

Returns

Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::ILinearTolerance.

NXOpen::Annotations::UnitsFormatPreferences* NXOpen::Annotations::BaseSurfaceFinish::GetUnitsFormatPrefs

(

)

Returns the unit format preferences.

Returns

Created in NX7.5.0.

License requirements : None

void NXOpen::Annotations::BaseSurfaceFinish::SetInvertSymbol

(

bool

invertSymbol

)

Set the invert symbol flag for symbol having flag type leader.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX7.5.2.

License requirements : drafting ("DRAFTING")

Parameters

invertSymbol

invertsymbol

virtual void NXOpen::Annotations::BaseSurfaceFinish::SetTolerance ( NXOpen::Annotations::LinearTolerance *  tolerance )

virtual

Sets the tolerance.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")

Parameters

tolerance

tolerance

Implements NXOpen::Annotations::ILinearTolerance.

void NXOpen::Annotations::BaseSurfaceFinish::SetUnitsFormatPrefs

(

NXOpen::Annotations::UnitsFormatPreferences *

unitsFormat

)

Sets the unit format preferences.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX7.5.0.

License requirements : drafting ("DRAFTING")

Parameters

unitsFormat

unitsformat

---

The documentation for this class was generated from the following file:

• Annotations_BaseSurfaceFinish.hxx
