NXOpen::Annotations::ILinearTolerance Class Reference

Represents an object that has linear tolerance
Created in NX4.0.0. More...

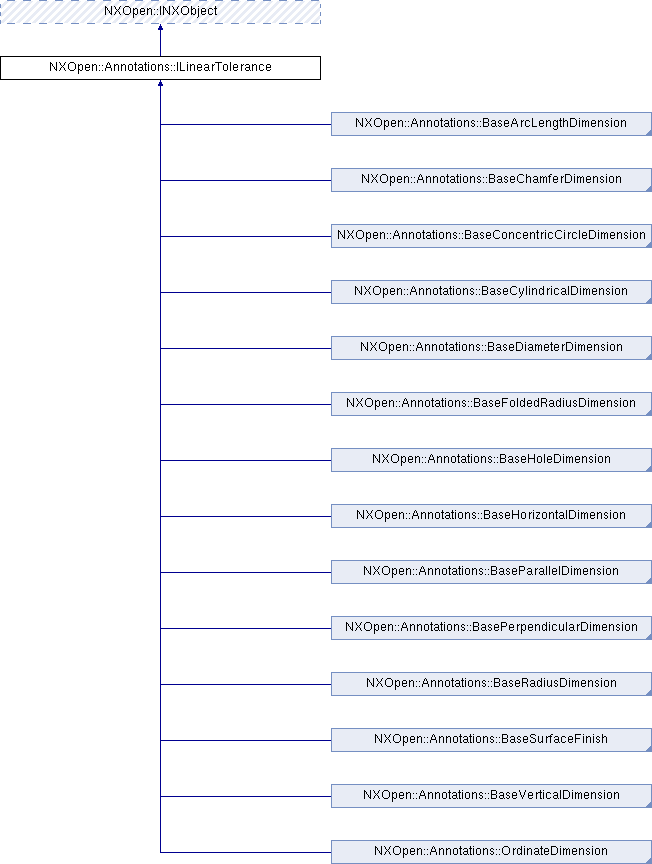

Inheritance diagram for NXOpen::Annotations::ILinearTolerance:

Public Member Functions
virtual NXOpen::Annotations::LinearTolerance *	GetTolerance ()=0
	Returns the tolerance.
virtual void	SetTolerance (NXOpen::Annotations::LinearTolerance *tolerance)=0
	Sets the tolerance.
Public Member Functions inherited from NXOpen::INXObject
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)=0
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
virtual bool	IsOccurrence ()=0
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()=0
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()=0
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()=0
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()=0
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()=0
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()=0
	Returns the prototype of this object if it is an occurrence.
virtual void	SetName (const NXString &name)=0
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents an object that has linear tolerance
Created in NX4.0.0.

Member Function Documentation

virtual NXOpen::Annotations::LinearTolerance* NXOpen::Annotations::ILinearTolerance::GetTolerance ( )

pure virtual

Returns the tolerance.

Returns

Created in NX4.0.0.

License requirements : None

Implemented in NXOpen::Annotations::OrdinateDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseSurfaceFinish, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, and NXOpen::Annotations::BasePerpendicularDimension.

virtual void NXOpen::Annotations::ILinearTolerance::SetTolerance ( NXOpen::Annotations::LinearTolerance *  tolerance )

pure virtual

Sets the tolerance.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")

Parameters

tolerance

tolerance

Implemented in NXOpen::Annotations::OrdinateDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseSurfaceFinish, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, and NXOpen::Annotations::BasePerpendicularDimension.

---

The documentation for this class was generated from the following file:

• Annotations_ILinearTolerance.hxx
