Represents a SurfaceContour Builder
To create a new instance of this class, use CAM::OperationCollection::CreateSurfaceContourBuilder

Created in NX5.0.0. More...

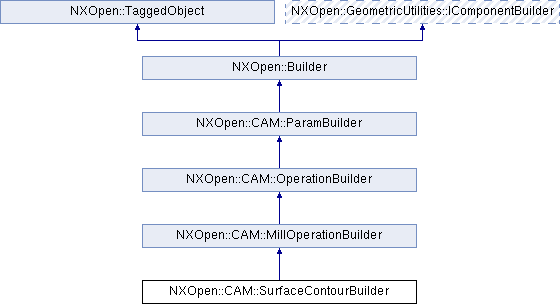

Inheritance diagram for NXOpen::CAM::SurfaceContourBuilder:

Public Types
enum	AccessVectorMethodType { AccessVectorMethodTypeZm, AccessVectorMethodTypeNegZm, AccessVectorMethodTypeSpecify }
	Available types for access vector for the contour profile method of surface milling. More...

enum	CleanupTypes { CleanupTypesOff, CleanupTypesUncutValley, CleanupTypesSteepArea, CleanupTypesBoth, CleanupTypesFlowcutContacts, CleanupTypesFlowcutToolend, CleanupTypesFlowcutBoth }
	Available types for cleanup. More...

enum	DriveMethodTypes { DriveMethodTypesUndef, DriveMethodTypesCurve, DriveMethodTypesSpiral, DriveMethodTypesBoundary, DriveMethodTypesAreaMilling, DriveMethodTypesSurfaceArea, DriveMethodTypesInterpolatedToolPath, DriveMethodTypesToolPath, DriveMethodTypesRadialCut, DriveMethodTypesContourProfile, DriveMethodTypesFlowCut, DriveMethodTypesText, DriveMethodTypesUserDefined, DriveMethodTypesBladeRough, DriveMethodTypesBladeFinish, DriveMethodTypesHubFinish, DriveMethodTypesBlendFinish, DriveMethodTypesEdgeFinish, DriveMethodTypesRotaryFloorFinish, DriveMethodTypesTotal }
	Available types for Drive Method. More...

Public Member Functions
NXOpen::CAM::SurfaceContourBuilder::AccessVectorMethodType	AccessVectorMethod ()
	Returns the Access Vector Method Created in NX5.0.0.

bool	AutomaticAuxiliaryFloor ()
	Returns the Automatic Auxiliary Floor Created in NX5.0.0.

double	AutomaticAuxiliaryFloorDistance ()
	Returns the Automatic Auxiliary Floor Distance Created in NX6.0.0.

NXOpen::CAM::Geometry *	AuxiliaryFloorGeometry ()
	返回辅助楼层几何生成器 Created in NX8.0.0.

NXOpen::CAM::BladeFinish *	BladeFinish ()
	Returns the Blade Finish Drive Method builder Created in NX7.5.0.

NXOpen::CAM::BladeRough *	BladeRough ()
	Returns the Blade Rough Drive Method builder Created in NX7.0.0.

NXOpen::CAM::BlendFinish *	BlendFinish ()
	Returns the Blend Finish Drive Method builder Created in NX7.5.0.

NXOpen::CAM::Geometry *	CheckGeometry ()
	Returns the check geometry builder Created in NX8.0.0.

bool	CheckToolAboveBall ()
	Returns a bool to check tool above ball Created in NX9.0.0.

NXOpen::CAM::SurfaceContourBuilder::CleanupTypes	CleanupType ()
	Returns the cleanup type Created in NX6.0.0.

NXOpen::CAM::Geometry *	CutAreaGeometry ()
	Returns the cut area geometry builder Created in NX8.0.0.

NXOpen::CAM::BladeCutLevels *	CutLevels ()
	Returns the cut levels builder Created in NX7.0.0.

NXOpen::CAM::DmAmBuilder *	DmareaMillingBuilder ()
	Returns the Area Milling Drive Method builder Created in NX5.0.0.

NXOpen::CAM::DmBndBuilder *	DmboundaryBuilder ()
	Returns the Boundary Drive Method builder Created in NX5.0.0.

NXOpen::CAM::DmCmBuilder *	DmCmBuilder ()
	Returns the Contour Profile Drive Method builder Created in NX5.0.0.

NXOpen::CAM::DmCurveBuilder *	DmcurveBuilder ()
	Returns the Curve Drive Method builder Created in NX5.0.0.

NXOpen::CAM::DmRadBuilder *	DmradBuilder ()
	Returns the Radial Cut Drive Method builder Created in NX5.0.0.

NXOpen::CAM::DmSpiralBuilder *	DmSpiralBuilder ()
	Returns the Spiral Drive Method builder Created in NX5.0.0.

NXOpen::CAM::DmSurfBuilder *	DmSurfBuilder ()
	Returns the Surface Area Drive Method builder Created in NX5.0.0.

NXOpen::CAM::DmTpBuilder *	DmtpBuilder ()
	Returns the Tool Path Drive Method builder Created in NX5.0.0.

NXOpen::CAM::EdgeFinish *	EdgeFinish ()
	Returns the Edge Finish Drive Method builder Created in NX7.5.0.

NXOpen::CAM::FlowBuilder *	FlowBuilder ()
	Returns the Flow Cut Drive Method builder Created in NX5.0.0.

NXOpen::CAM::SurfaceContourBuilder::DriveMethodTypes	GetDriveMethod ()
	Get drive method.

NXOpen::CAM::HubFinish *	HubFinish ()
	Returns the Hub Finish Drive Method builder Created in NX7.5.0.

NXOpen::CAM::NcmScBuilder *	NonCuttingBuilder ()
	Returns the non-cutting moves builder Created in NX5.0.0.

NXOpen::CAM::InheritableIntBuilder *	NumberOfBlades ()
	Returns the number of blades Created in NX7.5.0.

NXOpen::CAM::Geometry *	PartGeometry ()
	Returns the part geometry builder Created in NX8.0.0.

NXOpen::CAM::ProjVecCiBuilder *	ProjectionVector ()
	Returns the Projection Vector builder (block) Created in NX5.0.0.

NXOpen::CAM::DmRotaryFloorFinishBuilder *	RotaryFloorFinishBuilder ()
	Returns the rotary floor finish builder.

void	SetAccessVectorMethod (NXOpen::CAM::SurfaceContourBuilder::AccessVectorMethodType accessVectorMethod)
	Sets the Access Vector Method Created in NX5.0.0.

void	SetAutomaticAuxiliaryFloor (bool applyAutoAuxFloor)
	Sets the Automatic Auxiliary Floor Created in NX5.0.0.

void	SetAutomaticAuxiliaryFloorDistance (double auxFloorDis)
	Sets the Automatic Auxiliary Floor Distance Created in NX6.0.0.

void	SetCheckToolAboveBall (bool checkToolAboveBall)
	Sets a bool to check tool above ball Created in NX9.0.0.

void	SetCleanupType (NXOpen::CAM::SurfaceContourBuilder::CleanupTypes propValue)
	Sets the cleanup type Created in NX6.0.0.

void	SetDriveMethod (NXOpen::CAM::SurfaceContourBuilder::DriveMethodTypes driveMethod)
	Set drive method Created in NX5.0.0.

NXOpen::CAM::ToolAxisCiBuilder *	ToolAxis ()
	Returns the tool axis builder

NXOpen::CAM::ToolAxisAdvanced *	ToolAxisAdvanced ()
	Returns the tool axis advanced builder Created in NX7.0.0.

NXOpen::CAM::ToolAxisFixed *	ToolAxisFixed ()
	Returns the Tool Axis Fixed builder Created in NX7.5.0.

NXOpen::CAM::ToolAxisVariable *	ToolAxisVariable ()
	Returns the Tool Axis Variable builder Created in NX7.5.0.

NXOpen::CAM::Boundary *	TrimBoundary ()
	Returns the trim boundary Created in NX9.0.0.

NXOpen::CAM::DmUserExitCiBuilder *	UserExitCiBuilder ()
	Returns the CAM Exit name builder in User Defined Drive Method builder Created in NX5.0.0.

NXOpen::CAM::Geometry *	WallGeometry ()
	Returns the wall geometry builder Created in NX8.0.0.

Public Member Functions inherited from NXOpen::CAM::MillOperationBuilder
NXOpen::CAM::MillCutParameters *	CutParameters ()
	Returns the cut parameter object Created in NX6.0.0.

NXOpen::CAM::FeedsBuilder *	FeedsBuilder ()
	Returns the feeds and speeds builder Created in NX5.0.0.

NXOpen::CAM::InheritableToolDepBuilder *	MinCutLength ()
	Returns the min cut length builder (tool dependent double) Created in NX6.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutput ()
	Returns the motion output builder Created in NX6.0.0.

NXOpen::CAM::Tool *	ReferenceTool ()
	Returns the reference tool object Created in NX7.5.0.

void	SetReferenceTool (NXOpen::CAM::Tool *refTool)
	Sets the reference tool object Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a SurfaceContour Builder
To create a new instance of this class, use CAM::OperationCollection::CreateSurfaceContourBuilder

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::SurfaceContourBuilder::AccessVectorMethodType

Available types for access vector for the contour profile method of surface milling.

Enumerator:

AccessVectorMethodTypeZm	positive z-direction of MCS
AccessVectorMethodTypeNegZm	negative z-direction of MCS
AccessVectorMethodTypeSpecify	user specified

enum NXOpen::CAM::SurfaceContourBuilder::CleanupTypes

Available types for cleanup.

Enumerator:

CleanupTypesOff	off
CleanupTypesUncutValley	uncut valley
CleanupTypesSteepArea	steep area
CleanupTypesBoth	both
CleanupTypesFlowcutContacts	flowcut contacts
CleanupTypesFlowcutToolend	flowcut toolend
CleanupTypesFlowcutBoth	flowcut both

enum NXOpen::CAM::SurfaceContourBuilder::DriveMethodTypes

Available types for Drive Method.

Enumerator:

DriveMethodTypesUndef	Undefined.
DriveMethodTypesCurve	Curve/Point.
DriveMethodTypesSpiral	Spiral.
DriveMethodTypesBoundary	Boundary.
DriveMethodTypesAreaMilling	Area Milling.
DriveMethodTypesSurfaceArea	Surface Area.
DriveMethodTypesInterpolatedToolPath	Interpolated tool path.
DriveMethodTypesToolPath	Tool Path.
DriveMethodTypesRadialCut	Radial Cut.
DriveMethodTypesContourProfile	Contour Profile.
DriveMethodTypesFlowCut	Flow Cut.
DriveMethodTypesText	Text.
DriveMethodTypesUserDefined	User Function.
DriveMethodTypesBladeRough	Blade Rough.
DriveMethodTypesBladeFinish	Blade Finish.
DriveMethodTypesHubFinish	Hub Finish.
DriveMethodTypesBlendFinish	Blend Finish.
DriveMethodTypesEdgeFinish	Edge Finish.
DriveMethodTypesRotaryFloorFinish	Rotary Floor Finish.
DriveMethodTypesTotal	Total.

Member Function Documentation

NXOpen::CAM::SurfaceContourBuilder::AccessVectorMethodType NXOpen::CAM::SurfaceContourBuilder::AccessVectorMethod ( )

Returns the Access Vector Method
Created in NX5.0.0.

License requirements : None

bool NXOpen::CAM::SurfaceContourBuilder::AutomaticAuxiliaryFloor ( )

Returns the Automatic Auxiliary Floor
Created in NX5.0.0.

License requirements : None

double NXOpen::CAM::SurfaceContourBuilder::AutomaticAuxiliaryFloorDistance ( )

Returns the Automatic Auxiliary Floor Distance
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::Geometry* NXOpen::CAM::SurfaceContourBuilder::AuxiliaryFloorGeometry ( )

Returns the auxiliary floor geometry builder
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::BladeFinish* NXOpen::CAM::SurfaceContourBuilder::BladeFinish ( )

Returns the Blade Finish Drive Method builder
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::BladeRough* NXOpen::CAM::SurfaceContourBuilder::BladeRough ( )

Returns the Blade Rough Drive Method builder
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::BlendFinish* NXOpen::CAM::SurfaceContourBuilder::BlendFinish ( )

Returns the Blend Finish Drive Method builder
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::Geometry* NXOpen::CAM::SurfaceContourBuilder::CheckGeometry ( )

Returns the check geometry builder
Created in NX8.0.0.

License requirements : None

bool NXOpen::CAM::SurfaceContourBuilder::CheckToolAboveBall ( )

Returns a bool to check tool above ball
Created in NX9.0.0.

License requirements : None

NXOpen::CAM::SurfaceContourBuilder::CleanupTypes NXOpen::CAM::SurfaceContourBuilder::CleanupType ( )

Returns the cleanup type
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::Geometry* NXOpen::CAM::SurfaceContourBuilder::CutAreaGeometry ( )

Returns the cut area geometry builder
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::BladeCutLevels* NXOpen::CAM::SurfaceContourBuilder::CutLevels ( )

Returns the cut levels builder
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::DmAmBuilder* NXOpen::CAM::SurfaceContourBuilder::DmareaMillingBuilder ( )

Returns the Area Milling Drive Method builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::DmBndBuilder* NXOpen::CAM::SurfaceContourBuilder::DmboundaryBuilder ( )

Returns the Boundary Drive Method builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::DmCmBuilder* NXOpen::CAM::SurfaceContourBuilder::DmCmBuilder ( )

Returns the Contour Profile Drive Method builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::DmCurveBuilder* NXOpen::CAM::SurfaceContourBuilder::DmcurveBuilder ( )

Returns the Curve Drive Method builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::DmRadBuilder* NXOpen::CAM::SurfaceContourBuilder::DmradBuilder ( )

Returns the Radial Cut Drive Method builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::DmSpiralBuilder* NXOpen::CAM::SurfaceContourBuilder::DmSpiralBuilder ( )

Returns the Spiral Drive Method builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::DmSurfBuilder* NXOpen::CAM::SurfaceContourBuilder::DmSurfBuilder ( )

Returns the Surface Area Drive Method builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::DmTpBuilder* NXOpen::CAM::SurfaceContourBuilder::DmtpBuilder ( )

Returns the Tool Path Drive Method builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::EdgeFinish* NXOpen::CAM::SurfaceContourBuilder::EdgeFinish ( )

Returns the Edge Finish Drive Method builder
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::FlowBuilder* NXOpen::CAM::SurfaceContourBuilder::FlowBuilder ( )

Returns the Flow Cut Drive Method builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::SurfaceContourBuilder::DriveMethodTypes NXOpen::CAM::SurfaceContourBuilder::GetDriveMethod ( )

Get drive method.

Returns: the drive method menu value
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::HubFinish* NXOpen::CAM::SurfaceContourBuilder::HubFinish ( )

Returns the Hub Finish Drive Method builder
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::NcmScBuilder* NXOpen::CAM::SurfaceContourBuilder::NonCuttingBuilder ( )

Returns the non-cutting moves builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::InheritableIntBuilder* NXOpen::CAM::SurfaceContourBuilder::NumberOfBlades ( )

Returns the number of blades
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::Geometry* NXOpen::CAM::SurfaceContourBuilder::PartGeometry ( )

Returns the part geometry builder
Created in NX8.0.0.

License requirements : None

NXOpen::CAM::ProjVecCiBuilder* NXOpen::CAM::SurfaceContourBuilder::ProjectionVector ( )

Returns the Projection Vector builder (block)
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::DmRotaryFloorFinishBuilder* NXOpen::CAM::SurfaceContourBuilder::RotaryFloorFinishBuilder ( )

Returns the rotary floor finish builder.

Created in NX9.0.0.

License requirements : None

void NXOpen::CAM::SurfaceContourBuilder::SetAccessVectorMethod ( NXOpen::CAM::SurfaceContourBuilder::AccessVectorMethodType accessVectorMethod )

Sets the Access Vector Method
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

accessVectorMethod the value of Access Vector Method

void NXOpen::CAM::SurfaceContourBuilder::SetAutomaticAuxiliaryFloor ( bool applyAutoAuxFloor )

Sets the Automatic Auxiliary Floor
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

applyAutoAuxFloor the Automatic Auxiliary Floor value

void NXOpen::CAM::SurfaceContourBuilder::SetAutomaticAuxiliaryFloorDistance ( double auxFloorDis )

Sets the Automatic Auxiliary Floor Distance
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

auxFloorDis the Distance value

void NXOpen::CAM::SurfaceContourBuilder::SetCheckToolAboveBall ( bool checkToolAboveBall )

Sets a bool to check tool above ball
Created in NX9.0.0.

License requirements : None

Parameters

checkToolAboveBall the check tool above ball value

void NXOpen::CAM::SurfaceContourBuilder::SetCleanupType ( NXOpen::CAM::SurfaceContourBuilder::CleanupTypes propValue )

Sets the cleanup type
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

propValue the value of cleanup type

void NXOpen::CAM::SurfaceContourBuilder::SetDriveMethod ( NXOpen::CAM::SurfaceContourBuilder::DriveMethodTypes driveMethod )

Set drive method
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

driveMethod the drive method menu value

NXOpen::CAM::ToolAxisCiBuilder* NXOpen::CAM::SurfaceContourBuilder::ToolAxis ( )

Returns the tool axis builder

Deprecated:: Deprecated in NX7.5.0.

Please use ToolAxisFixed or ToolAxisVariable instead.

Created in NX5.0.0.

License requirements : None

NXOpen::CAM::ToolAxisAdvanced* NXOpen::CAM::SurfaceContourBuilder::ToolAxisAdvanced ( )

Returns the tool axis advanced builder
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::ToolAxisFixed* NXOpen::CAM::SurfaceContourBuilder::ToolAxisFixed ( )

Returns the Tool Axis Fixed builder
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::ToolAxisVariable* NXOpen::CAM::SurfaceContourBuilder::ToolAxisVariable ( )

Returns the Tool Axis Variable builder
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::Boundary* NXOpen::CAM::SurfaceContourBuilder::TrimBoundary ( )

Returns the trim boundary
Created in NX9.0.0.

License requirements : None

NXOpen::CAM::DmUserExitCiBuilder* NXOpen::CAM::SurfaceContourBuilder::UserExitCiBuilder ( )

Returns the CAM Exit name builder in User Defined Drive Method builder
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::Geometry* NXOpen::CAM::SurfaceContourBuilder::WallGeometry ( )

Returns the wall geometry builder
Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAM_SurfaceContourBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
