Represents a Blade Rough Drive Method Builder
This is an abstract superclass that has instantaible subclasses

Created in NX7.0.0. More...

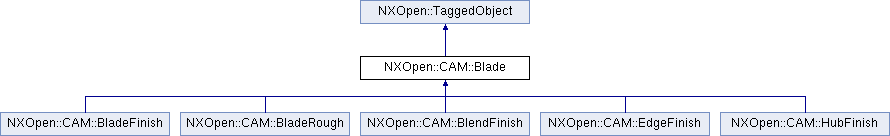

Inheritance diagram for NXOpen::CAM::Blade:

Public Types
enum	MaterialSideType { MaterialSideTypeSame, MaterialSideTypeOpposite }
	Available types for Flip Material, SDM: Select Cut Direction. More...

Public Member Functions
NXOpen::CAM::CutDirection::Types	CutDirection ()
	Returns the Cut Direction Created in NX7.0.0.

NXOpen::CAM::CutPatternBuilder *	CutPattern ()
	Returns the cut pattern builder Created in NX7.0.0.

NXOpen::CAM::BladeEdge *	LeadingEdge ()
	Returns the leading edge builder Created in NX7.0.0.

void	SetCutDirection (NXOpen::CAM::CutDirection::Types cutDirection)
	Sets the Cut Direction Created in NX7.0.0.

NXOpen::CAM::BladeEdge *	TrailingEdge ()
	Returns the trailing edge builder Created in NX7.0.0.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Blade Rough Drive Method Builder
This is an abstract superclass that has instantaible subclasses

Created in NX7.0.0.

Member Enumeration Documentation

Available types for Flip Material, SDM: Select Cut Direction.

Enumerator:

MaterialSideTypeSame	same
MaterialSideTypeOpposite	opp

NXOpen::CAM::CutDirection::Types NXOpen::CAM::Blade::CutDirection ( )

Returns the Cut Direction
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::CutPatternBuilder* NXOpen::CAM::Blade::CutPattern ( )

Returns the cut pattern builder
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::BladeEdge* NXOpen::CAM::Blade::LeadingEdge ( )

Returns the leading edge builder
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::Blade::SetCutDirection ( NXOpen::CAM::CutDirection::Types cutDirection )

Sets the Cut Direction
Created in NX7.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

cutDirection the Cut Direction value

NXOpen::CAM::BladeEdge* NXOpen::CAM::Blade::TrailingEdge ( )

Returns the trailing edge builder
Created in NX7.0.0.

License requirements : None

The documentation for this class was generated from the following file:
