Represents a drill core Tool Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateDrillCoreToolBuilder
Created in NX9.0.0.
More...

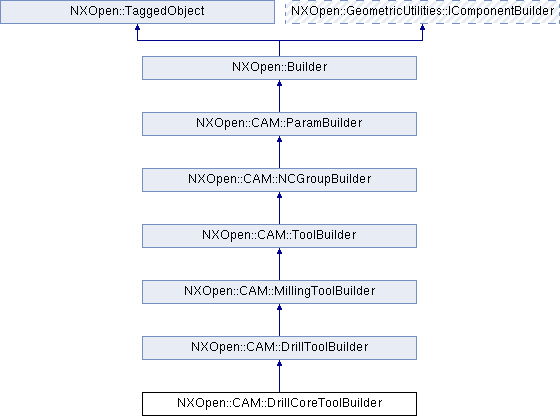

Inheritance diagram for NXOpen::CAM::DrillCoreToolBuilder:
Additional Inherited Members | |
 Public Types inherited from NXOpen::CAM::MillingToolBuilder | |
| enum | ToolDirectionTypes { ToolDirectionTypesNone, ToolDirectionTypesClw, ToolDirectionTypesCclw } |
| Available types for tool direction milling tool. More... | |
| Public Member Functions inherited from NXOpen::CAM::DrillToolBuilder | |
| void | SetTlCoolantThro (bool tlCoolantThroValue) |
| Sets the coolant through Created in NX5.0.0. | |
| void | SetTlDesignation (const NXString &tlDesignation) |
| Sets the Designation Created in NX5.0.0. | |
| void | SetTlDesignation (const char *tlDesignation) |
| Sets the Designation Created in NX5.0.0. | |
| bool | TlCoolantThro () |
| Returns the coolant through Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlCor1RadBuilder () |
| Returns the Corner Radius builder (inheritable double) Created in NX5.0.0. | |
| NXString | TlDesignation () |
| Returns the Designation Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlIncludedAngBuilder () |
| Returns the Included Angle builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlPilotDiaBuilder () |
| Returns the pilot diameter builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlPilotLengthBuilder () |
| Returns the pilot length builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlPitchBuilder () |
| Returns the Pitch builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlPointAngBuilder () |
| Returns the Point Angle builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlPointLengthBuilder () |
| Returns the Point Length builder (inheritable double) Created in NX9.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlTaperDiaDistBuilder () |
| Returns the Taper Diameter Distance builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlTipDiameterBuilder () |
| Returns the Tip Diameter builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlTipLengthBuilder () |
| Returns the Tip Length builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlXOffsetBuilder () |
| Returns the X Offset builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlYzOffsetBuilder () |
| Returns the YZ Offset builder (inheritable double) Created in NX5.0.0. | |
Detailed Description
Represents a drill core Tool Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateDrillCoreToolBuilder
Created in NX9.0.0.
The documentation for this class was generated from the following file:
- CAM_DrillCoreToolBuilder.hxx
