Represents the manager to CAE::ResponseSimulation::CSDExcitation . More...

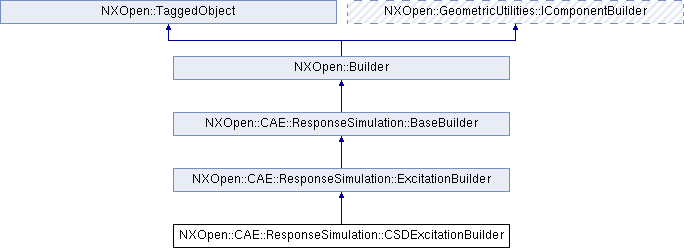

Inheritance diagram for NXOpen::CAE::ResponseSimulation::CSDExcitationBuilder:

Public Member Functions
NXOpen::CAE::ResponseSimulation::CSDExcitation::CorrelationType	CorrelationType ()
	Returns the correlation type Created in NX5.0.0.

double	CorrelationValue ()
	Returns the correlation type Created in NX5.0.0.

NXOpen::CAE::ResponseSimulation::Excitation *	GetFromFunction (NXOpen::CAE::ResponseSimulation::Excitation::Component *componentType)
	Returns the from function.

NXOpen::CAE::ResponseSimulation::Excitation *	GetToFunction (NXOpen::CAE::ResponseSimulation::Excitation::Component *componentType)
	Returns the to function.

void	SetCorrelationType (NXOpen::CAE::ResponseSimulation::CSDExcitation::CorrelationType type)
	Sets the correlation type Created in NX5.0.0.

void	SetCorrelationValue (double correlationValue)
	Sets the correlation type Created in NX5.0.0.

void	SetFromFunction (NXOpen::CAE::ResponseSimulation::Excitation *fromExcitation, NXOpen::CAE::ResponseSimulation::Excitation::Component componentType)
	Sets the from function Created in NX5.0.0.

void	SetToFunction (NXOpen::CAE::ResponseSimulation::Excitation *toExcitation, NXOpen::CAE::ResponseSimulation::Excitation::Component componentType)
	Sets the to function Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::ExcitationBuilder
NXOpen::CAE::ResponseSimulation::RSEvent *	DynamicEvent ()
	Returns the parent dynamic event object Created in NX5.0.0.

NXOpen::CAE::ResponseSimulation::ExcitationLocationDefinition *	ExcitationLocationDefinition ()
	Returns the excitation location definition Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::BaseBuilder
NXOpen::CAE::ResponseSimulation::ObjectLabel *	ObjectLabel ()
	Returns the object label Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::CAE::ResponseSimulation::ExcitationBuilder
enum	ExcitationLocationType { ExcitationLocationTypeStaticLoad = -2, ExcitationLocationTypeDistributedLoad, ExcitationLocationTypeNodalForce, ExcitationLocationTypeEnforcedMotion }
	the type of excitation location More...

Detailed Description

Represents the manager to CAE::ResponseSimulation::CSDExcitation .

The object of type @link CAE::ResponseSimulation::CSDExcitation CAE::ResponseSimulation::CSDExcitation@endlink
 can only be created or edited through this class.
 <br> To create a new instance of this class, use @link CAE::ResponseSimulation::ExcitationCollection::CreateCsdExcitationBuilder  CAE::ResponseSimulation::ExcitationCollection::CreateCsdExcitationBuilder @endlink  <br>

Created in NX5.0.0.

Member Function Documentation

NXOpen::CAE::ResponseSimulation::CSDExcitation::CorrelationType NXOpen::CAE::ResponseSimulation::CSDExcitationBuilder::CorrelationType ( )

Returns the correlation type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

double NXOpen::CAE::ResponseSimulation::CSDExcitationBuilder::CorrelationValue ( )

Returns the correlation type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::Excitation* NXOpen::CAE::ResponseSimulation::CSDExcitationBuilder::GetFromFunction ( NXOpen::CAE::ResponseSimulation::Excitation::Component * componentType )

Returns the from function.

Returns: Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

componentType componenttype

NXOpen::CAE::ResponseSimulation::Excitation* NXOpen::CAE::ResponseSimulation::CSDExcitationBuilder::GetToFunction ( NXOpen::CAE::ResponseSimulation::Excitation::Component * componentType )

Returns the to function.

Returns: Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

componentType componenttype

void NXOpen::CAE::ResponseSimulation::CSDExcitationBuilder::SetCorrelationType ( NXOpen::CAE::ResponseSimulation::CSDExcitation::CorrelationType type )

Sets the correlation type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

type type

void NXOpen::CAE::ResponseSimulation::CSDExcitationBuilder::SetCorrelationValue ( double correlationValue )

Sets the correlation type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

correlationValue correlationvalue

void NXOpen::CAE::ResponseSimulation::CSDExcitationBuilder::SetFromFunction	(	NXOpen::CAE::ResponseSimulation::Excitation *	fromExcitation,
		NXOpen::CAE::ResponseSimulation::Excitation::Component	componentType
	)

Sets the from function
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

fromExcitation	fromexcitation
componentType	componenttype

void NXOpen::CAE::ResponseSimulation::CSDExcitationBuilder::SetToFunction	(	NXOpen::CAE::ResponseSimulation::Excitation *	toExcitation,
		NXOpen::CAE::ResponseSimulation::Excitation::Component	componentType
	)

Sets the to function
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

toExcitation	toexcitation
componentType	componenttype

The documentation for this class was generated from the following file:

CAE_ResponseSimulation_CSDExcitationBuilder.hxx
