Represents an CSD excitation. More...

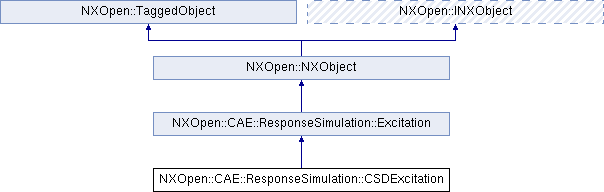

Inheritance diagram for NXOpen::CAE::ResponseSimulation::CSDExcitation:

Public Types
enum	CorrelationType { CorrelationTypePhaseAngle, CorrelationTypeTimeDelay }
	Represents the correlation type. More...

Public Types inherited from NXOpen::CAE::ResponseSimulation::Excitation
enum	Component { ComponentDistributedLoad = -1, ComponentX, ComponentY, ComponentZ, ComponentRx, ComponentRy, ComponentRz, ComponentUserDefined }
	Represents the component type. More...

Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Additional Inherited Members
Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::Excitation
void	Destroy ()
	Deletes a response simulation excitation Created in NX5.0.0.

NXString	ExcitationName ()
	Returns the excitation name Created in NX5.0.0.

void	SetExcitationName (const NXString &excitationName)
	Sets the excitation name Created in NX5.0.0.

void	SetExcitationName (const char *excitationName)
	Sets the excitation name Created in NX5.0.0.

Detailed Description

Represents an CSD excitation.

CSD excitation could only be used by CSD event.
To create or edit an instance of this class, use CAE::ResponseSimulation::CSDExcitationBuilder

Created in NX5.0.0.

Member Enumeration Documentation

Represents the correlation type.

Enumerator:

CorrelationTypePhaseAngle	phase angle
CorrelationTypeTimeDelay	time delay
