Represents the abstract excitation builder class. More...

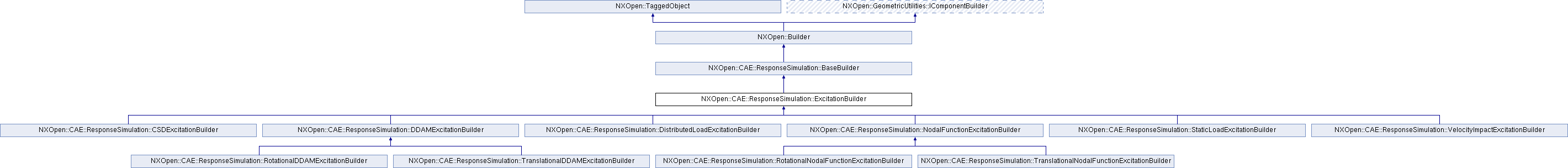

Inheritance diagram for NXOpen::CAE::ResponseSimulation::ExcitationBuilder:

Public Types
enum	ExcitationLocationType { ExcitationLocationTypeStaticLoad = -2, ExcitationLocationTypeDistributedLoad, ExcitationLocationTypeNodalForce, ExcitationLocationTypeEnforcedMotion }
	the type of excitation location More...

Public Member Functions
NXOpen::CAE::ResponseSimulation::RSEvent *	DynamicEvent ()
	Returns the parent dynamic event object Created in NX5.0.0.

NXOpen::CAE::ResponseSimulation::ExcitationLocationDefinition *	ExcitationLocationDefinition ()
	Returns the excitation location definition Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::BaseBuilder
NXOpen::CAE::ResponseSimulation::ObjectLabel *	ObjectLabel ()
	Returns the object label Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the abstract excitation builder class.

Any of real excitation builder must inherit from this class.
This is an abstract class, and cannot be created.

Created in NX5.0.0.

Member Enumeration Documentation

the type of excitation location

Enumerator:

ExcitationLocationTypeDistributedLoad	distributed load
ExcitationLocationTypeNodalForce	nodal force
ExcitationLocationTypeEnforcedMotion	enforced motion

NXOpen::CAE::ResponseSimulation::RSEvent* NXOpen::CAE::ResponseSimulation::ExcitationBuilder::DynamicEvent ( )

Returns the parent dynamic event object
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::ExcitationLocationDefinition* NXOpen::CAE::ResponseSimulation::ExcitationBuilder::ExcitationLocationDefinition ( )

Returns the excitation location definition
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

The documentation for this class was generated from the following file:
