NXOpen::Annotations::DraftingArbitraryTarget Class Reference

Represents a drafting arbitrary datum target. More...

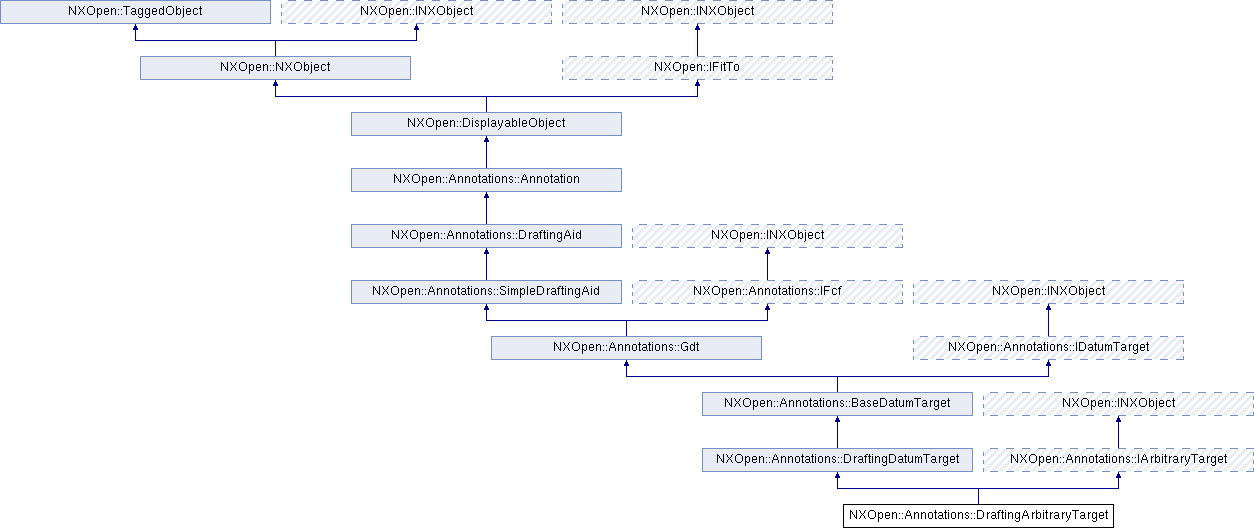

Inheritance diagram for NXOpen::Annotations::DraftingArbitraryTarget:

Public Member Functions
virtual void	SetUpperText (const NXString &upperText)
	Sets the target upper text.
void	SetUpperText (const char *upperText)
	Sets the target upper text.
virtual NXString	UpperText ()
	Returns the target upper text.
Public Member Functions inherited from NXOpen::Annotations::DraftingDatumTarget
NXOpen::Annotations::ArbitraryTarget *	ConvertToAreaTarget ()
	Converts a datum target point, line, or non-rectangular area to a rectangular area.
NXOpen::Annotations::DraftingArbitraryTarget *	ConvertToDraftingAreaTarget ()
	Converts a drafting datum target point, line, or non-rectangular area to a drafting rectangular area.
NXOpen::Annotations::DraftingLineTarget *	ConvertToDraftingLineTarget ()
	Converts a drafting datum target point or area to a drafting datum target line.
NXOpen::Annotations::DraftingPointTarget *	ConvertToDraftingPointTarget ()
	Converts a drafting datum target line or area to a drafting datum target point.
NXOpen::Annotations::LineTarget *	ConvertToLineTarget ()
	Converts a datum target point or area to a datum target line.
NXOpen::Annotations::PointTarget *	ConvertToPointTarget ()
	Converts a datum target line or area to a datum target point.
Public Member Functions inherited from NXOpen::Annotations::BaseDatumTarget
virtual NXString	DatumLabel ()
	Returns the datum target label.
virtual void	SetDatumLabel (const NXString &datumLabel)
	Sets the datum target label.
void	SetDatumLabel (const char *datumLabel)
	Sets the datum target label.
virtual void	SetTargetIndex (int index)
	Sets the datum target index.
virtual int	TargetIndex ()
	Returns the datum target index.
Public Member Functions inherited from NXOpen::Annotations::Gdt
bool	CanChangeLeaderPositionParameter ()
	Returns a flag indicating whether the Annotations::Gdt::LeaderPositionParameter can be changed Created in NX3.0.0.
virtual NXOpen::Annotations::FcfFrameData *	GetFcfFrameData ()
	Returns the single FCF frames data.
virtual std::vector < NXOpen::Annotations::FcfFrameData * >	GetFcfFrameDataArray ()
	Returns the multiple FCF frames data.
bool	HasLeaderPositionParameter ()
	Returns a flag indicating whether this GDT has a leader position parameter.
bool	HasStubbedDatumStyle ()
	Returns a flag indicating whether the leader has a stubbed datum style.
double	LeaderPositionParameter ()
	Returns a parameter which indicates where the leader end point is located on the object that it is attached to.
virtual void	SetFcfFrameData (NXOpen::Annotations::FcfFrameData *data)
	Sets the single FCF frames data.
virtual void	SetFcfFrameData (const std::vector< NXOpen::Annotations::FcfFrameData * > &fcfFrameData)
	Sets the multiple FCF frames data.
void	SetHasStubbedDatumStyle (bool stubbed)
	Sets a flag indicating whether the leader has a stubbed datum style.
void	SetLeaderPositionParameter (double param)
	Sets a parameter which indicates where the leader end point is located on the object that it is attached to.
void	SetSymbolCfw (const NXOpen::Annotations::LineCfw &cfw)
	Sets the symbol color, font, and width.
Public Member Functions inherited from NXOpen::Annotations::SimpleDraftingAid
std::vector< NXString >	GetText ()
	Returns the drafting aid's text.
NXOpen::Annotations::UserSymbolPreferences *	GetUserSymbolPreferences ()
	Returns the user symbol preferences.
void	GetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType *sizeType, double *lengthOrScale, double *heightOrAspectRatio)
	Gets the user symbol size Created in NX3.0.0.
void	SetText (std::vector< NXString > &lines)
	Sets the drafting aid's text.
void	SetUserSymbolPreferences (NXOpen::Annotations::UserSymbolPreferences *usymPrefs)
	Sets the user symbol preferences.
void	SetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType sizeType, double lengthOrScale, double heightOrAspectRatio)
	Sets the user symbol size.
Public Member Functions inherited from NXOpen::Annotations::IDatumTarget
void	SetDatumLabel (const char *datumLabel)
	Sets the datum target label.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.
Public Member Functions inherited from NXOpen::Annotations::IArbitraryTarget
void	SetUpperText (const char *upperText)
	Sets the target upper text.

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...

Detailed Description

Represents a drafting arbitrary datum target.

To create or edit an instance of this class, use Annotations::DraftingDatumTargetBuilder

Created in NX4.0.0.

Member Function Documentation

virtual void NXOpen::Annotations::DraftingArbitraryTarget::SetUpperText ( const NXString &  upperText )

virtual

Sets the target upper text.

   NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
         If it is, the changes will be overridden when the part is updated.

Created in NX5.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")

Parameters

upperText

Upper text

Implements NXOpen::Annotations::IArbitraryTarget.

void NXOpen::Annotations::DraftingArbitraryTarget::SetUpperText

(

const char *

upperText

)

Sets the target upper text.

   NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
         If it is, the changes will be overridden when the part is updated.

Created in NX5.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")

Parameters

upperText

Upper text

virtual NXString NXOpen::Annotations::DraftingArbitraryTarget::UpperText ( )

virtual

Returns the target upper text.

   NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
         If it is, the changes will be overridden when the part is updated.

Created in NX5.0.0.

License requirements : None

Implements NXOpen::Annotations::IArbitraryTarget.

---

The documentation for this class was generated from the following file:

• Annotations_DraftingArbitraryTarget.hxx
