Represents a @link Annotations::DraftingDatumTargetBuilder Annotations::DraftingDatumTargetBuilder@endlink <br> To create a new instance of this class, use @link Annotations::AnnotationManager::CreateDraftingDatumTargetBuilder Annotations::AnnotationManager::CreateDraftingDatumTargetBuilder @endlink <br>
Default values. More...

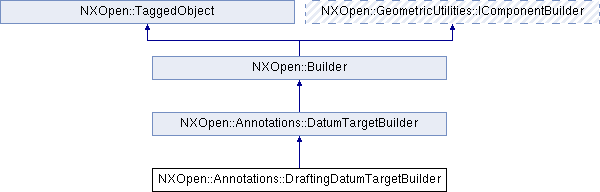

Inheritance diagram for NXOpen::Annotations::DraftingDatumTargetBuilder:
Additional Inherited Members | |
 Public Types inherited from NXOpen::Annotations::DatumTargetBuilder | |
| enum | Types { TypesPoint, TypesLine, TypesRectangular, TypesCircular, TypesAnnular, TypesSpherical, TypesCylindrical, TypesArbitrary } |
| datum symbol type More... | |
| Public Member Functions inherited from NXOpen::Annotations::DatumTargetBuilder | |
| NXString | AreaSize () |
| Returns the area size Created in NX6.0.0. | |
| bool | DrawX () |
| Returns the draw x Created in NX6.0.0. | |
| NXOpen::Expression * | Height () |
| Returns the height Created in NX6.0.0. | |
| int | Index () |
| Returns the index Created in NX6.0.0. | |
| void | InheritFrom (NXOpen::Annotations::BaseDatumTarget *inheritTag) |
| The datum target is inherited form existing datum target. | |
| NXOpen::Expression * | InnerDiameter () |
| Returns the inner diameter Created in NX6.0.0. | |
| NXString | Label () |
| Returns the label Created in NX6.0.0. | |
| NXOpen::Annotations::LeaderBuilder * | Leader () |
| Returns the Annotations::LeaderBuilder for the annotation Created in NX6.0.0. | |
| NXOpen::Annotations::OriginBuilder * | Origin () |
| Returns the origin Created in NX6.0.0. | |
| NXOpen::Expression * | OuterDiameter () |
| Returns the outer diameter Created in NX6.0.0. | |
| void | SetAreaSize (const NXString &areaSize) |
| Sets the area size Created in NX6.0.0. | |
| void | SetAreaSize (const char *areaSize) |
| Sets the area size Created in NX6.0.0. | |
| void | SetDrawX (bool flag) |
| Sets the draw x Created in NX6.0.0. | |
| void | SetIndex (int index) |
| Sets the index Created in NX6.0.0. | |
| void | SetLabel (const NXString &label) |
| Sets the label Created in NX6.0.0. | |
| void | SetLabel (const char *label) |
| Sets the label Created in NX6.0.0. | |
| void | SetType (NXOpen::Annotations::DatumTargetBuilder::Types type) |
| Sets the type Created in NX6.0.0. | |
| NXOpen::Annotations::StyleBuilder * | Style () |
| Returns the style Created in NX6.0.0. | |
| NXOpen::Annotations::DatumTargetBuilder::Types | Type () |
| Returns the type Created in NX6.0.0. | |
| NXOpen::Expression * | Width () |
| Returns the width Created in NX6.0.0. | |
Detailed Description
Represents a @link Annotations::DraftingDatumTargetBuilder Annotations::DraftingDatumTargetBuilder@endlink <br> To create a new instance of this class, use @link Annotations::AnnotationManager::CreateDraftingDatumTargetBuilder Annotations::AnnotationManager::CreateDraftingDatumTargetBuilder @endlink <br>
Default values.
| Property | Value |
|---|---|
|
Height.Value |
10 (millimeters part), 1 (inches part) |
|
InnerDiameter.Value |
10 (millimeters part), .1 (inches part) |
|
OuterDiameter.Value |
10 (millimeters part), 1 (inches part) |
|
Width.Value |
10 (millimeters part), 1 (inches part) |
Created in NX6.0.0.
The documentation for this class was generated from the following file:
- Annotations_DraftingDatumTargetBuilder.hxx
