Represents point datum target
To create or edit an instance of this class, use Annotations::PmiDatumTargetBuilder
Created in NX4.0.0.
More...

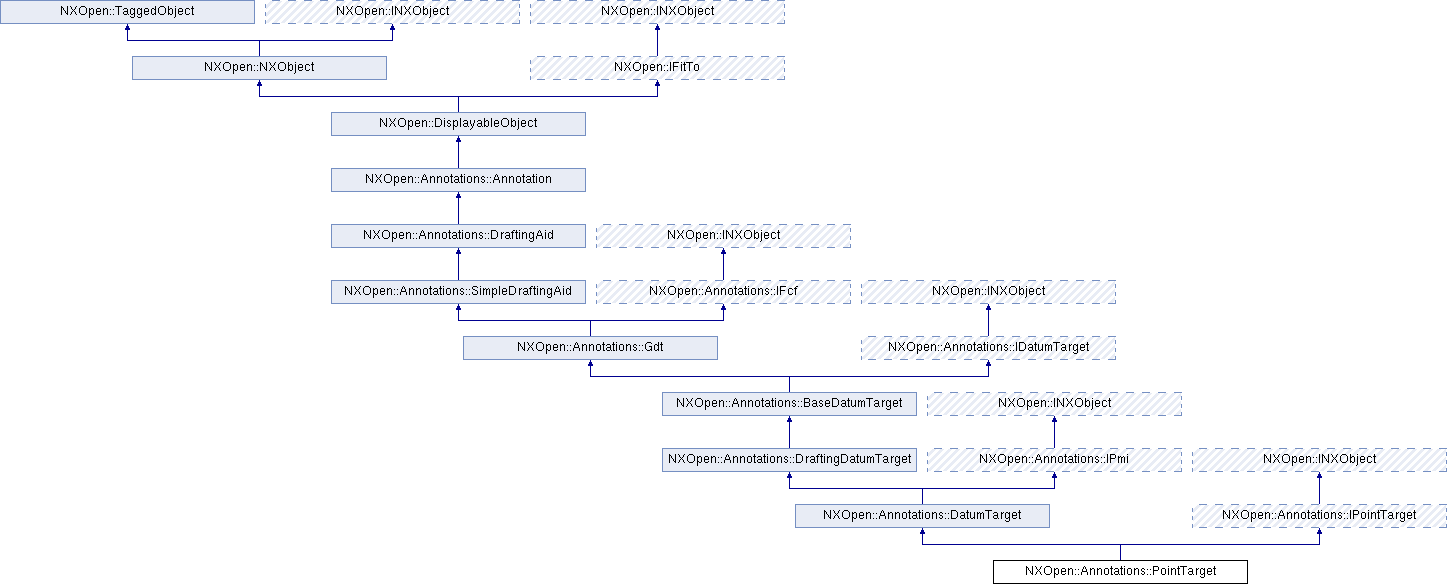

Inheritance diagram for NXOpen::Annotations::PointTarget:
Public Member Functions | |
| virtual NXOpen::Point3d | PointCoordinates () |
| Returns the target point coordinates Created in NX4.0.0. | |
 Public Member Functions inherited from NXOpen::Annotations::DatumTarget | |
| virtual NXOpen::Annotations::AssociatedObject * | GetAssociatedObject () |
| Returns the associated object. | |
| virtual std::vector < NXOpen::Annotations::BusinessModifier * > | GetBusinessModifiers () |
| Returns the business modifiers. | |
| virtual NXOpen::Annotations::AssociatedObject * | GetSharedAssociatedObject () |
| Returns the shared associated objects. | |
| virtual int | Index () |
| Returns the index. | |
| virtual bool | IsMirrored () |
| Returns a flag indicating whether the annotation is mirrored Created in NX8.5.0. | |
| virtual void | SetAssociatedObject (NXOpen::Annotations::AssociatedObject *assocObj) |
| Sets the associated object. | |
| virtual void | SetBusinessModifiers (const std::vector< NXOpen::Annotations::BusinessModifier * > &businessModifiers) |
| Sets the business modifiers. | |
| virtual void | SetIndex (int index) |
| Sets the index. | |
| Public Member Functions inherited from NXOpen::Annotations::DraftingDatumTarget | |
| NXOpen::Annotations::ArbitraryTarget * | ConvertToAreaTarget () |
| Converts a datum target point, line, or non-rectangular area to a rectangular area. | |
| NXOpen::Annotations::DraftingArbitraryTarget * | ConvertToDraftingAreaTarget () |
| Converts a drafting datum target point, line, or non-rectangular area to a drafting rectangular area. | |
| NXOpen::Annotations::DraftingLineTarget * | ConvertToDraftingLineTarget () |
| Converts a drafting datum target point or area to a drafting datum target line. | |
| NXOpen::Annotations::DraftingPointTarget * | ConvertToDraftingPointTarget () |
| Converts a drafting datum target line or area to a drafting datum target point. | |
| NXOpen::Annotations::LineTarget * | ConvertToLineTarget () |
| Converts a datum target point or area to a datum target line. | |
| NXOpen::Annotations::PointTarget * | ConvertToPointTarget () |
| Converts a datum target line or area to a datum target point. | |
| Public Member Functions inherited from NXOpen::Annotations::BaseDatumTarget | |
| virtual NXString | DatumLabel () |
| Returns the datum target label. | |
| virtual void | SetDatumLabel (const NXString &datumLabel) |
| Sets the datum target label. | |
| void | SetDatumLabel (const char *datumLabel) |
| Sets the datum target label. | |
| virtual void | SetTargetIndex (int index) |
| Sets the datum target index. | |
| virtual int | TargetIndex () |
| Returns the datum target index. | |
| Public Member Functions inherited from NXOpen::Annotations::Gdt | |
| bool | CanChangeLeaderPositionParameter () |
| Returns a flag indicating whether the Annotations::Gdt::LeaderPositionParameter can be changed Created in NX3.0.0. | |
| virtual NXOpen::Annotations::FcfFrameData * | GetFcfFrameData () |
| Returns the single FCF frames data. | |
| virtual std::vector < NXOpen::Annotations::FcfFrameData * > | GetFcfFrameDataArray () |
| Returns the multiple FCF frames data. | |
| bool | HasLeaderPositionParameter () |
| Returns a flag indicating whether this GDT has a leader position parameter. | |
| bool | HasStubbedDatumStyle () |
| Returns a flag indicating whether the leader has a stubbed datum style. | |
| double | LeaderPositionParameter () |
| Returns a parameter which indicates where the leader end point is located on the object that it is attached to. | |
| virtual void | SetFcfFrameData (NXOpen::Annotations::FcfFrameData *data) |
| Sets the single FCF frames data. | |
| virtual void | SetFcfFrameData (const std::vector< NXOpen::Annotations::FcfFrameData * > &fcfFrameData) |
| Sets the multiple FCF frames data. | |
| void | SetHasStubbedDatumStyle (bool stubbed) |
| Sets a flag indicating whether the leader has a stubbed datum style. | |
| void | SetLeaderPositionParameter (double param) |
| Sets a parameter which indicates where the leader end point is located on the object that it is attached to. | |
| void | SetSymbolCfw (const NXOpen::Annotations::LineCfw &cfw) |
| Sets the symbol color, font, and width. | |
| Public Member Functions inherited from NXOpen::Annotations::SimpleDraftingAid | |
| std::vector< NXString > | GetText () |
| Returns the drafting aid's text. | |
| NXOpen::Annotations::UserSymbolPreferences * | GetUserSymbolPreferences () |
| Returns the user symbol preferences. | |
| void | GetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType *sizeType, double *lengthOrScale, double *heightOrAspectRatio) |
| Gets the user symbol size Created in NX3.0.0. | |
| void | SetText (std::vector< NXString > &lines) |
| Sets the drafting aid's text. | |
| void | SetUserSymbolPreferences (NXOpen::Annotations::UserSymbolPreferences *usymPrefs) |
| Sets the user symbol preferences. | |
| void | SetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType sizeType, double lengthOrScale, double heightOrAspectRatio) |
| Sets the user symbol size. | |
| Public Member Functions inherited from NXOpen::Annotations::IDatumTarget | |
| void | SetDatumLabel (const char *datumLabel) |
| Sets the datum target label. | |
| Public Member Functions inherited from NXOpen::INXObject | |
| NXOpen::INXObject * | FindObject (const char *journalIdentifier) |
| Finds the NXObject with the given identifier as recorded in a journal. | |
| void | SetName (const char *name) |
| Sets the custom name of the object. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::DisplayableObject | |
| enum | ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed } |
| specifies the object font for objects such as lines Created in NX3.0.0. More... | |
| enum | ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine } |
| specifies object width for objects such as lines and text Created in NX3.0.0. More... | |
Detailed Description
Represents point datum target
To create or edit an instance of this class, use Annotations::PmiDatumTargetBuilder
Created in NX4.0.0.
Member Function Documentation
|
virtual |
Returns the target point coordinates
Created in NX4.0.0.
License requirements : None
Implements NXOpen::Annotations::IPointTarget.
The documentation for this class was generated from the following file:
- Annotations_PointTarget.hxx
