A builder used to create or edit a Weld::Fill feature. More...

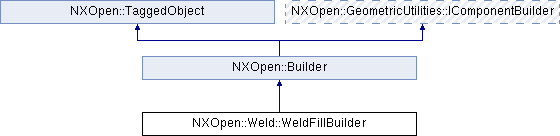

Inheritance diagram for NXOpen::Weld::WeldFillBuilder:

Public Types
enum	BoundaryMethodType { BoundaryMethodTypeRectangle, BoundaryMethodTypeCurve }
	Defines whether the initial boundary of the fill pattern is defined by a two point rectangle or a curve. More...

enum	WidthAlongType { WidthAlongTypeXc, WidthAlongTypeYc }
	Defines the direction the fill strip's length is aligned. More...

Public Member Functions
NXOpen::Section *	Boundary ()
	Returns the section defining the boundary if the Weld::WeldFillBuilder::BoundaryMethodTypeCurve option is specified for the boundary type.

NXOpen::Weld::WeldFillBuilder::BoundaryMethodType	BoundaryMethod ()
	Returns the type of boundary to create the fill from.

bool	ChangeViewOrientation ()
	Returns the indication if the view orientation should be changed automatically (true) upon initial creation of rectangles, or not (false) Created in NX7.5.0.

NXOpen::Weld::CharacteristicsBuilder *	Characteristics ()
	Returns the characteristics information.

NXOpen::Point *	Corner1 ()
	Returns the first corner of the boundary if the Weld::WeldFillBuilder::BoundaryMethodTypeRectangle option is specified for the boundary type.

NXOpen::Point *	Corner2 ()
	Returns the second corner of the boundary if the Weld::WeldFillBuilder::BoundaryMethodTypeRectangle option is specified for the boundary type.

void	DeleteFillStrip (NXOpen::Weld::WeldFillStripBuilder *fillStrip)
	Delete a fill strip.

double	DistanceTolerance ()
	Returns the distance tolerance used in processing to determine if two points are coincident.

double	ExtendDistance ()
	Returns the distance to extend a strip.

double	ExtrudeHeight ()
	Returns the height of the extrusions representing the fill.

NXOpen::Weld::WeldFillStripBuilderList *	FillStripList ()
	Returns the fill strip list.

NXOpen::Section *	InnerBoundary ()
	Returns the section containing edges of interior openings which indicate that these openings should be filled over.

NXOpen::Weld::WeldFillStripBuilder *	NewFillStrip (const NXOpen::Point3d &center, double length)
	Create a new fill strip.

NXOpen::CoordinateSystem *	Orientation ()
	Returns the coordinate system that defines the alignment of the strips and rectangle.

NXOpen::ScCollector *	PlacementFace ()
	Returns the collector containing the faces to build the fill on.

void	SetBoundaryMethod (NXOpen::Weld::WeldFillBuilder::BoundaryMethodType boundaryMethod)
	Sets the type of boundary to create the fill from.

void	SetChangeViewOrientation (bool changeViewOrientation)
	Sets the indication if the view orientation should be changed automatically (true) upon initial creation of rectangles, or not (false) Created in NX7.5.0.

void	SetCorner1 (NXOpen::Point *corner1)
	Sets the first corner of the boundary if the Weld::WeldFillBuilder::BoundaryMethodTypeRectangle option is specified for the boundary type.

void	SetCorner2 (NXOpen::Point *corner2)
	Sets the second corner of the boundary if the Weld::WeldFillBuilder::BoundaryMethodTypeRectangle option is specified for the boundary type.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the distance tolerance used in processing to determine if two points are coincident.

void	SetExtendDistance (double distance)
	Sets the distance to extend a strip.

void	SetExtrudeHeight (double extrudeHeight)
	Sets the height of the extrusions representing the fill.

void	SetOrientation (NXOpen::CoordinateSystem *csys)
	Sets the coordinate system that defines the alignment of the strips and rectangle.

void	SetSubdivideRegion (bool subdivideRegion)
	Sets the indication if the fill is to be a collection of rectangles (true), or simply the enclosed boundary area (false).

void	SetUseSeedFace (bool useSeedFace)
	Sets the indication if the selected faces should be used as seed faces.

void	SetWidth (double width)
	Sets the width of the rectangles.

void	SetWidthAlong (NXOpen::Weld::WeldFillBuilder::WidthAlongType widthAlong)
	Sets the width of the rectangles will be measured along this direction.

bool	SubdivideRegion ()
	Returns the indication if the fill is to be a collection of rectangles (true), or simply the enclosed boundary area (false).

bool	UseSeedFace ()
	Returns the indication if the selected faces should be used as seed faces.

double	Width ()
	Returns the width of the rectangles.

NXOpen::Weld::WeldFillBuilder::WidthAlongType	WidthAlong ()
	Returns the width of the rectangles will be measured along this direction.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

A builder used to create or edit a Weld::Fill feature.

To create a new instance of this class, use Weld::WeldManager::CreateFillBuilder
Default values.

Property

Value

BoundaryMethod

Rectangle

ChangeViewOrientation

0

ExtendDistance

-15.0 (millimeters part), -0.5 (inches part)

ExtrudeHeight

1

SubdivideRegion

0

Width

5

WidthAlong

Xc

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::Weld::WeldFillBuilder::BoundaryMethodType

Defines whether the initial boundary of the fill pattern is defined by a two point rectangle or a curve.

Enumerator:

BoundaryMethodTypeRectangle	Boundary defined by a two point rectangle.
BoundaryMethodTypeCurve	Boundary defined by a curve.

enum NXOpen::Weld::WeldFillBuilder::WidthAlongType

Defines the direction the fill strip's length is aligned.

Enumerator:

WidthAlongTypeXc	The length is aligned along the current WCS X direction.
WidthAlongTypeYc	The length is aligned along the current WCS Y direction.

Member Function Documentation

NXOpen::Section* NXOpen::Weld::WeldFillBuilder::Boundary ( )

Returns the section defining the boundary if the Weld::WeldFillBuilder::BoundaryMethodTypeCurve option is specified for the boundary type.

Created in NX7.5.0.

License requirements : None

NXOpen::Weld::WeldFillBuilder::BoundaryMethodType NXOpen::Weld::WeldFillBuilder::BoundaryMethod ( )

Returns the type of boundary to create the fill from.

Created in NX7.5.0.

License requirements : None

bool NXOpen::Weld::WeldFillBuilder::ChangeViewOrientation ( )

Returns the indication if the view orientation should be changed automatically (true) upon initial creation of rectangles, or not (false)
Created in NX7.5.0.

License requirements : None

NXOpen::Weld::CharacteristicsBuilder* NXOpen::Weld::WeldFillBuilder::Characteristics ( )

Returns the characteristics information.

Created in NX7.5.0.

License requirements : None

NXOpen::Point* NXOpen::Weld::WeldFillBuilder::Corner1 ( )

Returns the first corner of the boundary if the Weld::WeldFillBuilder::BoundaryMethodTypeRectangle option is specified for the boundary type.

Created in NX7.5.0.

License requirements : None

NXOpen::Point* NXOpen::Weld::WeldFillBuilder::Corner2 ( )

Returns the second corner of the boundary if the Weld::WeldFillBuilder::BoundaryMethodTypeRectangle option is specified for the boundary type.

Created in NX7.5.0.

License requirements : None

void NXOpen::Weld::WeldFillBuilder::DeleteFillStrip ( NXOpen::Weld::WeldFillStripBuilder * fillStrip )

Delete a fill strip.

Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

Parameters

fillStrip Fill strip to delete.

double NXOpen::Weld::WeldFillBuilder::DistanceTolerance ( )

Returns the distance tolerance used in processing to determine if two points are coincident.

Created in NX7.5.0.

License requirements : None

double NXOpen::Weld::WeldFillBuilder::ExtendDistance ( )

Returns the distance to extend a strip.

Created in NX7.5.0.

License requirements : None

double NXOpen::Weld::WeldFillBuilder::ExtrudeHeight ( )

Returns the height of the extrusions representing the fill.

Created in NX7.5.0.

License requirements : None

NXOpen::Weld::WeldFillStripBuilderList* NXOpen::Weld::WeldFillBuilder::FillStripList ( )

Returns the fill strip list.

Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

NXOpen::Section* NXOpen::Weld::WeldFillBuilder::InnerBoundary ( )

Returns the section containing edges of interior openings which indicate that these openings should be filled over.

Created in NX7.5.0.

License requirements : None

NXOpen::Weld::WeldFillStripBuilder* NXOpen::Weld::WeldFillBuilder::NewFillStrip	(	const NXOpen::Point3d &	center,
		double	length
	)

Create a new fill strip.

Returns: Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

Parameters

center	Center of the fill strip
length	Length of the fill strip

NXOpen::CoordinateSystem* NXOpen::Weld::WeldFillBuilder::Orientation ( )

Returns the coordinate system that defines the alignment of the strips and rectangle.

Created in NX7.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Weld::WeldFillBuilder::PlacementFace ( )

Returns the collector containing the faces to build the fill on.

Note that during processing additional faces will be obtained by getting adjacent tangent faces (within 45 degrees) so that the boundary of the area is covered. At least one face inside of every boundary must be selected.
Created in NX7.5.0.

License requirements : None

void NXOpen::Weld::WeldFillBuilder::SetBoundaryMethod ( NXOpen::Weld::WeldFillBuilder::BoundaryMethodType boundaryMethod )

Sets the type of boundary to create the fill from.

Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

Parameters

boundaryMethod boundarymethod

void NXOpen::Weld::WeldFillBuilder::SetChangeViewOrientation ( bool changeViewOrientation )

Sets the indication if the view orientation should be changed automatically (true) upon initial creation of rectangles, or not (false)
Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

Parameters

changeViewOrientation changevieworientation

void NXOpen::Weld::WeldFillBuilder::SetCorner1 ( NXOpen::Point * corner1 )

Sets the first corner of the boundary if the Weld::WeldFillBuilder::BoundaryMethodTypeRectangle option is specified for the boundary type.

Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

Parameters

corner1 corner1

void NXOpen::Weld::WeldFillBuilder::SetCorner2 ( NXOpen::Point * corner2 )

Sets the second corner of the boundary if the Weld::WeldFillBuilder::BoundaryMethodTypeRectangle option is specified for the boundary type.

Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

Parameters

corner2 corner2

void NXOpen::Weld::WeldFillBuilder::SetDistanceTolerance ( double distanceTolerance )

Sets the distance tolerance used in processing to determine if two points are coincident.

Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

Parameters

distanceTolerance distancetolerance

void NXOpen::Weld::WeldFillBuilder::SetExtendDistance ( double distance )

Sets the distance to extend a strip.

Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

Parameters

distance distance

void NXOpen::Weld::WeldFillBuilder::SetExtrudeHeight ( double extrudeHeight )

Sets the height of the extrusions representing the fill.

Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

Parameters

extrudeHeight extrudeheight

void NXOpen::Weld::WeldFillBuilder::SetOrientation ( NXOpen::CoordinateSystem * csys )

Sets the coordinate system that defines the alignment of the strips and rectangle.

Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

Parameters

csys csys

void NXOpen::Weld::WeldFillBuilder::SetSubdivideRegion ( bool subdivideRegion )

Sets the indication if the fill is to be a collection of rectangles (true), or simply the enclosed boundary area (false).

Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

Parameters

subdivideRegion subdivideregion

void NXOpen::Weld::WeldFillBuilder::SetUseSeedFace ( bool useSeedFace )

Sets the indication if the selected faces should be used as seed faces.

Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

Parameters

useSeedFace useseedface

void NXOpen::Weld::WeldFillBuilder::SetWidth ( double width )

Sets the width of the rectangles.

Only used if SubdivideRegion is true.
Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

Parameters

width width

void NXOpen::Weld::WeldFillBuilder::SetWidthAlong ( NXOpen::Weld::WeldFillBuilder::WidthAlongType widthAlong )

Sets the width of the rectangles will be measured along this direction.

Created in NX7.5.0.

License requirements : ugweld ("UG WELD")

Parameters

widthAlong widthalong

bool NXOpen::Weld::WeldFillBuilder::SubdivideRegion ( )

Returns the indication if the fill is to be a collection of rectangles (true), or simply the enclosed boundary area (false).

Created in NX7.5.0.

License requirements : None

bool NXOpen::Weld::WeldFillBuilder::UseSeedFace ( )

Returns the indication if the selected faces should be used as seed faces.

Created in NX7.5.0.

License requirements : None

double NXOpen::Weld::WeldFillBuilder::Width ( )

Returns the width of the rectangles.

Only used if SubdivideRegion is true.
Created in NX7.5.0.

License requirements : None

NXOpen::Weld::WeldFillBuilder::WidthAlongType NXOpen::Weld::WeldFillBuilder::WidthAlong ( )

Returns the width of the rectangles will be measured along this direction.

Created in NX7.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Weld_WeldFillBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
