Used to set custom edge preparation parameters of a Weld::WeldJoint feaure. More...

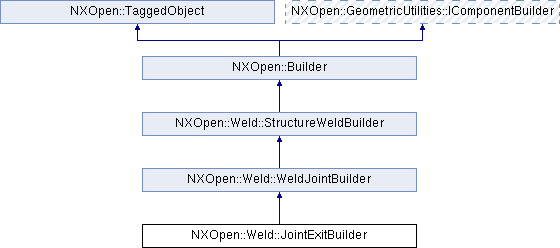

Inheritance diagram for NXOpen::Weld::JointExitBuilder:

Classes
struct	FilletSizes
	The structure for defining fillet weld lengths. More...

Public Types
enum	BodySide { BodySideFirst, BodySideSecond }
	Settings to indicate the side the positions should be applied to. More...

enum	Positions { PositionsUpperChamfer, PositionsUpper, PositionsMiddle, PositionsLower, PositionsLowerChamfer }
	Settings to indicate the desired position of edge preporation thickness and angle. More...

Public Types inherited from NXOpen::Weld::WeldJointBuilder
enum	CoordinateSystem { CoordinateSystemAbsolute, CoordinateSystemShip }
	Coordinate system specification. More...

enum	DestinationTypes { DestinationTypesWorkPart, DestinationTypesNewComponent }
	Where to create new joints. More...

enum	SplitTypes { SplitTypesEqualSegments, SplitTypesLimits, SplitTypesAngle, SplitTypesComputedAngle, SplitTypesLength, SplitTypesNone }
	Joint splitting options. More...

enum	Types { TypesCreateAutomatic, TypesCreateManual, TypesCreateMultiple, TypesCreateAttributes }
	Creation method. More...

enum	WeldTypes { WeldTypesAny, WeldTypesGroove, WeldTypesFillet, WeldTypesCorner, WeldTypesLap, WeldTypesSocket, WeldTypesMechanical }
	Weld types. More...

Public Member Functions
void	GetEdgePrepValues (NXOpen::Weld::JointExitBuilder::Positions position, double thickness, double angle)
	Gets the thickness and angle combination to set for the desired weld position Created in NX8.0.0.

NXOpen::Weld::JointExitBuilder::FilletSizes	GetFilletLengths ()
	Gets the fillet weld values for the side of the welding joint.

NXOpen::Weld::JointExitBuilder::FilletSizes	GetOppositeFilletLengths ()
	Gets the fillet weld values for the opposite side of the welding joint.

double	RootOpening ()
	Returns the desired gap between bodies being welded Created in NX8.0.0.

void	SetBothFilletLengths (const NXOpen::Weld::JointExitBuilder::FilletSizes &sizes)
	Sets the symmetric fillet weld values for a welding joint.

void	SetEdgePrepValues (NXOpen::Weld::JointExitBuilder::Positions position, double thickness, double angle)
	This method should be called multiple times.

void	SetFilletLengths (const NXOpen::Weld::JointExitBuilder::FilletSizes &sizes)
	Sets the fillet weld values for the side of the welding joint.

void	SetOppositeFilletLengths (const NXOpen::Weld::JointExitBuilder::FilletSizes &sizes)
	Sets the fillet weld values for the opposite side of the welding joint.

void	SetRootOpening (double rootOpening)
	Sets the desired gap between bodies being welded Created in NX8.0.0.

void	SetSide (NXOpen::Weld::JointExitBuilder::BodySide side)
	Sets the side edge preparation values will be applied to Created in NX8.0.0.

NXOpen::Weld::JointExitBuilder::BodySide	Side ()
	Returns the side edge preparation values will be applied to Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Weld::WeldJointBuilder
NXOpen::ScCollector *	BackingFace ()
	Returns the backing face.

int	ButtColor ()
	Returns the color for butt weld type joints Created in NX8.0.0.

NXOpen::LineColorFontWidthBuilder *	ButtColorFontWidth ()
	Returns the color, font, and width of the butt joint curves.

NXOpen::DisplayableObject::ObjectFont	ButtFont ()
	Returns the curve font for butt weld type joints Created in NX8.0.0.

NXOpen::DisplayableObject::ObjectWidth	ButtWidth ()
	Returns the curve with for butt weld type joints Created in NX8.0.0.

void	CopyLimits (NXOpen::Die::DieLimitsBuilder *limits)
	Copy input limits to builder limits Created in NX8.5.0.

NXOpen::LineColorFontWidthBuilder *	CornerColorFontWidth ()
	Returns the color, font, and width of the corner joint curves.

NXOpen::Curve *	CreateLimitsPath (NXOpen::Curve *jointCurve)
	Creates the path to be used for the limits.

NXOpen::Weld::WeldJointBuilder::Types	CreateMethod ()
	Returns the creation method Created in NX8.0.0.

void	CreateSingleJointFromFeature (NXOpen::Curve *featureCurve, bool updateBuilder)
	Creates a joint from a feature.

void	Delete ()
	Deletes all joints set by Weld::WeldJointBuilder::Joint .

void	DeleteAllUnMarkedJoints ()
	Deletes any joints that were not marked with a call to Weld::WeldJointBuilder::MarkJointsToKeep .

NXOpen::Weld::WeldJointBuilder::DestinationTypes	Destination ()
	Returns the destination to create new joints Created in NX8.0.0.

bool	DuplicateCheck ()
	Returns the indication to not allow new joints to be created if they are duplicates of exising joints Created in NX8.0.0.

int	FilletColor ()
	Returns the color for T-joint weld type joints Created in NX8.0.0.

NXOpen::DisplayableObject::ObjectFont	FilletFont ()
	Returns the curve font for T-joint weld type joints Created in NX8.0.0.

NXOpen::DisplayableObject::ObjectWidth	FilletWidth ()
	Returns the curve with for T-joint weld type joints Created in NX8.0.0.

double	GetAngleBetween ()
	Gets the angle between the fillet weld mold faces, and the target faces, or butt weld primary and secondary faces.

bool	GetIsLongPoint ()
	Gets the long point status.

bool	GetJointChanged (NXOpen::Curve *curve)
	Indicates whether joint was changed.

NXOpen::Die::DieLimitsBuilder *	GetJointLimits (NXOpen::Curve *curve)
	Get the limits of an individual joint.

bool	GetMidPointInformation (NXOpen::Weld::WeldJointBuilder::CoordinateSystem desiredCoordinateSystem, NXOpen::Weld::WeldJointBuilder::JointMidPointData *jointMidPointData)
	Gets the joint curve mid point, tangent, and face normals at the mid point from the primary and secondary bodies.

void	GetNewlyCreatedJoints (std::vector< NXOpen::Curve * > &curves, std::vector< NXOpen::Weld::JointItemBuilder * > &newItemBuilder)
	Gets the Weld::JointItemBuilder objects and curves which were just created by Weld::WeldJointBuilder::ShowJoints .

double	GetPrimaryThickness (NXOpen::Curve *curve)
	Gets the primary thickness for a specified joint.

double	GetSecondaryThickness (NXOpen::Curve *curve)
	Gets the primary secondary for a specified joint.

NXOpen::Weld::JointItemBuilder *	GetSingleJoint (NXOpen::Curve *curve)
	Gets the Weld::JointItemBuilder object associated to the input curve.

void	GetVariableBevelAngles (std::vector< double > &variableAngles)
	Gets variable bevel angles.

NXOpen::SelectCurveList *	Joint ()
	Returns the welding joint curves.

NXOpen::Weld::JointItemBuilderList *	JointList ()
	Returns the list of Weld::JointItemBuilder objects.

NXOpen::LineColorFontWidthBuilder *	LapColorFontWidth ()
	Returns the color, font, and width of the lap joint curves.

NXOpen::Die::DieLimitsBuilderList *	LimitList ()
	Returns the list of limit builders.

NXOpen::Die::DieLimitsBuilder *	Limits ()
	Returns the limits of the joint curve span.

void	MarkJointsToKeep ()
	Marks all currently created welding joints so they do not get deleted when Weld::WeldJointBuilder::DeleteAllUnMarkedJoints is called from the dialog.

NXOpen::ScCollector *	MasterEdge ()
	Returns the master edge of a fillet weld.

double	MaximumFaceGap ()
	Returns the maximum face gap used when determining if two bodies intersect.

NXOpen::LineColorFontWidthBuilder *	MechanicalColorFontWidth ()
	Returns the color, font, and width of the mechanical joint curves.

NXString	NamePrefix ()
	Returns the prefix used for the welding joint Design Feature name in Collaborative Product Development mode Created in NX8.5.0.

NXOpen::Weld::JointItemBuilder *	NewItem ()
	Creates a Weld::JointItemBuilder object.

int	NumberSegments ()
	Returns the number of segments to divide a joint when using Weld::WeldJointBuilder::SplitTypesEqualSegments .

NXOpen::ScCollector *	PlacementFace ()
	Returns the placement face of a fillet weld.

NXOpen::ScCollector *	PrimaryEdge ()
	Returns the primary edge of a butt weld.

NXOpen::ScCollector *	PrimaryFace ()
	Returns the primary face of a butt weld.

NXOpen::ScCollector *	SecondaryEdge ()
	Returns the secondary edge of a butt weld.

NXOpen::ScCollector *	SecondaryFace ()
	Returns the secondary face of a butt weld.

void	SetButtColor (int color)
	Sets the color for butt weld type joints Created in NX8.0.0.

void	SetButtFont (NXOpen::DisplayableObject::ObjectFont font)
	Sets the curve font for butt weld type joints Created in NX8.0.0.

void	SetButtWidth (NXOpen::DisplayableObject::ObjectWidth width)
	Sets the curve with for butt weld type joints Created in NX8.0.0.

void	SetCallbackMessage (const NXString &message)
	Sets a message to display after callback processing ends Created in NX8.5.0.

void	SetCallbackMessage (const char *message)
	Sets a message to display after callback processing ends Created in NX8.5.0.

void	SetCreateMethod (NXOpen::Weld::WeldJointBuilder::Types type)
	Sets the creation method Created in NX8.0.0.

void	SetDestination (NXOpen::Weld::WeldJointBuilder::DestinationTypes type)
	Sets the destination to create new joints Created in NX8.0.0.

void	SetDuplicateCheck (bool status)
	Sets the indication to not allow new joints to be created if they are duplicates of exising joints Created in NX8.0.0.

void	SetErrorMessage (const NXString &message)
	Sets an error message to display Created in NX8.5.0.

void	SetErrorMessage (const char *message)
	Sets an error message to display Created in NX8.5.0.

void	SetFilletColor (int color)
	Sets the color for T-joint weld type joints Created in NX8.0.0.

void	SetFilletFont (NXOpen::DisplayableObject::ObjectFont font)
	Sets the curve font for T-joint weld type joints Created in NX8.0.0.

void	SetFilletWidth (NXOpen::DisplayableObject::ObjectWidth width)
	Sets the curve with for T-joint weld type joints Created in NX8.0.0.

void	SetJointChanged (NXOpen::Curve *curve, bool changed)
	Indicate that joint was changed.

void	SetMaximumFaceGap (double gapValue)
	Sets the maximum face gap used when determining if two bodies intersect.

void	SetNamePrefix (const NXString &prefix)
	Sets the prefix used for the welding joint Design Feature name in Collaborative Product Development mode Created in NX8.5.0.

void	SetNamePrefix (const char *prefix)
	Sets the prefix used for the welding joint Design Feature name in Collaborative Product Development mode Created in NX8.5.0.

void	SetNumberSegments (int numberSegments)
	Sets the number of segments to divide a joint when using Weld::WeldJointBuilder::SplitTypesEqualSegments .

void	SetSplitAngle (double angle)
	Sets the split angle to divide a joint when using Weld::WeldJointBuilder::SplitTypesAngle .

void	SetSplitLength (double length)
	Sets the split length to divide a joint when using Weld::WeldJointBuilder::SplitTypesLength .

void	SetSplitOption (NXOpen::Weld::WeldJointBuilder::SplitTypes option)
	Sets the method used to split the joint Created in NX8.0.0.

void	SetType (NXOpen::Weld::WeldJointBuilder::Types type)
	Sets the creation type Created in NX8.0.0.

void	SetVariableBevelAngles (const std::vector< double > &variableAngles)
	This method is for use with the variable bevel callback.

void	SetWeldType (NXOpen::Weld::WeldJointBuilder::WeldTypes type)
	Sets the weld type Created in NX8.0.0.

void	SetWorkPart (NXOpen::Part *part)
	Sets the saved work part Created in NX8.5.0.

NXOpen::SelectBodyList *	ShipComponent ()
	Returns the components on which the welding joints will be created.

void	ShowJoints ()
	Show joints will create joints using the method set by Weld::WeldJointBuilder::Types .

NXOpen::LineColorFontWidthBuilder *	SocketColorFontWidth ()
	Returns the color, font, and width of the socket joint curves.

void	Split ()
	Splits all joints set by Weld::WeldJointBuilder::Joint defined by Weld::WeldJointBuilder::SplitTypes .

double	SplitAngle ()
	Returns the split angle to divide a joint when using Weld::WeldJointBuilder::SplitTypesAngle .

double	SplitLength ()
	Returns the split length to divide a joint when using Weld::WeldJointBuilder::SplitTypesLength .

NXOpen::Weld::WeldJointBuilder::SplitTypes	SplitOption ()
	Returns the method used to split the joint Created in NX8.0.0.

NXOpen::ScCollector *	TargetFace ()
	Returns the target face of a fillet weld.

NXOpen::LineColorFontWidthBuilder *	TJointColorFontWidth ()
	Returns the color, font, and width of the T-joint curves.

NXOpen::Weld::WeldJointBuilder::Types	Type ()
	Returns the creation type Created in NX8.0.0.

void	UpdateCollectors (NXOpen::Curve *jointCurve)
	Updates the main collectors by copying data from Joint.

void	UpdateJointAfterLimitsChange ()
	Updates the joint curve after the limits change.

void	UpdateJointAfterLimitsChange (NXOpen::Die::DieLimitsBuilder *limits)
	Updates the joint curve after the limits change.

void	UpdateJointType (NXOpen::Weld::WeldJointBuilder::WeldTypes type)
	Updates all joints set by Weld::WeldJointBuilder::Joint to have the given type.

NXOpen::Weld::CharacteristicsBuilder *	WeldingCharacteristics ()
	Returns the collection of welding characteristics defined by attributes.

NXOpen::Weld::WeldJointBuilder::WeldTypes	WeldType ()
	Returns the weld type Created in NX8.0.0.

NXOpen::Part *	WorkPart ()
	Returns the saved work part Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Weld::StructureWeldBuilder
std::vector < NXOpen::Assemblies::Component * >	GetCommittedComponents ()
	This method returns the component parts that are created by Builder::Commit .

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Used to set custom edge preparation parameters of a Weld::WeldJoint feaure.

To create a new instance of this class, use Weld::WeldManager::CreateJointExitBuilder
Default values.

Property

Value

NumberSegments

2

RootOpening

0

SplitAngle

5.0

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Weld::JointExitBuilder::BodySide

Settings to indicate the side the positions should be applied to.

Enumerator:

BodySideFirst

the first side.

For fillet welds only this needs to be specified.

BodySideSecond

the other side.

This is only used for butt welds.

enum NXOpen::Weld::JointExitBuilder::Positions

Settings to indicate the desired position of edge preporation thickness and angle.

Enumerator:

PositionsUpperChamfer	the upper chamfer position
PositionsUpper	the upper position
PositionsMiddle	the middle position
PositionsLower	the lower position
PositionsLowerChamfer	the lower chamfer position

Member Function Documentation

void NXOpen::Weld::JointExitBuilder::GetEdgePrepValues	(	NXOpen::Weld::JointExitBuilder::Positions	position,
		double *	thickness,
		double *	angle
	)

Gets the thickness and angle combination to set for the desired weld position
Created in NX8.0.0.

License requirements : None

Parameters

position	Position of edge preparation values to set.
thickness	The thickness depth for this position.
angle	The angle of edge preporation for this position.

NXOpen::Weld::JointExitBuilder::FilletSizes NXOpen::Weld::JointExitBuilder::GetFilletLengths ( )

Gets the fillet weld values for the side of the welding joint.

Returns: The fillet sizes for the side of the welding joint
Created in NX8.0.0.

License requirements : None

NXOpen::Weld::JointExitBuilder::FilletSizes NXOpen::Weld::JointExitBuilder::GetOppositeFilletLengths ( )

Gets the fillet weld values for the opposite side of the welding joint.

Returns: The fillet sizes for the opposite side of the welding joint
Created in NX8.0.0.

License requirements : None

double NXOpen::Weld::JointExitBuilder::RootOpening ( )

Returns the desired gap between bodies being welded
Created in NX8.0.0.

License requirements : None

void NXOpen::Weld::JointExitBuilder::SetBothFilletLengths ( const NXOpen::Weld::JointExitBuilder::FilletSizes & sizes )

Sets the symmetric fillet weld values for a welding joint.

Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

sizes The symmetric fillet sizes for both sides of the welding joint

void NXOpen::Weld::JointExitBuilder::SetEdgePrepValues	(	NXOpen::Weld::JointExitBuilder::Positions	position,
		double	thickness,
		double	angle
	)

This method should be called multiple times.

First set the BodySide then call this method for each Position. For Butt welds this function should be used to set each side. After the primary side is set, change the BodySide and call this method for the secondary side. For Fillet welds, only the primary side needs to be set.

Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

position	Position of edge preparation values to set.
thickness	The thickness depth for this position.
angle	The angle of edge preporation for this position.

void NXOpen::Weld::JointExitBuilder::SetFilletLengths ( const NXOpen::Weld::JointExitBuilder::FilletSizes & sizes )

Sets the fillet weld values for the side of the welding joint.

Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

sizes The fillet sizes for the side of the welding joint

void NXOpen::Weld::JointExitBuilder::SetOppositeFilletLengths ( const NXOpen::Weld::JointExitBuilder::FilletSizes & sizes )

Sets the fillet weld values for the opposite side of the welding joint.

Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

sizes The fillet sizes for the opposite side of the welding joint

void NXOpen::Weld::JointExitBuilder::SetRootOpening ( double rootOpening )

Sets the desired gap between bodies being welded
Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

rootOpening rootopening

void NXOpen::Weld::JointExitBuilder::SetSide ( NXOpen::Weld::JointExitBuilder::BodySide side )

Sets the side edge preparation values will be applied to
Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

side side

NXOpen::Weld::JointExitBuilder::BodySide NXOpen::Weld::JointExitBuilder::Side ( )

Returns the side edge preparation values will be applied to
Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Weld_JointExitBuilder.hxx

Classes

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
