Used to create or edit a Weld::WeldJoint feature. More...

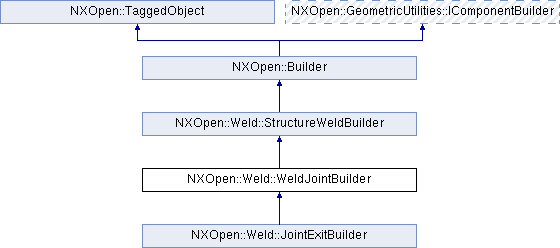

Inheritance diagram for NXOpen::Weld::WeldJointBuilder:

Classes
struct	JointMidPointData
	Joint evaluation information at the mid point. More...

Public Types
enum	CoordinateSystem { CoordinateSystemAbsolute, CoordinateSystemShip }
	Coordinate system specification. More...

enum	DestinationTypes { DestinationTypesWorkPart, DestinationTypesNewComponent }
	Where to create new joints. More...

enum	SplitTypes { SplitTypesEqualSegments, SplitTypesLimits, SplitTypesAngle, SplitTypesComputedAngle, SplitTypesLength, SplitTypesNone }
	Joint splitting options. More...

enum	Types { TypesCreateAutomatic, TypesCreateManual, TypesCreateMultiple, TypesCreateAttributes }
	Creation method. More...

enum	WeldTypes { WeldTypesAny, WeldTypesGroove, WeldTypesFillet, WeldTypesCorner, WeldTypesLap, WeldTypesSocket, WeldTypesMechanical }
	Weld types. More...

Public Member Functions
NXOpen::ScCollector *	BackingFace ()
	Returns the backing face.

int	ButtColor ()
	Returns the color for butt weld type joints Created in NX8.0.0.

NXOpen::LineColorFontWidthBuilder *	ButtColorFontWidth ()
	Returns the color, font, and width of the butt joint curves.

NXOpen::DisplayableObject::ObjectFont	ButtFont ()
	Returns the curve font for butt weld type joints Created in NX8.0.0.

NXOpen::DisplayableObject::ObjectWidth	ButtWidth ()
	Returns the curve with for butt weld type joints Created in NX8.0.0.

void	CopyLimits (NXOpen::Die::DieLimitsBuilder *limits)
	Copy input limits to builder limits Created in NX8.5.0.

NXOpen::LineColorFontWidthBuilder *	CornerColorFontWidth ()
	Returns the color, font, and width of the corner joint curves.

NXOpen::Curve *	CreateLimitsPath (NXOpen::Curve *jointCurve)
	Creates the path to be used for the limits.

NXOpen::Weld::WeldJointBuilder::Types	CreateMethod ()
	Returns the creation method Created in NX8.0.0.

void	CreateSingleJointFromFeature (NXOpen::Curve *featureCurve, bool updateBuilder)
	Creates a joint from a feature.

void	Delete ()
	Deletes all joints set by Weld::WeldJointBuilder::Joint .

void	DeleteAllUnMarkedJoints ()
	Deletes any joints that were not marked with a call to Weld::WeldJointBuilder::MarkJointsToKeep .

NXOpen::Weld::WeldJointBuilder::DestinationTypes	Destination ()
	Returns the destination to create new joints Created in NX8.0.0.

bool	DuplicateCheck ()
	Returns the indication to not allow new joints to be created if they are duplicates of exising joints Created in NX8.0.0.

int	FilletColor ()
	Returns the color for T-joint weld type joints Created in NX8.0.0.

NXOpen::DisplayableObject::ObjectFont	FilletFont ()
	Returns the curve font for T-joint weld type joints Created in NX8.0.0.

NXOpen::DisplayableObject::ObjectWidth	FilletWidth ()
	Returns the curve with for T-joint weld type joints Created in NX8.0.0.

double	GetAngleBetween ()
	Gets the angle between the fillet weld mold faces, and the target faces, or butt weld primary and secondary faces.

bool	GetIsLongPoint ()
	Gets the long point status.

bool	GetJointChanged (NXOpen::Curve *curve)
	Indicates whether joint was changed.

NXOpen::Die::DieLimitsBuilder *	GetJointLimits (NXOpen::Curve *curve)
	Get the limits of an individual joint.

bool	GetMidPointInformation (NXOpen::Weld::WeldJointBuilder::CoordinateSystem desiredCoordinateSystem, NXOpen::Weld::WeldJointBuilder::JointMidPointData *jointMidPointData)
	Gets the joint curve mid point, tangent, and face normals at the mid point from the primary and secondary bodies.

void	GetNewlyCreatedJoints (std::vector< NXOpen::Curve * > &curves, std::vector< NXOpen::Weld::JointItemBuilder * > &newItemBuilder)
	Gets the Weld::JointItemBuilder objects and curves which were just created by Weld::WeldJointBuilder::ShowJoints .

double	GetPrimaryThickness (NXOpen::Curve *curve)
	Gets the primary thickness for a specified joint.

double	GetSecondaryThickness (NXOpen::Curve *curve)
	Gets the primary secondary for a specified joint.

NXOpen::Weld::JointItemBuilder *	GetSingleJoint (NXOpen::Curve *curve)
	Gets the Weld::JointItemBuilder object associated to the input curve.

void	GetVariableBevelAngles (std::vector< double > &variableAngles)
	Gets variable bevel angles.

NXOpen::SelectCurveList *	Joint ()
	Returns the welding joint curves.

NXOpen::Weld::JointItemBuilderList *	JointList ()
	Returns the list of Weld::JointItemBuilder objects.

NXOpen::LineColorFontWidthBuilder *	LapColorFontWidth ()
	Returns the color, font, and width of the lap joint curves.

NXOpen::Die::DieLimitsBuilderList *	LimitList ()
	Returns the list of limit builders.

NXOpen::Die::DieLimitsBuilder *	Limits ()
	Returns the limits of the joint curve span.

void	MarkJointsToKeep ()
	Marks all currently created welding joints so they do not get deleted when Weld::WeldJointBuilder::DeleteAllUnMarkedJoints is called from the dialog.

NXOpen::ScCollector *	MasterEdge ()
	Returns the master edge of a fillet weld.

double	MaximumFaceGap ()
	Returns the maximum face gap used when determining if two bodies intersect.

NXOpen::LineColorFontWidthBuilder *	MechanicalColorFontWidth ()
	Returns the color, font, and width of the mechanical joint curves.

NXString	NamePrefix ()
	Returns the prefix used for the welding joint Design Feature name in Collaborative Product Development mode Created in NX8.5.0.

NXOpen::Weld::JointItemBuilder *	NewItem ()
	Creates a Weld::JointItemBuilder object.

int	NumberSegments ()
	Returns the number of segments to divide a joint when using Weld::WeldJointBuilder::SplitTypesEqualSegments .

NXOpen::ScCollector *	PlacementFace ()
	Returns the placement face of a fillet weld.

NXOpen::ScCollector *	PrimaryEdge ()
	Returns the primary edge of a butt weld.

NXOpen::ScCollector *	PrimaryFace ()
	Returns the primary face of a butt weld.

NXOpen::ScCollector *	SecondaryEdge ()
	Returns the secondary edge of a butt weld.

NXOpen::ScCollector *	SecondaryFace ()
	Returns the secondary face of a butt weld.

void	SetButtColor (int color)
	Sets the color for butt weld type joints Created in NX8.0.0.

void	SetButtFont (NXOpen::DisplayableObject::ObjectFont font)
	Sets the curve font for butt weld type joints Created in NX8.0.0.

void	SetButtWidth (NXOpen::DisplayableObject::ObjectWidth width)
	Sets the curve with for butt weld type joints Created in NX8.0.0.

void	SetCallbackMessage (const NXString &message)
	Sets a message to display after callback processing ends Created in NX8.5.0.

void	SetCallbackMessage (const char *message)
	Sets a message to display after callback processing ends Created in NX8.5.0.

void	SetCreateMethod (NXOpen::Weld::WeldJointBuilder::Types type)
	Sets the creation method Created in NX8.0.0.

void	SetDestination (NXOpen::Weld::WeldJointBuilder::DestinationTypes type)
	Sets the destination to create new joints Created in NX8.0.0.

void	SetDuplicateCheck (bool status)
	Sets the indication to not allow new joints to be created if they are duplicates of exising joints Created in NX8.0.0.

void	SetErrorMessage (const NXString &message)
	Sets an error message to display Created in NX8.5.0.

void	SetErrorMessage (const char *message)
	Sets an error message to display Created in NX8.5.0.

void	SetFilletColor (int color)
	Sets the color for T-joint weld type joints Created in NX8.0.0.

void	SetFilletFont (NXOpen::DisplayableObject::ObjectFont font)
	Sets the curve font for T-joint weld type joints Created in NX8.0.0.

void	SetFilletWidth (NXOpen::DisplayableObject::ObjectWidth width)
	Sets the curve with for T-joint weld type joints Created in NX8.0.0.

void	SetJointChanged (NXOpen::Curve *curve, bool changed)
	Indicate that joint was changed.

void	SetMaximumFaceGap (double gapValue)
	Sets the maximum face gap used when determining if two bodies intersect.

void	SetNamePrefix (const NXString &prefix)
	Sets the prefix used for the welding joint Design Feature name in Collaborative Product Development mode Created in NX8.5.0.

void	SetNamePrefix (const char *prefix)
	Sets the prefix used for the welding joint Design Feature name in Collaborative Product Development mode Created in NX8.5.0.

void	SetNumberSegments (int numberSegments)
	Sets the number of segments to divide a joint when using Weld::WeldJointBuilder::SplitTypesEqualSegments .

void	SetSplitAngle (double angle)
	Sets the split angle to divide a joint when using Weld::WeldJointBuilder::SplitTypesAngle .

void	SetSplitLength (double length)
	Sets the split length to divide a joint when using Weld::WeldJointBuilder::SplitTypesLength .

void	SetSplitOption (NXOpen::Weld::WeldJointBuilder::SplitTypes option)
	Sets the method used to split the joint Created in NX8.0.0.

void	SetType (NXOpen::Weld::WeldJointBuilder::Types type)
	Sets the creation type Created in NX8.0.0.

void	SetVariableBevelAngles (const std::vector< double > &variableAngles)
	This method is for use with the variable bevel callback.

void	SetWeldType (NXOpen::Weld::WeldJointBuilder::WeldTypes type)
	Sets the weld type Created in NX8.0.0.

void	SetWorkPart (NXOpen::Part *part)
	Sets the saved work part Created in NX8.5.0.

NXOpen::SelectBodyList *	ShipComponent ()
	Returns the components on which the welding joints will be created.

void	ShowJoints ()
	Show joints will create joints using the method set by Weld::WeldJointBuilder::Types .

NXOpen::LineColorFontWidthBuilder *	SocketColorFontWidth ()
	Returns the color, font, and width of the socket joint curves.

void	Split ()
	Splits all joints set by Weld::WeldJointBuilder::Joint defined by Weld::WeldJointBuilder::SplitTypes .

double	SplitAngle ()
	Returns the split angle to divide a joint when using Weld::WeldJointBuilder::SplitTypesAngle .

double	SplitLength ()
	Returns the split length to divide a joint when using Weld::WeldJointBuilder::SplitTypesLength .

NXOpen::Weld::WeldJointBuilder::SplitTypes	SplitOption ()
	Returns the method used to split the joint Created in NX8.0.0.

NXOpen::ScCollector *	TargetFace ()
	Returns the target face of a fillet weld.

NXOpen::LineColorFontWidthBuilder *	TJointColorFontWidth ()
	Returns the color, font, and width of the T-joint curves.

NXOpen::Weld::WeldJointBuilder::Types	Type ()
	Returns the creation type Created in NX8.0.0.

void	UpdateCollectors (NXOpen::Curve *jointCurve)
	Updates the main collectors by copying data from Joint.

void	UpdateJointAfterLimitsChange ()
	Updates the joint curve after the limits change.

void	UpdateJointAfterLimitsChange (NXOpen::Die::DieLimitsBuilder *limits)
	Updates the joint curve after the limits change.

void	UpdateJointType (NXOpen::Weld::WeldJointBuilder::WeldTypes type)
	Updates all joints set by Weld::WeldJointBuilder::Joint to have the given type.

NXOpen::Weld::CharacteristicsBuilder *	WeldingCharacteristics ()
	Returns the collection of welding characteristics defined by attributes.

NXOpen::Weld::WeldJointBuilder::WeldTypes	WeldType ()
	Returns the weld type Created in NX8.0.0.

NXOpen::Part *	WorkPart ()
	Returns the saved work part Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Weld::StructureWeldBuilder
std::vector < NXOpen::Assemblies::Component * >	GetCommittedComponents ()
	This method returns the component parts that are created by Builder::Commit .

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Used to create or edit a Weld::WeldJoint feature.

To create a new instance of this class, use Weld::WeldManager::CreateJointBuilder
Default values.

Property

Value

NumberSegments

2

SplitAngle

5.0

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Weld::WeldJointBuilder::CoordinateSystem

Coordinate system specification.

Enumerator:

CoordinateSystemAbsolute	Desired points and vectors should be in absolute coordinates.
CoordinateSystemShip	Desired points and vectors should be in ship coordinate system.

enum NXOpen::Weld::WeldJointBuilder::DestinationTypes

Where to create new joints.

Enumerator:

DestinationTypesWorkPart	Create new joints in work part.
DestinationTypesNewComponent	Create a new componenent for each joint under the work part.

enum NXOpen::Weld::WeldJointBuilder::SplitTypes

Joint splitting options.

Enumerator:

SplitTypesEqualSegments	Specified number of equal segments.
SplitTypesLimits	At limits defined by Weld::WeldJointBuilder::LimitList .
SplitTypesAngle	At specifed angle.
SplitTypesComputedAngle	At angle computed from geometry and tables.
SplitTypesLength	At equal arc length.
SplitTypesNone	No split.

enum NXOpen::Weld::WeldJointBuilder::Types

Creation method.

Enumerator:

TypesCreateAutomatic	Automatic weld joint creation.
TypesCreateManual	Manual weld joint creation.
TypesCreateMultiple	Create multiple weld joints from manual input.
TypesCreateAttributes	Create weld joints from attributed ship structures data.

enum NXOpen::Weld::WeldJointBuilder::WeldTypes

Weld types.

Enumerator:

WeldTypesAny	Any Joint type.
WeldTypesGroove	Groove joint.
WeldTypesFillet	T-Joint.
WeldTypesCorner	Corner joint.
WeldTypesLap	Lap joint.
WeldTypesSocket	Socket joint for pipe welding.
WeldTypesMechanical	Mechanical joint for pipe welding.

Member Function Documentation

NXOpen::ScCollector* NXOpen::Weld::WeldJointBuilder::BackingFace ( )

Returns the backing face.

Created in NX9.0.0.

License requirements : None

int NXOpen::Weld::WeldJointBuilder::ButtColor ( )

Returns the color for butt weld type joints
Created in NX8.0.0.

License requirements : None

NXOpen::LineColorFontWidthBuilder* NXOpen::Weld::WeldJointBuilder::ButtColorFontWidth ( )

Returns the color, font, and width of the butt joint curves.

Created in NX9.0.0.

License requirements : None

NXOpen::DisplayableObject::ObjectFont NXOpen::Weld::WeldJointBuilder::ButtFont ( )

Returns the curve font for butt weld type joints
Created in NX8.0.0.

License requirements : None

NXOpen::DisplayableObject::ObjectWidth NXOpen::Weld::WeldJointBuilder::ButtWidth ( )

Returns the curve with for butt weld type joints
Created in NX8.0.0.

License requirements : None

void NXOpen::Weld::WeldJointBuilder::CopyLimits ( NXOpen::Die::DieLimitsBuilder * limits )

Copy input limits to builder limits
Created in NX8.5.0.

License requirements : None

Parameters

limits limits to copy

NXOpen::LineColorFontWidthBuilder* NXOpen::Weld::WeldJointBuilder::CornerColorFontWidth ( )

Returns the color, font, and width of the corner joint curves.

Created in NX9.0.0.

License requirements : None

NXOpen::Curve* NXOpen::Weld::WeldJointBuilder::CreateLimitsPath ( NXOpen::Curve * jointCurve )

Creates the path to be used for the limits.

Returns: Resulting path.
Created in NX8.0.0.

License requirements : None

Parameters

jointCurve Joint curve used to create path.

NXOpen::Weld::WeldJointBuilder::Types NXOpen::Weld::WeldJointBuilder::CreateMethod ( )

Returns the creation method
Created in NX8.0.0.

License requirements : None

void NXOpen::Weld::WeldJointBuilder::CreateSingleJointFromFeature	(	NXOpen::Curve *	featureCurve,
		bool	updateBuilder
	)

Creates a joint from a feature.

Created in NX8.0.0.

License requirements : None

Parameters

featureCurve	Weld Joint feature curve
updateBuilder	indicates where builder should be updated with information from the feature

void NXOpen::Weld::WeldJointBuilder::Delete ( )

Deletes all joints set by Weld::WeldJointBuilder::Joint .

Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

void NXOpen::Weld::WeldJointBuilder::DeleteAllUnMarkedJoints ( )

Deletes any joints that were not marked with a call to Weld::WeldJointBuilder::MarkJointsToKeep .

Created in NX8.5.0.

License requirements : structure_weld ("STRUCTURE WELD")

NXOpen::Weld::WeldJointBuilder::DestinationTypes NXOpen::Weld::WeldJointBuilder::Destination ( )

Returns the destination to create new joints
Created in NX8.0.0.

License requirements : None

bool NXOpen::Weld::WeldJointBuilder::DuplicateCheck ( )

Returns the indication to not allow new joints to be created if they are duplicates of exising joints
Created in NX8.0.0.

License requirements : None

int NXOpen::Weld::WeldJointBuilder::FilletColor ( )

Returns the color for T-joint weld type joints
Created in NX8.0.0.

License requirements : None

NXOpen::DisplayableObject::ObjectFont NXOpen::Weld::WeldJointBuilder::FilletFont ( )

Returns the curve font for T-joint weld type joints
Created in NX8.0.0.

License requirements : None

NXOpen::DisplayableObject::ObjectWidth NXOpen::Weld::WeldJointBuilder::FilletWidth ( )

Returns the curve with for T-joint weld type joints
Created in NX8.0.0.

License requirements : None

double NXOpen::Weld::WeldJointBuilder::GetAngleBetween ( )

Gets the angle between the fillet weld mold faces, and the target faces, or butt weld primary and secondary faces.

Returns: Created in NX8.0.0.

License requirements : None

bool NXOpen::Weld::WeldJointBuilder::GetIsLongPoint ( )

Gets the long point status.

A long point indicates only trimming and no extension is needed to to meeting the body being welded to.

Returns: Created in NX8.0.0.

License requirements : None

bool NXOpen::Weld::WeldJointBuilder::GetJointChanged ( NXOpen::Curve * curve )

Indicates whether joint was changed.

Returns: Created in NX8.0.0.

License requirements : None

Parameters

curve Joint curve to check

NXOpen::Die::DieLimitsBuilder* NXOpen::Weld::WeldJointBuilder::GetJointLimits ( NXOpen::Curve * curve )

Get the limits of an individual joint.

Returns: Created in NX8.0.0.

License requirements : None

Parameters

curve curve

bool NXOpen::Weld::WeldJointBuilder::GetMidPointInformation	(	NXOpen::Weld::WeldJointBuilder::CoordinateSystem	desiredCoordinateSystem,
		NXOpen::Weld::WeldJointBuilder::JointMidPointData *	jointMidPointData
	)

Gets the joint curve mid point, tangent, and face normals at the mid point from the primary and secondary bodies.

Returns: Equals true if data was returned.
Created in NX8.5.0.

License requirements : None

Parameters

desiredCoordinateSystem	Coordinate system of data returned in jointMidPointData
jointMidPointData	The joint mid point, tangent and face normals.

void NXOpen::Weld::WeldJointBuilder::GetNewlyCreatedJoints	(	std::vector< NXOpen::Curve * > &	curves,
		std::vector< NXOpen::Weld::JointItemBuilder * > &	newItemBuilder
	)

Gets the Weld::JointItemBuilder objects and curves which were just created by Weld::WeldJointBuilder::ShowJoints .

Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

curves	curves
newItemBuilder	newitembuilder

double NXOpen::Weld::WeldJointBuilder::GetPrimaryThickness ( NXOpen::Curve * curve )

Gets the primary thickness for a specified joint.

Returns: Created in NX8.0.0.

License requirements : None

Parameters

curve curve

double NXOpen::Weld::WeldJointBuilder::GetSecondaryThickness ( NXOpen::Curve * curve )

Gets the primary secondary for a specified joint.

Returns: Created in NX8.0.0.

License requirements : None

Parameters

curve curve

NXOpen::Weld::JointItemBuilder* NXOpen::Weld::WeldJointBuilder::GetSingleJoint ( NXOpen::Curve * curve )

Gets the Weld::JointItemBuilder object associated to the input curve.

Returns: Created in NX8.0.0.

License requirements : None

Parameters

curve Joint curve

void NXOpen::Weld::WeldJointBuilder::GetVariableBevelAngles ( std::vector< double > & variableAngles )

Gets variable bevel angles.

This method is for use with the variable bevel callback.
Created in NX8.5.0.

License requirements : None

Parameters

variableAngles variableangles

NXOpen::SelectCurveList* NXOpen::Weld::WeldJointBuilder::Joint ( )

Returns the welding joint curves.

Created in NX8.0.0.

License requirements : None

NXOpen::Weld::JointItemBuilderList* NXOpen::Weld::WeldJointBuilder::JointList ( )

Returns the list of Weld::JointItemBuilder objects.

Created in NX8.0.0.

License requirements : None

NXOpen::LineColorFontWidthBuilder* NXOpen::Weld::WeldJointBuilder::LapColorFontWidth ( )

Returns the color, font, and width of the lap joint curves.

Created in NX9.0.0.

License requirements : None

NXOpen::Die::DieLimitsBuilderList* NXOpen::Weld::WeldJointBuilder::LimitList ( )

Returns the list of limit builders.

Created in NX8.0.0.

License requirements : None

NXOpen::Die::DieLimitsBuilder* NXOpen::Weld::WeldJointBuilder::Limits ( )

Returns the limits of the joint curve span.

Created in NX8.0.0.

License requirements : None

void NXOpen::Weld::WeldJointBuilder::MarkJointsToKeep ( )

Marks all currently created welding joints so they do not get deleted when Weld::WeldJointBuilder::DeleteAllUnMarkedJoints is called from the dialog.

Created in NX8.5.0.

License requirements : structure_weld ("STRUCTURE WELD")

NXOpen::ScCollector* NXOpen::Weld::WeldJointBuilder::MasterEdge ( )

Returns the master edge of a fillet weld.

Created in NX8.0.0.

License requirements : None

double NXOpen::Weld::WeldJointBuilder::MaximumFaceGap ( )

Returns the maximum face gap used when determining if two bodies intersect.

Created in NX9.0.0.

License requirements : None

NXOpen::LineColorFontWidthBuilder* NXOpen::Weld::WeldJointBuilder::MechanicalColorFontWidth ( )

Returns the color, font, and width of the mechanical joint curves.

Created in NX9.0.0.

License requirements : None

NXString NXOpen::Weld::WeldJointBuilder::NamePrefix ( )

Returns the prefix used for the welding joint Design Feature name in Collaborative Product Development mode
Created in NX8.5.0.

License requirements : None

NXOpen::Weld::JointItemBuilder* NXOpen::Weld::WeldJointBuilder::NewItem ( )

Creates a Weld::JointItemBuilder object.

Returns: Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

int NXOpen::Weld::WeldJointBuilder::NumberSegments ( )

Returns the number of segments to divide a joint when using Weld::WeldJointBuilder::SplitTypesEqualSegments .

Created in NX8.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Weld::WeldJointBuilder::PlacementFace ( )

Returns the placement face of a fillet weld.

For example, on a profile it is the face that touches the plate.
Created in NX8.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Weld::WeldJointBuilder::PrimaryEdge ( )

Returns the primary edge of a butt weld.

Created in NX8.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Weld::WeldJointBuilder::PrimaryFace ( )

Returns the primary face of a butt weld.

Created in NX8.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Weld::WeldJointBuilder::SecondaryEdge ( )

Returns the secondary edge of a butt weld.

Created in NX8.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Weld::WeldJointBuilder::SecondaryFace ( )

Returns the secondary face of a butt weld.

Created in NX8.0.0.

License requirements : None

void NXOpen::Weld::WeldJointBuilder::SetButtColor ( int color )

Sets the color for butt weld type joints
Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

color color

void NXOpen::Weld::WeldJointBuilder::SetButtFont ( NXOpen::DisplayableObject::ObjectFont font )

Sets the curve font for butt weld type joints
Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

font font

void NXOpen::Weld::WeldJointBuilder::SetButtWidth ( NXOpen::DisplayableObject::ObjectWidth width )

Sets the curve with for butt weld type joints
Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

width width

void NXOpen::Weld::WeldJointBuilder::SetCallbackMessage ( const NXString & message )

Sets a message to display after callback processing ends
Created in NX8.5.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

message Message to display to user

void NXOpen::Weld::WeldJointBuilder::SetCallbackMessage ( const char * message )

Sets a message to display after callback processing ends
Created in NX8.5.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

message Message to display to user

void NXOpen::Weld::WeldJointBuilder::SetCreateMethod ( NXOpen::Weld::WeldJointBuilder::Types type )

Sets the creation method
Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

type type

void NXOpen::Weld::WeldJointBuilder::SetDestination ( NXOpen::Weld::WeldJointBuilder::DestinationTypes type )

Sets the destination to create new joints
Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

type type

void NXOpen::Weld::WeldJointBuilder::SetDuplicateCheck ( bool status )

Sets the indication to not allow new joints to be created if they are duplicates of exising joints
Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

status status

void NXOpen::Weld::WeldJointBuilder::SetErrorMessage ( const NXString & message )

Sets an error message to display
Created in NX8.5.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

message Message to display to user

void NXOpen::Weld::WeldJointBuilder::SetErrorMessage ( const char * message )

Sets an error message to display
Created in NX8.5.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

message Message to display to user

void NXOpen::Weld::WeldJointBuilder::SetFilletColor ( int color )

Sets the color for T-joint weld type joints
Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

color color

void NXOpen::Weld::WeldJointBuilder::SetFilletFont ( NXOpen::DisplayableObject::ObjectFont font )

Sets the curve font for T-joint weld type joints
Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

font font

void NXOpen::Weld::WeldJointBuilder::SetFilletWidth ( NXOpen::DisplayableObject::ObjectWidth width )

Sets the curve with for T-joint weld type joints
Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

width width

void NXOpen::Weld::WeldJointBuilder::SetJointChanged	(	NXOpen::Curve *	curve,
		bool	changed
	)

Indicate that joint was changed.

Created in NX8.0.0.

License requirements : None

Parameters

curve	Joint curve to check
changed	changed

void NXOpen::Weld::WeldJointBuilder::SetMaximumFaceGap ( double gapValue )

Sets the maximum face gap used when determining if two bodies intersect.

Created in NX9.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

gapValue gapvalue

void NXOpen::Weld::WeldJointBuilder::SetNamePrefix ( const NXString & prefix )

Sets the prefix used for the welding joint Design Feature name in Collaborative Product Development mode
Created in NX8.5.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

prefix prefix

void NXOpen::Weld::WeldJointBuilder::SetNamePrefix ( const char * prefix )

Sets the prefix used for the welding joint Design Feature name in Collaborative Product Development mode
Created in NX8.5.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

prefix prefix

void NXOpen::Weld::WeldJointBuilder::SetNumberSegments ( int numberSegments )

Sets the number of segments to divide a joint when using Weld::WeldJointBuilder::SplitTypesEqualSegments .

Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

numberSegments numbersegments

void NXOpen::Weld::WeldJointBuilder::SetSplitAngle ( double angle )

Sets the split angle to divide a joint when using Weld::WeldJointBuilder::SplitTypesAngle .

Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

angle angle

void NXOpen::Weld::WeldJointBuilder::SetSplitLength ( double length )

Sets the split length to divide a joint when using Weld::WeldJointBuilder::SplitTypesLength .

Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

length length

void NXOpen::Weld::WeldJointBuilder::SetSplitOption ( NXOpen::Weld::WeldJointBuilder::SplitTypes option )

Sets the method used to split the joint
Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

option option

void NXOpen::Weld::WeldJointBuilder::SetType ( NXOpen::Weld::WeldJointBuilder::Types type )

Sets the creation type
Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

type type

void NXOpen::Weld::WeldJointBuilder::SetVariableBevelAngles ( const std::vector< double > & variableAngles )

This method is for use with the variable bevel callback.

Created in NX8.0.0.

License requirements : None

Parameters

variableAngles the variable angles.

void NXOpen::Weld::WeldJointBuilder::SetWeldType ( NXOpen::Weld::WeldJointBuilder::WeldTypes type )

Sets the weld type
Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

type type

void NXOpen::Weld::WeldJointBuilder::SetWorkPart ( NXOpen::Part * part )

Sets the saved work part
Created in NX8.5.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

part part

NXOpen::SelectBodyList* NXOpen::Weld::WeldJointBuilder::ShipComponent ( )

Returns the components on which the welding joints will be created.

Used when Weld::WeldJointBuilder::Types . is set to Weld::WeldJointBuilder::TypesCreateAutomatic or Weld::WeldJointBuilder::TypesCreateAttributes After setting the components, Weld::WeldJointBuilder::ShowJoints should be called to create the welding joints.
Created in NX8.0.0.

License requirements : None

void NXOpen::Weld::WeldJointBuilder::ShowJoints ( )

Show joints will create joints using the method set by Weld::WeldJointBuilder::Types .

       For @link  Weld::WeldJointBuilder::TypesCreateAutomatic   Weld::WeldJointBuilder::TypesCreateAutomatic @endlink  and @link  Weld::WeldJointBuilder::TypesCreateAttributes   Weld::WeldJointBuilder::TypesCreateAttributes @endlink
       components need to be set using @link Weld::WeldJointBuilder::ShipComponent Weld::WeldJointBuilder::ShipComponent@endlink .  For @link  Weld::WeldJointBuilder::TypesCreateManual   Weld::WeldJointBuilder::TypesCreateManual @endlink ,
       the following need to be set:
       When @link Weld::WeldJointBuilder::WeldTypes Weld::WeldJointBuilder::WeldTypes@endlink  is @link  Weld::WeldJointBuilder::WeldTypesFillet   Weld::WeldJointBuilder::WeldTypesFillet @endlink , the following
       methods need to be called to set the input data: @link Weld::WeldJointBuilder::MasterEdge Weld::WeldJointBuilder::MasterEdge@endlink , @link Weld::WeldJointBuilder::PlacementFace Weld::WeldJointBuilder::PlacementFace@endlink ,
       @link  Weld::WeldJointBuilder::TargetFace   Weld::WeldJointBuilder::TargetFace @endlink .
       When @link Weld::WeldJointBuilder::WeldTypes Weld::WeldJointBuilder::WeldTypes@endlink  is @link  Weld::WeldJointBuilder::WeldTypesGroove   Weld::WeldJointBuilder::WeldTypesGroove @endlink , the following
       methods need to be called to set the input data: @link Weld::WeldJointBuilder::PrimaryFace Weld::WeldJointBuilder::PrimaryFace@endlink , @link Weld::WeldJointBuilder::PrimaryEdge Weld::WeldJointBuilder::PrimaryEdge@endlink ,
       @link  Weld::WeldJointBuilder::SecondaryFace   Weld::WeldJointBuilder::SecondaryFace @endlink , @link  Weld::WeldJointBuilder::SecondaryEdge   Weld::WeldJointBuilder::SecondaryEdge @endlink .

Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

NXOpen::LineColorFontWidthBuilder* NXOpen::Weld::WeldJointBuilder::SocketColorFontWidth ( )

Returns the color, font, and width of the socket joint curves.

Created in NX9.0.0.

License requirements : None

void NXOpen::Weld::WeldJointBuilder::Split ( )

Splits all joints set by Weld::WeldJointBuilder::Joint defined by Weld::WeldJointBuilder::SplitTypes .

Created in NX8.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

double NXOpen::Weld::WeldJointBuilder::SplitAngle ( )

Returns the split angle to divide a joint when using Weld::WeldJointBuilder::SplitTypesAngle .

Created in NX8.0.0.

License requirements : None

double NXOpen::Weld::WeldJointBuilder::SplitLength ( )

Returns the split length to divide a joint when using Weld::WeldJointBuilder::SplitTypesLength .

Created in NX8.0.0.

License requirements : None

NXOpen::Weld::WeldJointBuilder::SplitTypes NXOpen::Weld::WeldJointBuilder::SplitOption ( )

Returns the method used to split the joint
Created in NX8.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Weld::WeldJointBuilder::TargetFace ( )

Returns the target face of a fillet weld.

For example, the plate face that the profile lies on.
Created in NX8.0.0.

License requirements : None

NXOpen::LineColorFontWidthBuilder* NXOpen::Weld::WeldJointBuilder::TJointColorFontWidth ( )

Returns the color, font, and width of the T-joint curves.

Created in NX9.0.0.

License requirements : None

NXOpen::Weld::WeldJointBuilder::Types NXOpen::Weld::WeldJointBuilder::Type ( )

Returns the creation type
Created in NX8.0.0.

License requirements : None

void NXOpen::Weld::WeldJointBuilder::UpdateCollectors ( NXOpen::Curve * jointCurve )

Updates the main collectors by copying data from Joint.

Created in NX8.0.0.

License requirements : None

Parameters

jointCurve Joint curve to use to update collectors

void NXOpen::Weld::WeldJointBuilder::UpdateJointAfterLimitsChange ( )

Updates the joint curve after the limits change.

Created in NX8.0.0.

License requirements : None

void NXOpen::Weld::WeldJointBuilder::UpdateJointAfterLimitsChange ( NXOpen::Die::DieLimitsBuilder * limits )

Updates the joint curve after the limits change.

Created in NX8.0.0.

License requirements : None

Parameters

limits limits that changed

void NXOpen::Weld::WeldJointBuilder::UpdateJointType ( NXOpen::Weld::WeldJointBuilder::WeldTypes type )

Updates all joints set by Weld::WeldJointBuilder::Joint to have the given type.

Created in NX9.0.0.

License requirements : structure_weld ("STRUCTURE WELD")

Parameters

type type

NXOpen::Weld::CharacteristicsBuilder* NXOpen::Weld::WeldJointBuilder::WeldingCharacteristics ( )

Returns the collection of welding characteristics defined by attributes.

Created in NX8.0.0.

License requirements : None

NXOpen::Weld::WeldJointBuilder::WeldTypes NXOpen::Weld::WeldJointBuilder::WeldType ( )

Returns the weld type
Created in NX8.0.0.

License requirements : None

NXOpen::Part* NXOpen::Weld::WeldJointBuilder::WorkPart ( )

Returns the saved work part
Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Weld_WeldJointBuilder.hxx

Classes

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
