Implements the Display Event Object for UDO's
Created in NX5.0.0.
More...

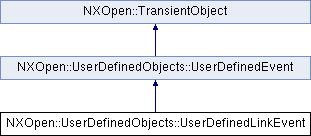

Inheritance diagram for NXOpen::UserDefinedObjects::UserDefinedLinkEvent:
Public Member Functions | |
| NXOpen::TaggedObject * | AssociatedObject () |
| Returns the associated object. | |
| int | LinkStatus () |
| Returns the link status. | |
| int | LinkType () |
| Returns the link type. | |
| virtual | ~UserDefinedLinkEvent () |
| Frees the object from memory. | |
 Public Member Functions inherited from NXOpen::UserDefinedObjects::UserDefinedEvent | |
| NXOpen::UserDefinedObjects::UserDefinedEvent::Reason | EventReason () |
| Returns the reason we fired this event. | |
| NXOpen::UserDefinedObjects::UserDefinedObject * | UserDefinedObject () |
| Returns the related UDO. | |
| virtual | ~UserDefinedEvent () |
| Frees the object from memory. | |
| Public Member Functions inherited from NXOpen::TransientObject | |
| void * | GetHandle () |
| Handle of the internal object represented by this object. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::UserDefinedObjects::UserDefinedEvent | |
| enum | Reason { ReasonDisplay, ReasonDelete, ReasonUpdate, ReasonSelection, ReasonFit, ReasonAttentionPoint, ReasonInfo = 7, ReasonEdit, ReasonSuppress, ReasonScreenSizeFit } |
| Available link types for a UserDefinedObject . More... | |
Detailed Description
Implements the Display Event Object for UDO's
Created in NX5.0.0.
Constructor & Destructor Documentation
|
virtual |
Frees the object from memory.
After this method is called, it is illegal to use the object. In .NET and Java, his method is automatically called when the object is deleted by the garbage collector.
Created in NX5.0.0.
License requirements : None
Member Function Documentation
| NXOpen::TaggedObject* NXOpen::UserDefinedObjects::UserDefinedLinkEvent::AssociatedObject | ( | ) |
Returns the associated object.
Created in NX5.0.0.
License requirements : None
| int NXOpen::UserDefinedObjects::UserDefinedLinkEvent::LinkStatus | ( | ) |
Returns the link status.
Created in NX5.0.0.
License requirements : None
| int NXOpen::UserDefinedObjects::UserDefinedLinkEvent::LinkType | ( | ) |
Returns the link type.
Created in NX5.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- UserDefinedObjects_UserDefinedLinkEvent.hxx
