Implements the Event Object for UDO's
Created in NX5.0.0.
More...
Public Types | |
| enum | Reason { ReasonDisplay, ReasonDelete, ReasonUpdate, ReasonSelection, ReasonFit, ReasonAttentionPoint, ReasonInfo = 7, ReasonEdit, ReasonSuppress, ReasonScreenSizeFit } |
| Available link types for a UserDefinedObject . More... | |
Public Member Functions | |
| NXOpen::UserDefinedObjects::UserDefinedEvent::Reason | EventReason () |
| Returns the reason we fired this event. | |
| NXOpen::UserDefinedObjects::UserDefinedObject * | UserDefinedObject () |
| Returns the related UDO. | |
| virtual | ~UserDefinedEvent () |
| Frees the object from memory. | |

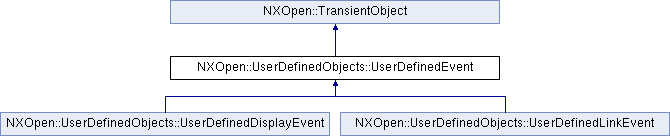

 Public Member Functions inherited from NXOpen::TransientObject | |
| void * | GetHandle () |
| Handle of the internal object represented by this object. | |
Detailed Description
Implements the Event Object for UDO's
Created in NX5.0.0.
Member Enumeration Documentation
Available link types for a UserDefinedObject .
- Enumerator:
ReasonDisplay Display UDO event.
ReasonDelete An associated object was deleted - UDO cleanup event.
ReasonUpdate Update UDO event.
ReasonSelection Select UDO event.
ReasonFit Fit display event.
ReasonAttentionPoint Find Attention Point for the UDO event.
ReasonEdit Edit UDO event.
ReasonSuppress Suppress/Unsuppress UDO event.
ReasonScreenSizeFit Fit operation for screen-size geometry.
Constructor & Destructor Documentation
|
virtual |
Frees the object from memory.
After this method is called, it is illegal to use the object. In .NET and Java, his method is automatically called when the object is deleted by the garbage collector.
Created in NX5.0.0.
License requirements : None
Member Function Documentation
| NXOpen::UserDefinedObjects::UserDefinedEvent::Reason NXOpen::UserDefinedObjects::UserDefinedEvent::EventReason | ( | ) |
Returns the reason we fired this event.
Created in NX5.0.0.
License requirements : None
| NXOpen::UserDefinedObjects::UserDefinedObject* NXOpen::UserDefinedObjects::UserDefinedEvent::UserDefinedObject | ( | ) |
Returns the related UDO.
Created in NX5.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- UserDefinedObjects_UserDefinedEvent.hxx
