NXOpen::UIStyler::StylerItem Class Reference

Represents a Styler Item
Created in NX5.0.0. More...

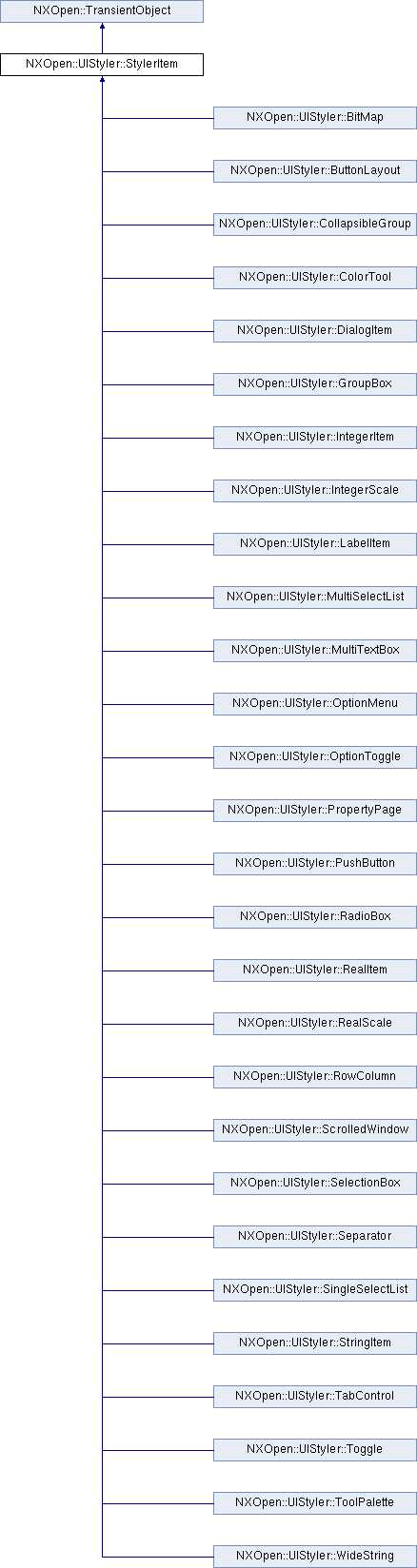

Inheritance diagram for NXOpen::UIStyler::StylerItem:

Public Types
enum	ItemType {   ItemTypeInvalidType = -1, ItemTypeActionButton, ItemTypeDialog, ItemTypeRadioBox,   ItemTypeReal, ItemTypeScaleReal, ItemTypeBitmap, ItemTypeRowColumn,   ItemTypeButtonLayout, ItemTypeScrolledWindow, ItemTypeColorTool, ItemTypeSelectionBox,   ItemTypeSeparator, ItemTypeSingleSelectionList, ItemTypeString, ItemTypeBeginGroup,   ItemTypeInteger, ItemTypeScaleInteger, ItemTypeMultiList, ItemTypeLabel,   ItemTypeMultiLineText, ItemTypeTabControl, ItemTypeOptionMenu, ItemTypeToggle,   ItemTypeOptionToggle, ItemTypeToolPalette, ItemTypeWideString, ItemTypePropertyPage,   ItemTypeCollapsibleGroup }
	Describes kind of action to be taken from callbac. More...

Public Member Functions
NXOpen::UIStyler::StylerItem::ItemType	GetItemType ()
	Gets the dialog item type.
NXOpen::UIStyler::Attachment *	InitializeAttachment ()
	Returns initialized dialog item attachment information.
bool	IsEqualTo (NXOpen::UIStyler::StylerItem *itemToCompare)
	Equates two styler items.
void	SetAttachment (NXOpen::UIStyler::Attachment *attachment)
	Specifies the updated dialog item attachment information Created in NX5.0.0.
virtual	~StylerItem ()
	Free resources associated with the instance.
Public Member Functions inherited from NXOpen::TransientObject
void *	GetHandle ()
	Handle of the internal object represented by this object.

Detailed Description

Represents a Styler Item
Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::UIStyler::StylerItem::ItemType

Describes kind of action to be taken from callbac.

Enumerator:

ItemTypeActionButton	Action Button item.
ItemTypeDialog	Dialog item.
ItemTypeRadioBox	Radio Box item.
ItemTypeReal	Real item.
ItemTypeScaleReal	Real Scale item.
ItemTypeBitmap	Bitmap item.
ItemTypeRowColumn	Row Column item.
ItemTypeButtonLayout	Button Layout item.
ItemTypeScrolledWindow	Scrolled Window item.
ItemTypeColorTool	Color Item.
ItemTypeSelectionBox	Section Box item.
ItemTypeSeparator	Separator item.
ItemTypeSingleSelectionList	Single Selection List item.
ItemTypeString	String item.
ItemTypeBeginGroup	Begin Group item.
ItemTypeInteger	Integer item.
ItemTypeScaleInteger	Scale item.
ItemTypeMultiList	Multi List item.
ItemTypeLabel	Label item.
ItemTypeMultiLineText	Multi-line text item.
ItemTypeTabControl	Tab Control item.
ItemTypeOptionMenu	Option Menu item.
ItemTypeToggle	Toggle item.
ItemTypeOptionToggle	Option Toggle item.
ItemTypeToolPalette	Tool Palette item.
ItemTypeWideString	Wide String item.
ItemTypePropertyPage	Property Page item.
ItemTypeCollapsibleGroup	Callapsible Group item.

Constructor & Destructor Documentation

virtual NXOpen::UIStyler::StylerItem::~StylerItem ( )

virtual

Free resources associated with the instance.

After this method is called, it is illegal to use the object. In .NET or Java, this method is automatically called when the object is deleted by the garbage collector.
Created in NX5.0.0.

License requirements : None

Member Function Documentation

NXOpen::UIStyler::StylerItem::ItemType NXOpen::UIStyler::StylerItem::GetItemType

(

)

Gets the dialog item type.

User can write programs to query this attribute and determine the type of a dialog item in order to determine what further actions should be taken.

Returns

Created in NX5.0.0.

License requirements : None

NXOpen::UIStyler::Attachment* NXOpen::UIStyler::StylerItem::InitializeAttachment

(

)

Returns initialized dialog item attachment information.

Returns

attachment object
Created in NX5.0.0.

License requirements : None

bool NXOpen::UIStyler::StylerItem::IsEqualTo

(

NXOpen::UIStyler::StylerItem *

itemToCompare

)

Equates two styler items.

Returns

Created in NX5.0.0.

License requirements : None

Parameters

itemToCompare

styler item to compare

void NXOpen::UIStyler::StylerItem::SetAttachment

(

NXOpen::UIStyler::Attachment *

attachment

)

Specifies the updated dialog item attachment information
Created in NX5.0.0.

License requirements : None

Parameters

attachment

attachment object

---

The documentation for this class was generated from the following file:

• UIStyler_StylerItem.hxx
