Represents a scrap design builder   <br> To create a new instance of this class, use @link Tooling::ScrapDesignCollection::CreateScrapDesignBuilder  Tooling::ScrapDesignCollection::CreateScrapDesignBuilder @endlink  <br>

Default values. More...

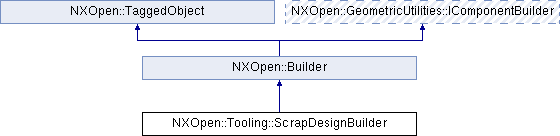

Inheritance diagram for NXOpen::Tooling::ScrapDesignBuilder:

Public Types
enum	AddonType { AddonTypeOverlap, AddonTypeOvercut, AddonTypeTrimming, AddonTypeUserDefined }
	Specifies the add-on type. More...

enum	Body { BodyCreate, BodyEdit, BodyAddon, BodyGrouping }
	Specifies the operation type of scraps. More...

enum	DefScrapType { DefScrapTypePiercing, DefScrapTypePiloting }
	Specifies the definition type of scraps. More...

enum	EditScrapType { EditScrapTypeSplit, EditScrapTypeMerge, EditScrapTypeApplyMinimumRadius, EditScrapTypeChangeStation, EditScrapTypeDelete, EditScrapTypeUpdate }
	Specifies the edit type of scraps. More...

enum	OvercutType { OvercutTypeNormalType, OvercutTypeTangentType, OvercutTypeCircularType, OvercutTypeRectangularType }
	Specifies the over cut type, different type has different parameters. More...

enum	RemoveType { RemoveTypeInferScrap, RemoveTypeOverlap, RemoveTypeOvercut, RemoveTypeTrimming, RemoveTypeHole, RemoveTypeScrap, RemoveTypeAll }
	Specifies the removing type as filter. More...

enum	ScrapDefPosition { ScrapDefPositionProjectToStrip, ScrapDefPositionKeepOrigin }
	Specifies the position method of scraps, projecting method is normally used. More...

enum	ScrapDefType { ScrapDefTypeBlankBoundarySketch, ScrapDefTypeHoleBoundary, ScrapDefTypeClosedCurves, ScrapDefTypeBoundaryLines, ScrapDefTypeExistedSheetBody, ScrapDefTypeChangeType }
	Specifies the creation type of scraps. More...

enum	TrimNumType { TrimNumTypeOne, TrimNumTypeTwo, TrimNumTypeThree, TrimNumTypeFour, TrimNumTypeFive }
	Specifies the step of trimming process, the maximum is five. More...

Public Member Functions
NXOpen::Tooling::ScrapDesignBuilder::AddonType	AddonOperation ()
	Returns the add-on operation, which includes overlap, overcut, trimming and user defined Created in NX6.0.0.

bool	ApplyColor ()
	Returns the toggle to determine whether the color will be used to all other scraps with the same shape Created in NX6.0.0.

NXOpen::NXColor *	AssignColor ()
	Returns the color for assigned scrap Created in NX6.0.0.

NXOpen::SelectEdgeList *	AttachEdge ()
	Returns the edge that overlap will be attached Created in NX6.0.0.

NXOpen::SelectBody *	AttachScrap ()
	Returns the scrap that overlap will be attached Created in NX6.0.0.

NXOpen::ScCollector *	BoundaryList ()
	Returns the boundary list served for boundary line method Created in NX6.0.0.

NXOpen::SelectBodyList *	ChangeColScrap ()
	Returns the changing color of scrap Created in NX6.0.0.

NXOpen::Section *	CurveList ()
	Returns the curve list served for boundary+sketch or close boundaries method Created in NX6.0.0.

int	DefStationNum ()
	Returns the defined station number, according to it scraps can be laid out automatically in strip Created in NX6.0.0.

double	DoubleA ()
	Returns the double A served as the parameter of overcut Created in NX6.0.0.

double	DoubleAngle ()
	Returns the double Angle served as the parameter of overcut Created in NX6.0.0.

double	DoubleB ()
	Returns the double B served as the parameter of overcut Created in NX6.0.0.

double	DoubleH ()
	Returns the double H served as the parameter of overcut Created in NX6.0.0.

double	DoubleR ()
	Returns the double R served as the parameter of overcut Created in NX6.0.0.

NXOpen::Tooling::ScrapDesignBuilder::EditScrapType	EditMethod ()
	Returns the edit method, which includes splitting, merging, applying minimum radius, changing station, deleting and updating Created in NX6.0.0.

int	EditStationNum ()
	Returns the station number to lay out in strip Created in NX6.0.0.

NXOpen::SelectBodyList *	ExistScrap ()
	Returns the existed scrap served for exist sheet body method Created in NX6.0.0.

NXOpen::Point3d	GetOvercutPosition ()
	Returns the overcut position, it determines where the overcut sketch will be constrained.

NXOpen::NXColor *	HoleColor ()
	Returns the hole color Created in NX6.0.0.

double	MinRad ()
	Returns the minimum radius to blend sharp corners Created in NX6.0.0.

NXOpen::NXColor *	OvercutColor ()
	Returns the overcut color Created in NX6.0.0.

NXOpen::SelectEdge *	OvercutEdge ()
	Returns the edge that overcut will be attached Created in NX6.0.0.

NXOpen::Tooling::ScrapDesignBuilder::OvercutType	OvercutOperation ()
	Returns the overcut operation, which includes normal type, tangent type, circular type and rectangular type Created in NX6.0.0.

NXOpen::NXColor *	OverlapColor ()
	Returns the overlap color Created in NX6.0.0.

double	OverlapWidth ()
	Returns the overlap width Created in NX6.0.0.

NXOpen::Tooling::ScrapDesignBuilder::DefScrapType	PierceType ()
	Returns the piercing type, piercing or piloting Created in NX6.0.0.

NXOpen::NXColor *	PiercingColor ()
	Returns the piercing color Created in NX6.0.0.

NXOpen::NXColor *	PilotingColor ()
	Returns the piloting color Created in NX6.0.0.

double	ProcessFive ()
	Returns the process five Created in NX6.0.0.

double	ProcessFour ()
	Returns the process four Created in NX6.0.0.

double	ProcessOne ()
	Returns the process one Created in NX6.0.0.

double	ProcessThree ()
	Returns the process three Created in NX6.0.0.

double	ProcessTwo ()
	Returns the process two Created in NX6.0.0.

NXOpen::Tooling::ScrapDesignBuilder::RemoveType	RemoveFilter ()
	Returns the removing filter Created in NX6.0.0.

NXOpen::Tooling::ScrapDesignBuilder::ScrapDefType	ScrapMethod ()
	Returns the scrap method, which includes boundary+sketch, hole boundary, close curves, boundary lines and existed sheet body Created in NX6.0.0.

NXOpen::Tooling::ScrapDesignBuilder::ScrapDefPosition	ScrapPosition ()
	Returns the scrap position Created in NX6.0.0.

double	ScrapTol ()
	Returns the scrap tolerance, when fail to create scrap in some cases, this value can be decreased to try again Created in NX6.0.0.

NXOpen::Tooling::ScrapDesignBuilder::Body	ScrapTypeEnum ()
	Returns the scrap type enum Created in NX6.0.0.

NXOpen::SelectBodyList *	SecondScrap ()
	Returns the second scrap to merge with the first one Created in NX6.0.0.

void	SetAddonOperation (NXOpen::Tooling::ScrapDesignBuilder::AddonType addonOperation)
	Sets the add-on operation, which includes overlap, overcut, trimming and user defined Created in NX6.0.0.

void	SetApplyColor (bool applyColor)
	Sets the toggle to determine whether the color will be used to all other scraps with the same shape Created in NX6.0.0.

void	SetAssignColor (NXOpen::NXColor *assignColor)
	Sets the color for assigned scrap Created in NX6.0.0.

void	SetDefStationNum (int defStationNum)
	Sets the defined station number, according to it scraps can be laid out automatically in strip Created in NX6.0.0.

void	SetDoubleA (double doubleA)
	Sets the double A served as the parameter of overcut Created in NX6.0.0.

void	SetDoubleAngle (double doubleAngle)
	Sets the double Angle served as the parameter of overcut Created in NX6.0.0.

void	SetDoubleB (double doubleB)
	Sets the double B served as the parameter of overcut Created in NX6.0.0.

void	SetDoubleH (double doubleH)
	Sets the double H served as the parameter of overcut Created in NX6.0.0.

void	SetDoubleR (double doubleR)
	Sets the double R served as the parameter of overcut Created in NX6.0.0.

void	SetEditMethod (NXOpen::Tooling::ScrapDesignBuilder::EditScrapType editMethod)
	Sets the edit method, which includes splitting, merging, applying minimum radius, changing station, deleting and updating Created in NX6.0.0.

void	SetEditStationNum (int editStationNum)
	Sets the station number to lay out in strip Created in NX6.0.0.

void	SetHoleColor (NXOpen::NXColor *holeColor)
	Sets the hole color Created in NX6.0.0.

void	SetMinRad (double minRad)
	Sets the minimum radius to blend sharp corners Created in NX6.0.0.

void	SetOvercutColor (NXOpen::NXColor *overcutColor)
	Sets the overcut color Created in NX6.0.0.

void	SetOvercutOperation (NXOpen::Tooling::ScrapDesignBuilder::OvercutType overcutOperation)
	Sets the overcut operation, which includes normal type, tangent type, circular type and rectangular type Created in NX6.0.0.

void	SetOvercutPosition (const NXOpen::Point3d &overcutPosition)
	Sets the overcut position, it determines where the overcut sketch will be constrained Created in NX6.0.2.

void	SetOverlapColor (NXOpen::NXColor *overlapColor)
	Sets the overlap color Created in NX6.0.0.

void	SetOverlapWidth (double overlapWidth)
	Sets the overlap width Created in NX6.0.0.

void	SetPierceType (NXOpen::Tooling::ScrapDesignBuilder::DefScrapType pierceType)
	Sets the piercing type, piercing or piloting Created in NX6.0.0.

void	SetPiercingColor (NXOpen::NXColor *piercingColor)
	Sets the piercing color Created in NX6.0.0.

void	SetPilotingColor (NXOpen::NXColor *pilotingColor)
	Sets the piloting color Created in NX6.0.0.

void	SetProcessFive (double processFive)
	Sets the process five Created in NX6.0.0.

void	SetProcessFour (double processFour)
	Sets the process four Created in NX6.0.0.

void	SetProcessOne (double processOne)
	Sets the process one Created in NX6.0.0.

void	SetProcessThree (double processThree)
	Sets the process three Created in NX6.0.0.

void	SetProcessTwo (double processTwo)
	Sets the process two Created in NX6.0.0.

void	SetRemoveFilter (NXOpen::Tooling::ScrapDesignBuilder::RemoveType removeFilter)
	Sets the removing filter Created in NX6.0.0.

void	SetScrapMethod (NXOpen::Tooling::ScrapDesignBuilder::ScrapDefType scrapMethod)
	Sets the scrap method, which includes boundary+sketch, hole boundary, close curves, boundary lines and existed sheet body Created in NX6.0.0.

void	SetScrapPosition (NXOpen::Tooling::ScrapDesignBuilder::ScrapDefPosition scrapPosition)
	Sets the scrap position Created in NX6.0.0.

void	SetScrapTol (double scrapTol)
	Sets the scrap tolerance, when fail to create scrap in some cases, this value can be decreased to try again Created in NX6.0.0.

void	SetScrapTypeEnum (NXOpen::Tooling::ScrapDesignBuilder::Body scrapTypeEnum)
	Sets the scrap type enum Created in NX6.0.0.

void	SetTrimmingColor (NXOpen::NXColor *trimmingColor)
	Sets the trimming color Created in NX6.0.0.

void	SetTrimNum (NXOpen::Tooling::ScrapDesignBuilder::TrimNumType trimNum)
	Sets the trimming number Created in NX6.0.0.

NXOpen::Section *	SplitCurve ()
	Returns the splitting curve Created in NX6.0.0.

NXOpen::SelectBodyList *	SplitScrap ()
	Returns the scrap to be splitted or merged Created in NX6.0.0.

NXOpen::NXColor *	TrimmingColor ()
	Returns the trimming color Created in NX6.0.0.

NXOpen::Tooling::ScrapDesignBuilder::TrimNumType	TrimNum ()
	Returns the trimming number Created in NX6.0.0.

NXOpen::Section *	UserAddonCurve ()
	Returns the user defined add-on curve to create overlap+overcut Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a scrap design builder   <br> To create a new instance of this class, use @link Tooling::ScrapDesignCollection::CreateScrapDesignBuilder  Tooling::ScrapDesignCollection::CreateScrapDesignBuilder @endlink  <br>

Default values.

Property

Value

AddonOperation

Overlap

ApplyColor

0

DefStationNum

1

DoubleA

0

DoubleAngle

0

DoubleB

0

DoubleH

0

DoubleR

0.2

EditMethod

Split

EditStationNum

1

MinRad

0.1

OvercutOperation

NormalType

OverlapWidth

0.1

PierceType

Piercing

ProcessFive

0

ProcessFour

0

ProcessOne

0

ProcessThree

0

ProcessTwo

0

RemoveFilter

InferScrap

ScrapPosition

ProjectToStrip

ScrapTol

0.01

ScrapTypeEnum

Create

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Tooling::ScrapDesignBuilder::AddonType

Specifies the add-on type.

Enumerator:

AddonTypeOverlap	Creates overlap.
AddonTypeOvercut	Creates overcut.
AddonTypeTrimming	Creates trimming.
AddonTypeUserDefined	Creates user defined add-on.

enum NXOpen::Tooling::ScrapDesignBuilder::Body

Specifies the operation type of scraps.

Enumerator:

BodyCreate	Create operation.
BodyEdit	Edit operation.
BodyAddon	Add-on operation.
BodyGrouping	Grouping operation.

enum NXOpen::Tooling::ScrapDesignBuilder::DefScrapType

Specifies the definition type of scraps.

Enumerator:

DefScrapTypePiercing	Scrap will be defined as piercing type.
DefScrapTypePiloting	Scrap will be defined as piloting type.

enum NXOpen::Tooling::ScrapDesignBuilder::EditScrapType

Specifies the edit type of scraps.

Enumerator:

EditScrapTypeSplit	Splits a scrap by selected curves.
EditScrapTypeMerge	Merges two scraps into one.
EditScrapTypeApplyMinimumRadius	Applies minimum radius to sharp corners of scraps.
EditScrapTypeChangeStation	Changes the station number of scraps.
EditScrapTypeDelete	Deletes scraps.
EditScrapTypeUpdate	Updates scraps if there is any design change.

enum NXOpen::Tooling::ScrapDesignBuilder::OvercutType

Specifies the over cut type, different type has different parameters.

Enumerator:

OvercutTypeNormalType	Creates normal type of overcut.
OvercutTypeTangentType	Creates tangent type of overcut.
OvercutTypeCircularType	Creates circular type of overcut.
OvercutTypeRectangularType	Creates rectangular type of overcut.

enum NXOpen::Tooling::ScrapDesignBuilder::RemoveType

Specifies the removing type as filter.

Enumerator:

RemoveTypeInferScrap	Captures inferred scraps.
RemoveTypeOverlap	Captures overlaps.
RemoveTypeOvercut	Captures overcuts.
RemoveTypeTrimming	Captures trimming scraps.
RemoveTypeHole	Captures hole scraps.
RemoveTypeScrap	Captures normal scraps.
RemoveTypeAll	Captures any kind of scraps.

enum NXOpen::Tooling::ScrapDesignBuilder::ScrapDefPosition

Specifies the position method of scraps, projecting method is normally used.

Enumerator:

ScrapDefPositionProjectToStrip	Scrap will be projected into the strip plane.
ScrapDefPositionKeepOrigin	Scrap will be created in the original plane.

enum NXOpen::Tooling::ScrapDesignBuilder::ScrapDefType

Specifies the creation type of scraps.

Enumerator:

ScrapDefTypeBlankBoundarySketch	Boundary curves or sketch will be used to create scraps.
ScrapDefTypeHoleBoundary	Hole boundary curves will be extracted automatically to create scraps.
ScrapDefTypeClosedCurves	Close curves will be used to create scraps.
ScrapDefTypeBoundaryLines	Boundary lines will be used to create an entire scrap.
ScrapDefTypeExistedSheetBody	Existed sheet body will be converted to scrap.
ScrapDefTypeChangeType	The type of scrap will be changed between Piercing and Piloting.

enum NXOpen::Tooling::ScrapDesignBuilder::TrimNumType

Specifies the step of trimming process, the maximum is five.

Enumerator:

TrimNumTypeOne	Specifies one step of trimming.
TrimNumTypeTwo	Specifies two steps of trimming.
TrimNumTypeThree	Specifies three steps of trimming.
TrimNumTypeFour	Specifies four steps of trimming.
TrimNumTypeFive	Specifies five steps of trimming.

Member Function Documentation

NXOpen::Tooling::ScrapDesignBuilder::AddonType NXOpen::Tooling::ScrapDesignBuilder::AddonOperation ( )

Returns the add-on operation, which includes overlap, overcut, trimming and user defined
Created in NX6.0.0.

License requirements : None

bool NXOpen::Tooling::ScrapDesignBuilder::ApplyColor ( )

Returns the toggle to determine whether the color will be used to all other scraps with the same shape
Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Tooling::ScrapDesignBuilder::AssignColor ( )

Returns the color for assigned scrap
Created in NX6.0.0.

License requirements : None

NXOpen::SelectEdgeList* NXOpen::Tooling::ScrapDesignBuilder::AttachEdge ( )

Returns the edge that overlap will be attached
Created in NX6.0.0.

License requirements : None

NXOpen::SelectBody* NXOpen::Tooling::ScrapDesignBuilder::AttachScrap ( )

Returns the scrap that overlap will be attached
Created in NX6.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Tooling::ScrapDesignBuilder::BoundaryList ( )

Returns the boundary list served for boundary line method
Created in NX6.0.0.

License requirements : None

NXOpen::SelectBodyList* NXOpen::Tooling::ScrapDesignBuilder::ChangeColScrap ( )

Returns the changing color of scrap
Created in NX6.0.0.

License requirements : None

NXOpen::Section* NXOpen::Tooling::ScrapDesignBuilder::CurveList ( )

Returns the curve list served for boundary+sketch or close boundaries method
Created in NX6.0.0.

License requirements : None

int NXOpen::Tooling::ScrapDesignBuilder::DefStationNum ( )

Returns the defined station number, according to it scraps can be laid out automatically in strip
Created in NX6.0.0.

License requirements : None

double NXOpen::Tooling::ScrapDesignBuilder::DoubleA ( )

Returns the double A served as the parameter of overcut
Created in NX6.0.0.

License requirements : None

double NXOpen::Tooling::ScrapDesignBuilder::DoubleAngle ( )

Returns the double Angle served as the parameter of overcut
Created in NX6.0.0.

License requirements : None

double NXOpen::Tooling::ScrapDesignBuilder::DoubleB ( )

Returns the double B served as the parameter of overcut
Created in NX6.0.0.

License requirements : None

double NXOpen::Tooling::ScrapDesignBuilder::DoubleH ( )

Returns the double H served as the parameter of overcut
Created in NX6.0.0.

License requirements : None

double NXOpen::Tooling::ScrapDesignBuilder::DoubleR ( )

Returns the double R served as the parameter of overcut
Created in NX6.0.0.

License requirements : None

NXOpen::Tooling::ScrapDesignBuilder::EditScrapType NXOpen::Tooling::ScrapDesignBuilder::EditMethod ( )

Returns the edit method, which includes splitting, merging, applying minimum radius, changing station, deleting and updating
Created in NX6.0.0.

License requirements : None

int NXOpen::Tooling::ScrapDesignBuilder::EditStationNum ( )

Returns the station number to lay out in strip
Created in NX6.0.0.

License requirements : None

NXOpen::SelectBodyList* NXOpen::Tooling::ScrapDesignBuilder::ExistScrap ( )

Returns the existed scrap served for exist sheet body method
Created in NX6.0.0.

License requirements : None

NXOpen::Point3d NXOpen::Tooling::ScrapDesignBuilder::GetOvercutPosition ( )

Returns the overcut position, it determines where the overcut sketch will be constrained.

Returns: Indicates the position to constrain overcut sketch
Created in NX6.0.2.

License requirements : None

NXOpen::NXColor* NXOpen::Tooling::ScrapDesignBuilder::HoleColor ( )

Returns the hole color
Created in NX6.0.0.

License requirements : None

double NXOpen::Tooling::ScrapDesignBuilder::MinRad ( )

Returns the minimum radius to blend sharp corners
Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Tooling::ScrapDesignBuilder::OvercutColor ( )

Returns the overcut color
Created in NX6.0.0.

License requirements : None

NXOpen::SelectEdge* NXOpen::Tooling::ScrapDesignBuilder::OvercutEdge ( )

Returns the edge that overcut will be attached
Created in NX6.0.0.

License requirements : None

NXOpen::Tooling::ScrapDesignBuilder::OvercutType NXOpen::Tooling::ScrapDesignBuilder::OvercutOperation ( )

Returns the overcut operation, which includes normal type, tangent type, circular type and rectangular type
Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Tooling::ScrapDesignBuilder::OverlapColor ( )

Returns the overlap color
Created in NX6.0.0.

License requirements : None

double NXOpen::Tooling::ScrapDesignBuilder::OverlapWidth ( )

Returns the overlap width
Created in NX6.0.0.

License requirements : None

NXOpen::Tooling::ScrapDesignBuilder::DefScrapType NXOpen::Tooling::ScrapDesignBuilder::PierceType ( )

Returns the piercing type, piercing or piloting
Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Tooling::ScrapDesignBuilder::PiercingColor ( )

Returns the piercing color
Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Tooling::ScrapDesignBuilder::PilotingColor ( )

Returns the piloting color
Created in NX6.0.0.

License requirements : None

double NXOpen::Tooling::ScrapDesignBuilder::ProcessFive ( )

Returns the process five
Created in NX6.0.0.

License requirements : None

double NXOpen::Tooling::ScrapDesignBuilder::ProcessFour ( )

Returns the process four
Created in NX6.0.0.

License requirements : None

double NXOpen::Tooling::ScrapDesignBuilder::ProcessOne ( )

Returns the process one
Created in NX6.0.0.

License requirements : None

double NXOpen::Tooling::ScrapDesignBuilder::ProcessThree ( )

Returns the process three
Created in NX6.0.0.

License requirements : None

double NXOpen::Tooling::ScrapDesignBuilder::ProcessTwo ( )

Returns the process two
Created in NX6.0.0.

License requirements : None

NXOpen::Tooling::ScrapDesignBuilder::RemoveType NXOpen::Tooling::ScrapDesignBuilder::RemoveFilter ( )

Returns the removing filter
Created in NX6.0.0.

License requirements : None

NXOpen::Tooling::ScrapDesignBuilder::ScrapDefType NXOpen::Tooling::ScrapDesignBuilder::ScrapMethod ( )

Returns the scrap method, which includes boundary+sketch, hole boundary, close curves, boundary lines and existed sheet body
Created in NX6.0.0.

License requirements : None

NXOpen::Tooling::ScrapDesignBuilder::ScrapDefPosition NXOpen::Tooling::ScrapDesignBuilder::ScrapPosition ( )

Returns the scrap position
Created in NX6.0.0.

License requirements : None

double NXOpen::Tooling::ScrapDesignBuilder::ScrapTol ( )

Returns the scrap tolerance, when fail to create scrap in some cases, this value can be decreased to try again
Created in NX6.0.0.

License requirements : None

NXOpen::Tooling::ScrapDesignBuilder::Body NXOpen::Tooling::ScrapDesignBuilder::ScrapTypeEnum ( )

Returns the scrap type enum
Created in NX6.0.0.

License requirements : None

NXOpen::SelectBodyList* NXOpen::Tooling::ScrapDesignBuilder::SecondScrap ( )

Returns the second scrap to merge with the first one
Created in NX6.0.0.

License requirements : None

void NXOpen::Tooling::ScrapDesignBuilder::SetAddonOperation ( NXOpen::Tooling::ScrapDesignBuilder::AddonType addonOperation )

Sets the add-on operation, which includes overlap, overcut, trimming and user defined
Created in NX6.0.0.
