NXOpen::Tooling::MWDesignPartingSurfaceBuilder Class Reference

The builder for designing parting surface in Mold Wizard. More...

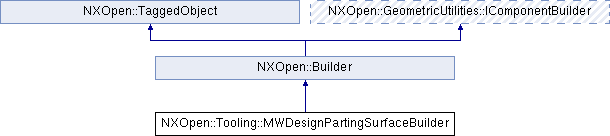

Inheritance diagram for NXOpen::Tooling::MWDesignPartingSurfaceBuilder:

Public Types
enum	ObjectType { ObjectTypePartingSurface, ObjectTypePartingLine, ObjectTypeGuideLine, ObjectTypeTransitionObject }
	The type of parting objects to be edited or placed. More...
enum	PartingSurfaceType {   PartingSurfaceTypeExtrude, PartingSurfaceTypeSwept, PartingSurfaceTypeBoundedPlane, PartingSurfaceTypeEnlargedSurface,   PartingSurfaceTypeTrimandExtend, PartingSurfaceTypeRibbonSurface, PartingSurfaceTypeGuidedExtension }
	The type of parting surface to be created. More...
enum	TransitionSurfaceType { TransitionSurfaceTypeAuto, TransitionSurfaceTypeBoundedPlane, TransitionSurfaceTypeSwept, TransitionSurfaceTypeBridge }
	The type of transition surface to be created. More...
enum	TrimAndExtendFromRegionType { TrimAndExtendFromRegionTypeCavity, TrimAndExtendFromRegionTypeCore }
	The region type from which to trim and extend when creating parting surface. More...

Public Member Functions
bool	AlternateMethod ()
	Returns the option to use the system provided alternate method to create transition parting surface.
void	AutoCreatePartingSurfaces ()
	Method to auto create parting surfaces.
void	ChangePartingObjectType (int partingObjectType)
	Change the type of parting objects to be placed or edited.
void	CheckSuppressParting ()
	Check if suppressing parting is needed.
void	ClearPreCreatedBoundedPlaneAndEnlargedSurface (int differentSegment)
	Clear the pre-created bounded plane and enlarged surface if no longer needed.
void	ClearPreCreatedExtrudeAndSweptSurface (int deleteSheet)
	Clear the pre-created extrude and swept surfaces for preview if no longer needed.
bool	CreateExtrudeSweptPreview ()
	Returns the option to turn on or off the preview for Extrude or Swept parting surface Created in NX8.5.0.
void	CreateSurfaceData (NXOpen::Face *faceTag)
	Create surface data for enlarged surface.
void	DeleteAllPartingSurfaces ()
	Method to delete all the parting surfaces before auto create parting surfaces if the user chooses to do so.
void	DeletePartingSurface (NXOpen::Body *partingSheet)
	Delete a newly created parting surface.
void	DisplayObjectsOnEntry ()
	Display the parting surfaces, guide lines, and parting lines when entering the Design Parting Surface command.
NXOpen::ScCollector *	EditPartingLines ()
	Returns the parting lines to edit.
bool	EnlargeOtherFaceOption ()
	Returns the option for enlarging the other face that connects to the same edge.
NXOpen::Expression *	ExtendDistance ()
	Returns the extend distance for creating parting surface.
NXOpen::Direction *	ExtrudeDirection ()
	Returns the extrude or first direction used in creating parting surface that requires only one direction.
double	ExtrudeDistance ()
	Returns the extrude distance for updating the expression "parting_extrude_distance".
double	ExtrudeDraftAngle ()
	Returns the draft angle for extrude parting surface Created in NX8.0.0.
void	FinalizeCreatePartingSurface ()
	Finalize the creation of bounded plane or enlarged surface parting surface.
void	FlipTrimmedSheet ()
	Flip the trimmed bounded plane or the enlarged surface for parting surface.
NXOpen::SelectCurve *	GuideOrPartingLine ()
	Returns the guide or parting line to create or edit a guide line.
void	InitializeOnEntry ()
	Perform initialization tasks when entering the Design Parting Surface command.
NXOpen::SelectCurveList *	PartingLines ()
	Returns the parting lines for creating parting surface.
void	PreCreateBoundedPlaneAndEnlargedSurface ()
	Pre-create a bounded plane or enlarged surface when the respective surface type is on.
NXOpen::SelectEdgeList *	PrimaryEdges ()
	Returns the primary edges for creating transition parting surface.
bool	ResizeAllDirections ()
	Returns the option to enlarge or resize surface for all directions.
NXOpen::Direction *	SecondDirection ()
	Returns the second direction used in creating parting surface that requires two directions.
void	SetAlternateMethod (bool alternateMethod)
	Sets the option to use the system provided alternate method to create transition parting surface.
void	SetCreateExtrudeSweptPreview (bool createExtrudeSweptPreview)
	Sets the option to turn on or off the preview for Extrude or Swept parting surface Created in NX8.5.0.
void	SetEnlargeOtherFaceOption (bool enlargeOtherFaceOption)
	Sets the option for enlarging the other face that connects to the same edge.
void	SetExtrudeDirection (NXOpen::Direction *extrudeDirection)
	Sets the extrude or first direction used in creating parting surface that requires only one direction.
void	SetExtrudeDistance (double extrudeDistance)
	Sets the extrude distance for updating the expression "parting_extrude_distance".
void	SetExtrudeDraftAngle (double extrudeDraftAngle)
	Sets the draft angle for extrude parting surface Created in NX8.0.0.
void	SetResizeAllDirections (bool resizeAllDirections)
	Sets the option to enlarge or resize surface for all directions.
void	SetSecondDirection (NXOpen::Direction *secondDirection)
	Sets the second direction used in creating parting surface that requires two directions.
void	SetSurfaceTolerance (double surfaceTolerance)
	Sets the surface tolerance.
void	SetSurfaceType (NXOpen::Tooling::MWDesignPartingSurfaceBuilder::PartingSurfaceType surfaceType)
	Sets the type of parting surface to be created.
void	SetTransitionSurfType (NXOpen::Tooling::MWDesignPartingSurfaceBuilder::TransitionSurfaceType transitionSurfType)
	Sets the type of transition surface to be created.
void	SetTrimAndExtendFromRegion (NXOpen::Tooling::MWDesignPartingSurfaceBuilder::TrimAndExtendFromRegionType trimAndExtendFromRegion)
	Sets the option for "trim and extend" from the cavity or core region.
void	SetTrimWithGuideLines (bool trimWithGuideLines)
	Sets the option to trim with guide lines.
void	SetUseDefaultKeepSide (bool useDefaultKeepSide)
	Sets the option to use the default keep side for trimming bounded plane or enlarged surface Created in NX8.5.0.
NXOpen::GeometricUtilities::SurfaceRangeBuilder *	SurfaceRange ()
	Returns the surface range for enlarging surface.
double	SurfaceTolerance ()
	Returns the surface tolerance.
NXOpen::Tooling::MWDesignPartingSurfaceBuilder::PartingSurfaceType	SurfaceType ()
	Returns the type of parting surface to be created.
NXOpen::SelectCurveList *	TransitionObjects ()
	Returns the transition curves or points used in creating transition parting surface.
NXOpen::Tooling::MWDesignPartingSurfaceBuilder::TransitionSurfaceType	TransitionSurfType ()
	Returns the type of transition surface to be created.
NXOpen::Tooling::MWDesignPartingSurfaceBuilder::TrimAndExtendFromRegionType	TrimAndExtendFromRegion ()
	Returns the option for "trim and extend" from the cavity or core region.
bool	TrimWithGuideLines ()
	Returns the option to trim with guide lines.
void	UpdateAllSegmentsAutoCreateInfo ()
	Method to update the auto create info for all parting segments.
void	UpdateEditPartingLines ()
	Update the parting lines being edited to reflect the change immediately Created in NX7.5.0.
void	UpdateExtrudeAndSweptSheets (int directionChange)
	Method to update the temporary Extrude and Swept sheets for changes in UI.
void	UpdateExtrudeDistanceExpression (double extrudeDistance)
	Update the expression for the parting surface extrude distance with a new value.
void	UpdateInApplyStatus (int inApplyStatus)
	Method to update the Apply status of the command.
void	UpdatePartingLines ()
	Update parting lines after traversing parting lines.
void	UpdatePreviewSurface ()
	Update the preview surface for the bounded plane or enlarged surface.
void	UpdateSegmentAutoCreateInfo ()
	Method to update the auto create info for the selected parting segment Created in NX8.5.0.
void	UpdateTransitionPoints ()
	Update transition points after editing guide lines.
bool	UseDefaultKeepSide ()
	Returns the option to use the default keep side for trimming bounded plane or enlarged surface Created in NX8.5.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

The builder for designing parting surface in Mold Wizard.

To create a new instance of this class, use Tooling::MWDesignPartingSurfaceCollection::CreateBuilder
Default values.

Property	Value
AlternateMethod	0
CreateExtrudeSweptPreview	0
EnlargeOtherFaceOption	0
ExtendDistance.Value	1 (millimeters part), 1 (inches part)
ExtrudeDistance	60
ExtrudeDraftAngle	0
ResizeAllDirections	1
SurfaceRange.AnchorPosition	Vertex1
SurfaceTolerance	0.01
SurfaceType	Extrude
TransitionSurfType	Auto
TrimAndExtendFromRegion	Cavity
TrimWithGuideLines	1
UseDefaultKeepSide	1

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::Tooling::MWDesignPartingSurfaceBuilder::ObjectType

The type of parting objects to be edited or placed.

Enumerator:

ObjectTypePartingSurface	Parting surface.
ObjectTypePartingLine	Parting line.
ObjectTypeGuideLine	Guide line.
ObjectTypeTransitionObject	Transition object.

enum NXOpen::Tooling::MWDesignPartingSurfaceBuilder::PartingSurfaceType

The type of parting surface to be created.

Enumerator:

PartingSurfaceTypeExtrude	Extrude.
PartingSurfaceTypeSwept	Swept.
PartingSurfaceTypeBoundedPlane	Bounded plane.
PartingSurfaceTypeEnlargedSurface	Enlarge.
PartingSurfaceTypeTrimandExtend	Trim and extend.
PartingSurfaceTypeRibbonSurface	Ribbon.
PartingSurfaceTypeGuidedExtension	Guided Extension.

enum NXOpen::Tooling::MWDesignPartingSurfaceBuilder::TransitionSurfaceType

The type of transition surface to be created.

Enumerator:

TransitionSurfaceTypeAuto	Auto transition surface.
TransitionSurfaceTypeBoundedPlane	Bounded transition surface.
TransitionSurfaceTypeSwept	Swept transition surface.
TransitionSurfaceTypeBridge	Bridge transition surface.

enum NXOpen::Tooling::MWDesignPartingSurfaceBuilder::TrimAndExtendFromRegionType

The region type from which to trim and extend when creating parting surface.

Enumerator:

TrimAndExtendFromRegionTypeCavity	From cavity region.
TrimAndExtendFromRegionTypeCore	From core region.

Member Function Documentation

bool NXOpen::Tooling::MWDesignPartingSurfaceBuilder::AlternateMethod

(

)

Returns the option to use the system provided alternate method to create transition parting surface.

Created in NX7.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::AutoCreatePartingSurfaces

(

)

Method to auto create parting surfaces.

Created in NX8.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::ChangePartingObjectType

(

int

partingObjectType

)

Change the type of parting objects to be placed or edited.

Created in NX7.5.0.

License requirements : None

Parameters

partingObjectType

Parting object type

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::CheckSuppressParting

(

)

Check if suppressing parting is needed.

Created in NX7.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::ClearPreCreatedBoundedPlaneAndEnlargedSurface

(

int

differentSegment

)

Clear the pre-created bounded plane and enlarged surface if no longer needed.

Created in NX7.5.0.

License requirements : None

Parameters

differentSegment

Different segment flag

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::ClearPreCreatedExtrudeAndSweptSurface

(

int

deleteSheet

)

Clear the pre-created extrude and swept surfaces for preview if no longer needed.

Created in NX8.5.0.

License requirements : None

Parameters

deleteSheet

Delete sheet flag

bool NXOpen::Tooling::MWDesignPartingSurfaceBuilder::CreateExtrudeSweptPreview

(

)

Returns the option to turn on or off the preview for Extrude or Swept parting surface
Created in NX8.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::CreateSurfaceData

(

NXOpen::Face *

faceTag

)

Create surface data for enlarged surface.

Created in NX7.5.0.

License requirements : None

Parameters

faceTag

Face for the surface data

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::DeleteAllPartingSurfaces

(

)

Method to delete all the parting surfaces before auto create parting surfaces if the user chooses to do so.

Created in NX8.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::DeletePartingSurface

(

NXOpen::Body *

partingSheet

)

Delete a newly created parting surface.

Created in NX7.5.0.

License requirements : None

Parameters

partingSheet

Parting sheet to be deleted

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::DisplayObjectsOnEntry

(

)

Display the parting surfaces, guide lines, and parting lines when entering the Design Parting Surface command.

Created in NX7.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Tooling::MWDesignPartingSurfaceBuilder::EditPartingLines

(

)

Returns the parting lines to edit.

Created in NX7.5.0.

License requirements : None

bool NXOpen::Tooling::MWDesignPartingSurfaceBuilder::EnlargeOtherFaceOption

(

)

Returns the option for enlarging the other face that connects to the same edge.

Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Tooling::MWDesignPartingSurfaceBuilder::ExtendDistance

(

)

Returns the extend distance for creating parting surface.

Created in NX7.5.0.

License requirements : None

NXOpen::Direction* NXOpen::Tooling::MWDesignPartingSurfaceBuilder::ExtrudeDirection

(

)

Returns the extrude or first direction used in creating parting surface that requires only one direction.

Created in NX7.5.0.

License requirements : None

double NXOpen::Tooling::MWDesignPartingSurfaceBuilder::ExtrudeDistance

(

)

Returns the extrude distance for updating the expression "parting_extrude_distance".

Created in NX7.5.0.

License requirements : None

double NXOpen::Tooling::MWDesignPartingSurfaceBuilder::ExtrudeDraftAngle

(

)

Returns the draft angle for extrude parting surface
Created in NX8.0.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::FinalizeCreatePartingSurface

(

)

Finalize the creation of bounded plane or enlarged surface parting surface.

Created in NX7.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::FlipTrimmedSheet

(

)

Flip the trimmed bounded plane or the enlarged surface for parting surface.

Created in NX7.5.0.

License requirements : None

NXOpen::SelectCurve* NXOpen::Tooling::MWDesignPartingSurfaceBuilder::GuideOrPartingLine

(

)

Returns the guide or parting line to create or edit a guide line.

Created in NX7.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::InitializeOnEntry

(

)

Perform initialization tasks when entering the Design Parting Surface command.

Created in NX7.5.0.

License requirements : None

NXOpen::SelectCurveList* NXOpen::Tooling::MWDesignPartingSurfaceBuilder::PartingLines

(

)

Returns the parting lines for creating parting surface.

Created in NX7.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::PreCreateBoundedPlaneAndEnlargedSurface

(

)

Pre-create a bounded plane or enlarged surface when the respective surface type is on.

Created in NX7.5.0.

License requirements : None

NXOpen::SelectEdgeList* NXOpen::Tooling::MWDesignPartingSurfaceBuilder::PrimaryEdges

(

)

Returns the primary edges for creating transition parting surface.

Created in NX7.5.0.

License requirements : None

bool NXOpen::Tooling::MWDesignPartingSurfaceBuilder::ResizeAllDirections

(

)

Returns the option to enlarge or resize surface for all directions.

Created in NX7.5.0.

License requirements : None

NXOpen::Direction* NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SecondDirection

(

)

Returns the second direction used in creating parting surface that requires two directions.

Created in NX7.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SetAlternateMethod

(

bool

alternateMethod

)

Sets the option to use the system provided alternate method to create transition parting surface.

Created in NX7.5.0.

License requirements : None

Parameters

alternateMethod

alternatemethod

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SetCreateExtrudeSweptPreview

(

bool

createExtrudeSweptPreview

)

Sets the option to turn on or off the preview for Extrude or Swept parting surface
Created in NX8.5.0.

License requirements : None

Parameters

createExtrudeSweptPreview

createextrudesweptpreview

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SetEnlargeOtherFaceOption

(

bool

enlargeOtherFaceOption

)

Sets the option for enlarging the other face that connects to the same edge.

Created in NX7.5.0.

License requirements : None

Parameters

enlargeOtherFaceOption

enlargeotherfaceoption

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SetExtrudeDirection

(

NXOpen::Direction *

extrudeDirection

)

Sets the extrude or first direction used in creating parting surface that requires only one direction.

Created in NX7.5.0.

License requirements : None

Parameters

extrudeDirection

extrudedirection

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SetExtrudeDistance

(

double

extrudeDistance

)

Sets the extrude distance for updating the expression "parting_extrude_distance".

Created in NX7.5.0.

License requirements : None

Parameters

extrudeDistance

extrudedistance

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SetExtrudeDraftAngle

(

double

extrudeDraftAngle

)

Sets the draft angle for extrude parting surface
Created in NX8.0.0.

License requirements : None

Parameters

extrudeDraftAngle

extrudedraftangle

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SetResizeAllDirections

(

bool

resizeAllDirections

)

Sets the option to enlarge or resize surface for all directions.

Created in NX7.5.0.

License requirements : None

Parameters

resizeAllDirections

resizealldirections

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SetSecondDirection

(

NXOpen::Direction *

secondDirection

)

Sets the second direction used in creating parting surface that requires two directions.

Created in NX7.5.0.

License requirements : None

Parameters

secondDirection

seconddirection

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SetSurfaceTolerance

(

double

surfaceTolerance

)

Sets the surface tolerance.

Created in NX7.5.0.

License requirements : None

Parameters

surfaceTolerance

surfacetolerance

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SetSurfaceType

(

NXOpen::Tooling::MWDesignPartingSurfaceBuilder::PartingSurfaceType

surfaceType

)

Sets the type of parting surface to be created.

Created in NX7.5.0.

License requirements : None

Parameters

surfaceType

surfacetype

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SetTransitionSurfType

(

NXOpen::Tooling::MWDesignPartingSurfaceBuilder::TransitionSurfaceType

transitionSurfType

)

Sets the type of transition surface to be created.

Created in NX7.5.0.

License requirements : None

Parameters

transitionSurfType

transitionsurftype

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SetTrimAndExtendFromRegion

(

NXOpen::Tooling::MWDesignPartingSurfaceBuilder::TrimAndExtendFromRegionType

trimAndExtendFromRegion

)

Sets the option for "trim and extend" from the cavity or core region.

Created in NX7.5.0.

License requirements : None

Parameters

trimAndExtendFromRegion

trimandextendfromregion

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SetTrimWithGuideLines

(

bool

trimWithGuideLines

)

Sets the option to trim with guide lines.

Created in NX7.5.0.

License requirements : None

Parameters

trimWithGuideLines

trimwithguidelines

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SetUseDefaultKeepSide

(

bool

useDefaultKeepSide

)

Sets the option to use the default keep side for trimming bounded plane or enlarged surface
Created in NX8.5.0.

License requirements : None

Parameters

useDefaultKeepSide

usedefaultkeepside

NXOpen::GeometricUtilities::SurfaceRangeBuilder* NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SurfaceRange

(

)

Returns the surface range for enlarging surface.

Created in NX7.0.0.

License requirements : None

double NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SurfaceTolerance

(

)

Returns the surface tolerance.

Created in NX7.5.0.

License requirements : None

NXOpen::Tooling::MWDesignPartingSurfaceBuilder::PartingSurfaceType NXOpen::Tooling::MWDesignPartingSurfaceBuilder::SurfaceType

(

)

Returns the type of parting surface to be created.

Created in NX7.5.0.

License requirements : None

NXOpen::SelectCurveList* NXOpen::Tooling::MWDesignPartingSurfaceBuilder::TransitionObjects

(

)

Returns the transition curves or points used in creating transition parting surface.

Created in NX7.5.0.

License requirements : None

NXOpen::Tooling::MWDesignPartingSurfaceBuilder::TransitionSurfaceType NXOpen::Tooling::MWDesignPartingSurfaceBuilder::TransitionSurfType

(

)

Returns the type of transition surface to be created.

Created in NX7.5.0.

License requirements : None

NXOpen::Tooling::MWDesignPartingSurfaceBuilder::TrimAndExtendFromRegionType NXOpen::Tooling::MWDesignPartingSurfaceBuilder::TrimAndExtendFromRegion

(

)

Returns the option for "trim and extend" from the cavity or core region.

Created in NX7.5.0.

License requirements : None

bool NXOpen::Tooling::MWDesignPartingSurfaceBuilder::TrimWithGuideLines

(

)

Returns the option to trim with guide lines.

Created in NX7.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::UpdateAllSegmentsAutoCreateInfo

(

)

Method to update the auto create info for all parting segments.

Created in NX8.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::UpdateEditPartingLines

(

)

Update the parting lines being edited to reflect the change immediately
Created in NX7.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::UpdateExtrudeAndSweptSheets

(

int

directionChange

)

Method to update the temporary Extrude and Swept sheets for changes in UI.

Created in NX8.5.0.

License requirements : None

Parameters

directionChange

directionchange

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::UpdateExtrudeDistanceExpression

(

double

extrudeDistance

)

Update the expression for the parting surface extrude distance with a new value.

Created in NX7.5.0.

License requirements : None

Parameters

extrudeDistance

Extrude distance for expression

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::UpdateInApplyStatus

(

int

inApplyStatus

)

Method to update the Apply status of the command.

Created in NX8.5.0.

License requirements : None

Parameters

inApplyStatus

inapplystatus

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::UpdatePartingLines

(

)

Update parting lines after traversing parting lines.

Created in NX7.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::UpdatePreviewSurface

(

)

Update the preview surface for the bounded plane or enlarged surface.

Created in NX7.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::UpdateSegmentAutoCreateInfo

(

)

Method to update the auto create info for the selected parting segment
Created in NX8.5.0.

License requirements : None

void NXOpen::Tooling::MWDesignPartingSurfaceBuilder::UpdateTransitionPoints

(

)

Update transition points after editing guide lines.

Created in NX7.5.0.

License requirements : None

bool NXOpen::Tooling::MWDesignPartingSurfaceBuilder::UseDefaultKeepSide

(

)

Returns the option to use the default keep side for trimming bounded plane or enlarged surface
Created in NX8.5.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Tooling_MWDesignPartingSurfaceBuilder.hxx
