NXOpen::Routing::OffsetPath Class Reference

The Routing OffsetPath object is the set of information needed to define an offset route. More...

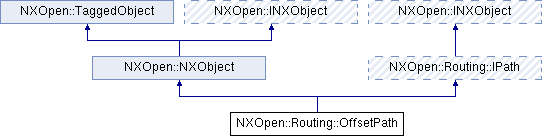

Inheritance diagram for NXOpen::Routing::OffsetPath:

Public Member Functions
virtual void	AddSegmentsToList (const std::vector< NXOpen::Routing::ISegment * > &objs)
	Adds segment(s) to an IPath object.
double	BendRadius ()
	Returns the bend radius for an offset object.
double	BendRatio ()
	Returns the bend ratio for an offset object.
virtual NXOpen::Routing::ControlPoint *	ControlPointEnd ()
	Returns the end ControlPoint for an IPath object.
virtual NXOpen::Routing::ControlPoint *	ControlPointStart ()
	Returns the start ControlPoint for an IPath object.
bool	CopyCornerFlag ()
	Returns the copy corner flag for an offset object.
virtual void	DelSegmentsFromList (const std::vector< NXOpen::Routing::ISegment * > &objs)
	Removes segment(s) from the IPath object.
NXOpen::Routing::IPath *	GetMasterPath ()
	The master path object for this offset object.
std::vector < NXOpen::Routing::IPath * >	GetOffsetPaths ()
	Returns the list of all of the offset paths for a master path.
std::vector < NXOpen::Routing::ISegment * >	GetOffsetPathSegments ()
	The path segments for an offset object.
void	GetOffsetReferenceAxes (NXOpen::Point3d *orgin, NXOpen::Vector3d *xVector, NXOpen::Vector3d *yVector)
	The reference axes for an offset object.
virtual std::vector < NXOpen::Routing::ISegment * >	GetSegmentList ()
	Returns the list of all of the segments contained in the IPath.
bool	IsMaster ()
	Returns the isMaster state for this offset object.
bool	IsSlave ()
	Returns the isSlave state for this offset object.
bool	MaintainStockFlag ()
	Returns the use maintain stock flag for an offset object.
NXOpen::Vector3d	OffsetVector ()
	Returns the vector for an offset object.
void	RemovePathAssociativityFromParent ()
	Breaks the associativity of a child ( slave ) path to its parent ( master ) path.
void	RemovePathAssociativityToImmediateChildren ()
	Breaks the associativity of a parent ( master ) path to its immediate children ( slave ) paths.
void	SetBendRadius (double radius)
	Sets the bend radius for an offset object.
void	SetBendRatio (double ratio)
	Sets the bend ratio for an offset object.
virtual void	SetControlPointEnd (NXOpen::Routing::ControlPoint *end)
	Sets the end ControlPoint for an IPath object.
virtual void	SetControlPointStart (NXOpen::Routing::ControlPoint *start)
	Sets the start ControlPoint for an IPath object.
void	SetCopyCornerFlag (bool copyCorner)
	Sets the copy corner flag for an offset object.
void	SetMaintainStockFlag (bool maintainStock)
	Sets the use maintain stock flag for an offset object.
void	SetMaster (bool masterState)
	Sets the isMaster state for this offset object.
void	SetMasterPath (NXOpen::Routing::IPath *masterPath)
	The master path object for this offset object.
void	SetOffsetPathSegments (const std::vector< NXOpen::Routing::ISegment * > &segments)
	The path segments for an offset object.
void	SetOffsetReferenceAxes (const NXOpen::Point3d &orgin, const NXOpen::Vector3d &xVector, const NXOpen::Vector3d &yVector)
	The reference axes for an offset object.
void	SetOffsetVector (const NXOpen::Vector3d &vector)
	Sets the vector for an offset object.
void	SetSlave (bool masterState)
	Sets the isSlave state for this offset object.
void	SetUseBendRatio (bool ratioState)
	Sets the use bend ratio flag for an offset object.
bool	UseBendRatio ()
	Returns the use bend ratio flag for an offset object.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger,   AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference,   AttributeTypeAny = 100 }
	Specifies attribute type. More...
enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Detailed Description

The Routing OffsetPath object is the set of information needed to define an offset route.

 <br> To obtain an instance of this class use @link Routing::OffsetPathCollection Routing::OffsetPathCollection@endlink   <br>

Created in NX4.0.0.

Member Function Documentation

virtual void NXOpen::Routing::OffsetPath::AddSegmentsToList ( const std::vector< NXOpen::Routing::ISegment * > &  objs )

virtual

Adds segment(s) to an IPath object.

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

objs	list of segments that are to be added

Implements NXOpen::Routing::IPath.

double NXOpen::Routing::OffsetPath::BendRadius

(

)

Returns the bend radius for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

double NXOpen::Routing::OffsetPath::BendRatio

(

)

Returns the bend ratio for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

virtual NXOpen::Routing::ControlPoint* NXOpen::Routing::OffsetPath::ControlPointEnd ( )

virtual

Returns the end ControlPoint for an IPath object.

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Implements NXOpen::Routing::IPath.

virtual NXOpen::Routing::ControlPoint* NXOpen::Routing::OffsetPath::ControlPointStart ( )

virtual

Returns the start ControlPoint for an IPath object.

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Implements NXOpen::Routing::IPath.

bool NXOpen::Routing::OffsetPath::CopyCornerFlag

(

)

Returns the copy corner flag for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

virtual void NXOpen::Routing::OffsetPath::DelSegmentsFromList ( const std::vector< NXOpen::Routing::ISegment * > &  objs )

virtual

Removes segment(s) from the IPath object.

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

objs	list of segments that are to be deleted

Implements NXOpen::Routing::IPath.

NXOpen::Routing::IPath* NXOpen::Routing::OffsetPath::GetMasterPath

(

)

The master path object for this offset object.

Returns

master path for this offset object
Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

std::vector<NXOpen::Routing::IPath *> NXOpen::Routing::OffsetPath::GetOffsetPaths

(

)

Returns the list of all of the offset paths for a master path.

Returns

list of all of the offset paths in this master object
Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

std::vector<NXOpen::Routing::ISegment *> NXOpen::Routing::OffsetPath::GetOffsetPathSegments

(

)

The path segments for an offset object.

Returns

segment list for the offset object
Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

void NXOpen::Routing::OffsetPath::GetOffsetReferenceAxes	(	NXOpen::Point3d *	orgin,
		NXOpen::Vector3d *	xVector,
		NXOpen::Vector3d *	yVector
	)

The reference axes for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

orgin	origin for the offset object
xVector	X reference axes for the offset object
yVector	Y reference axes for the offset object

virtual std::vector<NXOpen::Routing::ISegment *> NXOpen::Routing::OffsetPath::GetSegmentList ( )

virtual

Returns the list of all of the segments contained in the IPath.

Returns

list of all of the segments in this IPath object
Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Implements NXOpen::Routing::IPath.

bool NXOpen::Routing::OffsetPath::IsMaster

(

)

Returns the isMaster state for this offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

bool NXOpen::Routing::OffsetPath::IsSlave

(

)

Returns the isSlave state for this offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

bool NXOpen::Routing::OffsetPath::MaintainStockFlag

(

)

Returns the use maintain stock flag for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Vector3d NXOpen::Routing::OffsetPath::OffsetVector

(

)

Returns the vector for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

void NXOpen::Routing::OffsetPath::RemovePathAssociativityFromParent

(

)

Breaks the associativity of a child ( slave ) path to its parent ( master ) path.

Created in NX5.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

void NXOpen::Routing::OffsetPath::RemovePathAssociativityToImmediateChildren

(

)

Breaks the associativity of a parent ( master ) path to its immediate children ( slave ) paths.

Created in NX5.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

void NXOpen::Routing::OffsetPath::SetBendRadius

(

double

radius

)

Sets the bend radius for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

radius

radius

void NXOpen::Routing::OffsetPath::SetBendRatio

(

double

ratio

)

Sets the bend ratio for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

ratio

ratio

virtual void NXOpen::Routing::OffsetPath::SetControlPointEnd ( NXOpen::Routing::ControlPoint *  end )

virtual

Sets the end ControlPoint for an IPath object.

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

end	end ControlPoint for the IPath object

Implements NXOpen::Routing::IPath.

virtual void NXOpen::Routing::OffsetPath::SetControlPointStart ( NXOpen::Routing::ControlPoint *  start )

virtual

Sets the start ControlPoint for an IPath object.

Created in NX4.0.0.

License requirements : routing_base ("Routing Basic")

Parameters

start

start ControlPoint for the IPath object

Implements NXOpen::Routing::IPath.

void NXOpen::Routing::OffsetPath::SetCopyCornerFlag

(

bool

copyCorner

)

Sets the copy corner flag for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

copyCorner

copy corner

void NXOpen::Routing::OffsetPath::SetMaintainStockFlag

(

bool

maintainStock

)

Sets the use maintain stock flag for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

maintainStock

maintain stock

void NXOpen::Routing::OffsetPath::SetMaster

(

bool

masterState

)

Sets the isMaster state for this offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

masterState

the state of the offset path object

void NXOpen::Routing::OffsetPath::SetMasterPath

(

NXOpen::Routing::IPath *

masterPath

)

The master path object for this offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

masterPath

master path for this offset object

void NXOpen::Routing::OffsetPath::SetOffsetPathSegments

(

const std::vector< NXOpen::Routing::ISegment * > &

segments

)

The path segments for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

segments

segment list for the offset object

void NXOpen::Routing::OffsetPath::SetOffsetReferenceAxes	(	const NXOpen::Point3d &	orgin,
		const NXOpen::Vector3d &	xVector,
		const NXOpen::Vector3d &	yVector
	)

The reference axes for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

orgin	origin for the offset object
xVector	X reference axes for the offset object
yVector	Y reference axes for the offset object

void NXOpen::Routing::OffsetPath::SetOffsetVector

(

const NXOpen::Vector3d &

vector

)

Sets the vector for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

vector

vector for the offset object

void NXOpen::Routing::OffsetPath::SetSlave

(

bool

masterState

)

Sets the isSlave state for this offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

masterState

the state of the offset path object

void NXOpen::Routing::OffsetPath::SetUseBendRatio

(

bool

ratioState

)

Sets the use bend ratio flag for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

ratioState

ratio state

bool NXOpen::Routing::OffsetPath::UseBendRatio

(

)

Returns the use bend ratio flag for an offset object.

Created in NX4.0.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

---

The documentation for this class was generated from the following file:

• Routing_OffsetPath.hxx
