The Electrical ShieldDevice corresponds to a shield instance of Routing::Electrical::ElectricalStockDevice . More...

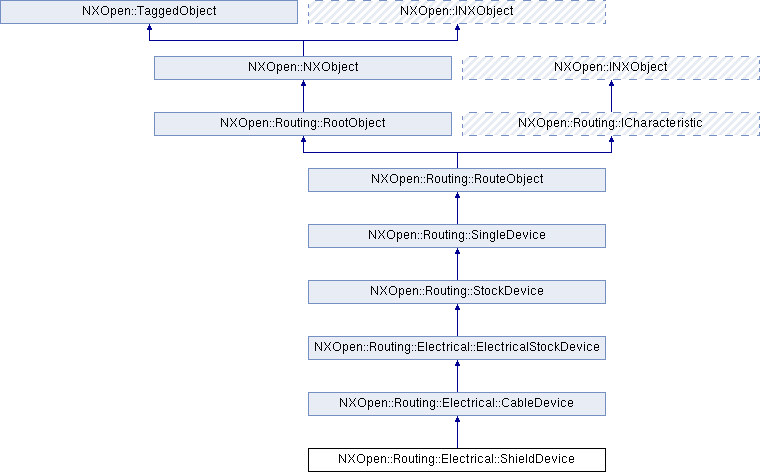

Inheritance diagram for NXOpen::Routing::Electrical::ShieldDevice:
Additional Inherited Members | |
 Public Types inherited from NXOpen::Routing::Electrical::ElectricalStockDevice | |
| enum | AutoRouteSel { AutoRouteSelBundleDiameter, AutoRouteSelLeastBundles, AutoRouteSelDesignRules, AutoRouteSelLeastSegments, AutoRouteSelShortestLength } |
| Auto-route selections. More... | |
| enum | RouteLevel { RouteLevelPin, RouteLevelComp, RouteLevelMixed, RouteLevelPartial } |
| Routing level. More... | |
| enum | RouteTypes { RouteTypesDefaultRoute = -1, RouteTypesAutoRoute, RouteTypesManualRoute } |
| Route types (manual/auto). More... | |
| Public Member Functions inherited from NXOpen::Routing::Electrical::CableDevice | |
| NXOpen::Routing::Electrical::CableDefinition * | GetAssemblyDefinition () |
| Returns the associated Routing::Electrical::CableDefinition . | |
| NXString | GetConduitPartNumber () |
| Returns the part number of the conduit applied over this Routing::Electrical::CableDevice object. | |
| void | ImportCablePart (const NXString &partName) |
| Loads the given cable part and imports the connections from given part and adds them as children to the Routing::Electrical::CableDevice . | |
| void | ImportCablePart (const char *partName) |
| Loads the given cable part and imports the connections from given part and adds them as children to the Routing::Electrical::CableDevice . | |
| void | SetConduitPartNumber (const NXString &conduitPartNumber) |
| Sets the part number of the conduit to be applied over this Routing::Electrical::CableDevice object. | |
| void | SetConduitPartNumber (const char *conduitPartNumber) |
| Sets the part number of the conduit to be applied over this Routing::Electrical::CableDevice object. | |
Detailed Description
The Electrical ShieldDevice corresponds to a shield instance of Routing::Electrical::ElectricalStockDevice .
An electrical shield device is both an assembly definition and a electrical stock device.
<br> Creator not available in KF. <br>
Created in NX4.0.2.
The documentation for this class was generated from the following file:
- Routing_Electrical_ShieldDevice.hxx
