Builder class for Cope Corner object
To create a new instance of this class, use Routing::RouteManager::CreateCopeCornerBuilder

More...

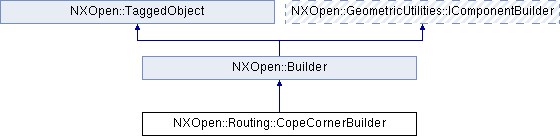

Inheritance diagram for NXOpen::Routing::CopeCornerBuilder:

Public Member Functions
NXOpen::SelectNXObject *	SelectControlPoint ()
	Returns the user selected Routing::ControlPoint for cope corner creation.

NXOpen::SelectNXObjectList *	SelectCopeStock ()
	Returns the user selected correct object where correct object is Routing::Stock and Routing::ISegment .

void	SetStockList (const std::vector< NXOpen::Routing::Stock * > &objects)
	Set the Routing::Stock object list when list box is updated.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Builder class for Cope Corner object
To create a new instance of this class, use Routing::RouteManager::CreateCopeCornerBuilder

Created in NX7.5.0.

Member Function Documentation

NXOpen::SelectNXObject* NXOpen::Routing::CopeCornerBuilder::SelectControlPoint ( )

Returns the user selected Routing::ControlPoint for cope corner creation.

Deprecated:: Deprecated in NX8.0.0. Use Routing::AssignCornerBuilder instead.

Created in NX7.5.0.

License requirements : routing_advanced ("Routing Advanced")

NXOpen::SelectNXObjectList* NXOpen::Routing::CopeCornerBuilder::SelectCopeStock ( )

Returns the user selected correct object where correct object is Routing::Stock and Routing::ISegment .

Deprecated:: Deprecated in NX8.0.0. Use Routing::AssignCornerBuilder instead.

Created in NX7.5.0.

License requirements : routing_advanced ("Routing Advanced")

void NXOpen::Routing::CopeCornerBuilder::SetStockList ( const std::vector< NXOpen::Routing::Stock * > & objects )

Set the Routing::Stock object list when list box is updated.

Deprecated:: Deprecated in NX8.0.0. Use Routing::AssignCornerBuilder instead.

Created in NX7.5.0.

License requirements : routing_advanced ("Routing Advanced")

Parameters

objects Routing Stocks for cope creation
