NXOpen::PDM::PartCreationObjectAttributePropertiesBuilder Class Reference

Represents an PDM::PartCreationObjectAttributePropertiesBuilder . More...

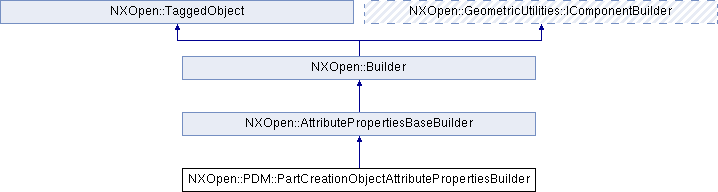

Inheritance diagram for NXOpen::PDM::PartCreationObjectAttributePropertiesBuilder:

Additional Inherited Members
Public Types inherited from NXOpen::AttributePropertiesBaseBuilder
enum	BooleanValueOptions { BooleanValueOptionsFalse, BooleanValueOptionsTrue }
	The value choices for an attribute of type Boolean. More...
enum	DataTypeOptions {   DataTypeOptionsNull, DataTypeOptionsBoolean, DataTypeOptionsInteger, DataTypeOptionsNumber,   DataTypeOptionsString, DataTypeOptionsDate }
	Specifies the data type of the attribute, this cannot be changed once the attribute has been created. More...
enum	ObjectOptions {   ObjectOptionsObject, ObjectOptionsFeature, ObjectOptionsOccurrence, ObjectOptionsComponentInstance,   ObjectOptionsReferenceSet, ObjectOptionsObjectInComponentPart, ObjectOptionsComponentAsPartAttribute, ObjectOptionsEmpty }
	Specifies which object will be used when applying attributes. More...
Public Member Functions inherited from NXOpen::AttributePropertiesBaseBuilder
int	ArrayIndex ()
	Returns the array index.
NXOpen::AttributePropertiesBaseBuilder::BooleanValueOptions	BooleanValue ()
	Returns the boolean value.
NXString	Category ()
	Returns the category.
bool	CreateAttribute ()
	Create the attribute from the data set in the builder.
NXOpen::AttributePropertiesBaseBuilder::DataTypeOptions	DataType ()
	Returns the data type, which determines the type of attribute to be created.
NXOpen::DateBuilder *	DateValue ()
	Returns the date value.
void	Delete (NXOpen::NXObject *object)
	Delete the attribute from the given object.
void	DeleteArray (NXOpen::NXObject *object)
	Delete the attribute array from the given object.
NXOpen::Expression *	Expression ()
	Returns the expression referenced from this attribute.
int	IntegerValue ()
	Returns the integer value.
bool	IsArray ()
	Returns the 'is array' flag is set for attributes that have more than one value.
bool	IsReferenceType ()
	Returns the 'is reference type' flag is set for attributes that are linked to system expressions.
bool	LockOnSave ()
	Returns the 'LockOnSave' flag is set for attributes that will be locked once the part is saved (and reloaded) Created in NX8.0.0.
double	NumberValue ()
	Returns the number value.
NXOpen::AttributePropertiesBaseBuilder::ObjectOptions	ObjectPicker ()
	Returns the object picker.
NXOpen::SelectNXObjectList *	SelectedObjects ()
	Returns the selected object(s) list.
void	SetArray (bool isArray)
	Sets the 'is array' flag is set for attributes that have more than one value.
void	SetArrayIndex (int arrayIndex)
	Sets the array index.
void	SetAttributeObjects (const std::vector< NXOpen::NXObject * > &objects)
	Sets the array of objects that have this attribute Created in NX8.5.0.
void	SetBooleanValue (NXOpen::AttributePropertiesBaseBuilder::BooleanValueOptions boolValue)
	Sets the boolean value.
void	SetCategory (const NXString &category)
	Sets the category.
void	SetCategory (const char *category)
	Sets the category.
void	SetDataType (NXOpen::AttributePropertiesBaseBuilder::DataTypeOptions dataType)
	Sets the data type, which determines the type of attribute to be created.
void	SetExpression (NXOpen::Expression *expression)
	Sets the expression referenced from this attribute.
void	SetIntegerValue (int integerValue)
	Sets the integer value.
void	SetLockOnSave (bool lockOnSave)
	Sets the 'LockOnSave' flag is set for attributes that will be locked once the part is saved (and reloaded) Created in NX8.0.0.
void	SetNumberValue (double numberValue)
	Sets the number value.
void	SetObjectPicker (NXOpen::AttributePropertiesBaseBuilder::ObjectOptions objectPicker)
	Sets the object picker.
void	SetReferenceType (bool isReferenceType)
	Sets the 'is reference type' flag is set for attributes that are linked to system expressions.
void	SetStringValue (const NXString &stringValue)
	Sets the string value.
void	SetStringValue (const char *stringValue)
	Sets the string value.
void	SetTitle (const NXString &title)
	Sets the attribute title.
void	SetTitle (const char *title)
	Sets the attribute title.
void	SetUnits (const NXString &units)
	Sets the units associated with an attribute of type Number.
void	SetUnits (const char *units)
	Sets the units associated with an attribute of type Number.
NXString	StringValue ()
	Returns the string value.
NXString	Title ()
	Returns the attribute title.
NXString	Units ()
	Returns the units associated with an attribute of type Number.

Detailed Description

Represents an PDM::PartCreationObjectAttributePropertiesBuilder .

 <br> To create a new instance of this class, use @link PDM::PartCreationObject::CreateAttributePropertiesBuilder  PDM::PartCreationObject::CreateAttributePropertiesBuilder @endlink  <br>

Default values.

Property	Value
BooleanValue	False
DataType	String
IntegerValue	0
NumberValue	0
ObjectPicker	Object

Deprecated:

Deprecated in NX8.5.0. Use AttributePropertiesBuilder instead.

Created in NX8.0.0.

---

The documentation for this class was generated from the following file:

• PDM_PartCreationObjectAttributePropertiesBuilder.hxx
