NXOpen::NXTo2dCreator Class Reference

Represents a NXTo2dCreator to be used when exporting the 2D Data This class is created using DexManager . More...

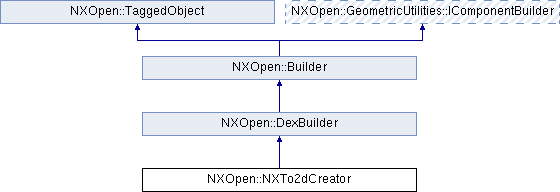

Inheritance diagram for NXOpen::NXTo2dCreator:

Public Types
enum	ExportDataOption { ExportDataOptionModelData, ExportDataOptionDrawing }
	Export Data Option. More...
enum	ExportFromOption { ExportFromOptionDisplayPart, ExportFromOptionExistingPart }
	Export From Option. More...
enum	OutputAsOption { OutputAsOptionNXPartFile, OutputAsOptionIGESFile }
	Output As Option. More...
enum	OutputToOption { OutputToOptionModeling, OutputToOptionDrafting }
	Output To Option. More...

Public Member Functions
bool	ConvertGDT ()
	Returns the convert gdt - if set to true then GDT will convertd as group Created in NX6.0.0.
NXString	DrawingName ()
	Returns the drawing Name - name of drawing to export Created in NX6.0.0.
NXOpen::NXTo2dCreator::ExportDataOption	ExportData ()
	Returns the export data - export model data or drawings Created in NX6.0.0.
NXOpen::NXTo2dCreator::ExportFromOption	ExportFrom ()
	Returns the export from - this option will determine if data from display part or existing part is exported Created in NX6.0.0.
NXOpen::ObjectSelector *	ExportSelectionBlock ()
	Returns the export selection block - the object selection will be done by this block.
bool	FacetBodies ()
	Returns the facet bodies - if set to true facet bodies will be exported to 2d part Created in NX6.0.0.
NXString	IgesSettingsFile ()
	Returns the nxto2d settings file - settings file to read default otions for iges Created in NX6.0.0.
NXString	InputFile ()
	Returns the input file - name of file which is being exported Created in NX6.0.0.
bool	Jama ()
	Returns the jama - if set to true the exported data will be Japanese Automotive compliant Created in NX6.0.0.
double	MaxLineThickness ()
	Returns the max line thickness - maximum line thickness in resulting iges file Created in NX6.0.0.
bool	MaxSystem3DModelSpace ()
	Returns the sys defmaxThreeDmdl space - if set to true then system defined maximum 3D model space will be used Created in NX6.0.0.
bool	MaxSystemPointRes ()
	Returns the sys defidentical point resolution - if set to true then system defined tolerance will be used to find identical points Created in NX6.0.0.
double	MaxUser3DModelSpace ()
	Returns the maxThree dmdl space - if not using system defined maximum 3D model space then specifiy the new value Created in NX6.0.0.
double	MaxUserPointRes ()
	Returns the identical point resolution - if not using system defined tolerance for identical points then specify new value Created in NX6.0.0.
NXString	Nxto2dSettingsFile ()
	Returns the nxto2d settings file - settings file to read default otions for nxto2d Created in NX6.0.0.
NXString	OutputFile ()
	Returns the output file - the name of nx/iges/dxf/dwg file where output is being written Created in NX6.0.0.
NXOpen::NXTo2dCreator::OutputAsOption	OutputFileType ()
	Returns the output file type - output file format Created in NX6.0.0.
NXOpen::NXTo2dCreator::OutputToOption	OutputTo ()
	Returns the output to - where to put data in model world or drawing Created in NX6.0.0.
bool	OverlappingEntities ()
	Returns the overlapping entities - if set to true, the overlpping entities will be removed Created in NX6.0.0.
void	SaveIgesSettings (const NXString &filename)
	Saves the save settings - this will save iges the settings to a file sepcified Created in NX6.0.0.
void	SaveIgesSettings (const char *filename)
	Saves the save settings - this will save iges the settings to a file sepcified Created in NX6.0.0.
void	SaveNxto2dSettings (const NXString &filename)
	Returns the save settings - this will save nxto2d the settings to a file sepcified Created in NX6.0.0.
void	SaveNxto2dSettings (const char *filename)
	Returns the save settings - this will save nxto2d the settings to a file sepcified Created in NX6.0.0.
void	SetConvertGDT (bool convertGDT)
	Sets the convert gdt - if set to true then GDT will convertd as group Created in NX6.0.0.
void	SetDrawingArray (const std::vector< NXOpen::TaggedObject * > &objects)
	Sets the drawing - sets the list of drawings to translate Created in NX6.0.0.
void	SetDrawingName (const NXString &drawingName)
	Sets the drawing Name - name of drawing to export Created in NX6.0.0.
void	SetDrawingName (const char *drawingName)
	Sets the drawing Name - name of drawing to export Created in NX6.0.0.
void	SetExportData (NXOpen::NXTo2dCreator::ExportDataOption exportData)
	Sets the export data - export model data or drawings Created in NX6.0.0.
void	SetExportFrom (NXOpen::NXTo2dCreator::ExportFromOption exportFrom)
	Sets the export from - this option will determine if data from display part or existing part is exported Created in NX6.0.0.
void	SetFacetBodies (bool facetBodies)
	Sets the facet bodies - if set to true facet bodies will be exported to 2d part Created in NX6.0.0.
void	SetIgesSettingsFile (const NXString &filename)
	Sets the nxto2d settings file - settings file to read default otions for iges Created in NX6.0.0.
void	SetIgesSettingsFile (const char *filename)
	Sets the nxto2d settings file - settings file to read default otions for iges Created in NX6.0.0.
void	SetInputFile (const NXString &filename)
	Sets the input file - name of file which is being exported Created in NX6.0.0.
void	SetInputFile (const char *filename)
	Sets the input file - name of file which is being exported Created in NX6.0.0.
void	SetJama (bool jama)
	Sets the jama - if set to true the exported data will be Japanese Automotive compliant Created in NX6.0.0.
void	SetMaxLineThickness (double maxLineThickness)
	Sets the max line thickness - maximum line thickness in resulting iges file Created in NX6.0.0.
void	SetMaxSystem3DModelSpace (bool maxSystem3DModelSpace)
	Sets the sys defmaxThreeDmdl space - if set to true then system defined maximum 3D model space will be used Created in NX6.0.0.
void	SetMaxSystemPointRes (bool maxSystemPointRes)
	Sets the sys defidentical point resolution - if set to true then system defined tolerance will be used to find identical points Created in NX6.0.0.
void	SetMaxUser3DModelSpace (double maxUser3DModelSpace)
	Sets the maxThree dmdl space - if not using system defined maximum 3D model space then specifiy the new value Created in NX6.0.0.
void	SetMaxUserPointRes (double maxUserPointRes)
	Sets the identical point resolution - if not using system defined tolerance for identical points then specify new value Created in NX6.0.0.
void	SetNxto2dSettingsFile (const NXString &filename)
	Sets the nxto2d settings file - settings file to read default otions for nxto2d Created in NX6.0.0.
void	SetNxto2dSettingsFile (const char *filename)
	Sets the nxto2d settings file - settings file to read default otions for nxto2d Created in NX6.0.0.
void	SetOutputFile (const NXString &filename)
	Sets the output file - the name of nx/iges/dxf/dwg file where output is being written Created in NX6.0.0.
void	SetOutputFile (const char *filename)
	Sets the output file - the name of nx/iges/dxf/dwg file where output is being written Created in NX6.0.0.
void	SetOutputFileType (NXOpen::NXTo2dCreator::OutputAsOption outputFileType)
	Sets the output file type - output file format Created in NX6.0.0.
void	SetOutputTo (NXOpen::NXTo2dCreator::OutputToOption outputTo)
	Sets the output to - where to put data in model world or drawing Created in NX6.0.0.
void	SetOverlappingEntities (bool overlappingEntities)
	Sets the overlapping entities - if set to true, the overlpping entities will be removed Created in NX6.0.0.
void	SetSpCurveTolerance (double spCurveTolerance)
	Sets the sp curve tolerance Created in NX6.0.0.
void	SetViewName (const NXString &viewName)
	Sets the View Name - name of view to export Created in NX6.0.0.
void	SetViewName (const char *viewName)
	Sets the View Name - name of view to export Created in NX6.0.0.
double	SpCurveTolerance ()
	Returns the sp curve tolerance Created in NX6.0.0.
NXString	ViewName ()
	Returns the View Name - name of view to export Created in NX6.0.0.
Public Member Functions inherited from NXOpen::DexBuilder
bool	ProcessHoldFlag ()
	Returns the process hold flag - set to true if user wants to wait until transaltion process gets completed Created in NX8.0.0.
void	SetProcessHoldFlag (bool doingFileSave)
	Sets the process hold flag - set to true if user wants to wait until transaltion process gets completed Created in NX8.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a NXTo2dCreator to be used when exporting the 2D Data This class is created using DexManager .

NULL object will be returned from Commit().
    The workpart should be present in the session before calling commit().  <br> To create a new instance of this class, use @link DexManager::CreateNxto2dCreator  DexManager::CreateNxto2dCreator @endlink  <br>

Default values.

Property	Value
ConvertGDT	0
ExportData	ModelData
ExportFrom	DisplayPart
FacetBodies	0
Jama	0
MaxLineThickness	0
MaxSystem3DModelSpace	0
MaxSystemPointRes	0
MaxUser3DModelSpace	0
MaxUserPointRes	0
OutputFileType	NXPartFile
OutputTo	Modeling
OverlappingEntities	0
ProcessHoldFlag	0
SpCurveTolerance	0.058

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::NXTo2dCreator::ExportDataOption

Export Data Option.

Enumerator:

ExportDataOptionModelData	export model data only
ExportDataOptionDrawing	export drawings only

enum NXOpen::NXTo2dCreator::ExportFromOption

Export From Option.

Enumerator:

ExportFromOptionDisplayPart	export data from displayed part
ExportFromOptionExistingPart	export data from existing part which is on disk

enum NXOpen::NXTo2dCreator::OutputAsOption

Output As Option.

Enumerator:

OutputAsOptionNXPartFile	final output as nx part
OutputAsOptionIGESFile	final output as iges file

enum NXOpen::NXTo2dCreator::OutputToOption

Output To Option.

Enumerator:

OutputToOptionModeling	output to modeling
OutputToOptionDrafting	output to drafting

Member Function Documentation

bool NXOpen::NXTo2dCreator::ConvertGDT

(

)

Returns the convert gdt - if set to true then GDT will convertd as group
Created in NX6.0.0.

License requirements : None

NXString NXOpen::NXTo2dCreator::DrawingName

(

)

Returns the drawing Name - name of drawing to export
Created in NX6.0.0.

License requirements : None

NXOpen::NXTo2dCreator::ExportDataOption NXOpen::NXTo2dCreator::ExportData

(

)

Returns the export data - export model data or drawings
Created in NX6.0.0.

License requirements : None

NXOpen::NXTo2dCreator::ExportFromOption NXOpen::NXTo2dCreator::ExportFrom

(

)

Returns the export from - this option will determine if data from display part or existing part is exported
Created in NX6.0.0.

License requirements : None

NXOpen::ObjectSelector* NXOpen::NXTo2dCreator::ExportSelectionBlock

(

)

Returns the export selection block - the object selection will be done by this block.

Created in NX6.0.0.

License requirements : None

bool NXOpen::NXTo2dCreator::FacetBodies

(

)

Returns the facet bodies - if set to true facet bodies will be exported to 2d part
Created in NX6.0.0.

License requirements : None

NXString NXOpen::NXTo2dCreator::IgesSettingsFile

(

)

Returns the nxto2d settings file - settings file to read default otions for iges
Created in NX6.0.0.

License requirements : None

NXString NXOpen::NXTo2dCreator::InputFile

(

)

Returns the input file - name of file which is being exported
Created in NX6.0.0.

License requirements : None

bool NXOpen::NXTo2dCreator::Jama

(

)

Returns the jama - if set to true the exported data will be Japanese Automotive compliant
Created in NX6.0.0.

License requirements : None

double NXOpen::NXTo2dCreator::MaxLineThickness

(

)

Returns the max line thickness - maximum line thickness in resulting iges file
Created in NX6.0.0.

License requirements : None

bool NXOpen::NXTo2dCreator::MaxSystem3DModelSpace

(

)

Returns the sys defmaxThreeDmdl space - if set to true then system defined maximum 3D model space will be used
Created in NX6.0.0.

License requirements : None

bool NXOpen::NXTo2dCreator::MaxSystemPointRes

(

)

Returns the sys defidentical point resolution - if set to true then system defined tolerance will be used to find identical points
Created in NX6.0.0.

License requirements : None

double NXOpen::NXTo2dCreator::MaxUser3DModelSpace

(

)

Returns the maxThree dmdl space - if not using system defined maximum 3D model space then specifiy the new value
Created in NX6.0.0.

License requirements : None

double NXOpen::NXTo2dCreator::MaxUserPointRes

(

)

Returns the identical point resolution - if not using system defined tolerance for identical points then specify new value
Created in NX6.0.0.

License requirements : None

NXString NXOpen::NXTo2dCreator::Nxto2dSettingsFile

(

)

Returns the nxto2d settings file - settings file to read default otions for nxto2d
Created in NX6.0.0.

License requirements : None

NXString NXOpen::NXTo2dCreator::OutputFile

(

)

Returns the output file - the name of nx/iges/dxf/dwg file where output is being written
Created in NX6.0.0.

License requirements : None

NXOpen::NXTo2dCreator::OutputAsOption NXOpen::NXTo2dCreator::OutputFileType

(

)

Returns the output file type - output file format
Created in NX6.0.0.

License requirements : None

NXOpen::NXTo2dCreator::OutputToOption NXOpen::NXTo2dCreator::OutputTo

(

)

Returns the output to - where to put data in model world or drawing
Created in NX6.0.0.

License requirements : None

bool NXOpen::NXTo2dCreator::OverlappingEntities

(

)

Returns the overlapping entities - if set to true, the overlpping entities will be removed
Created in NX6.0.0.

License requirements : None

void NXOpen::NXTo2dCreator::SaveIgesSettings

(

const NXString &

filename

)

Saves the save settings - this will save iges the settings to a file sepcified
Created in NX6.0.0.

License requirements : None

Parameters

filename

NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::NXTo2dCreator::SaveIgesSettings

(

const char *

filename

)

Saves the save settings - this will save iges the settings to a file sepcified
Created in NX6.0.0.

License requirements : None

Parameters

filename

NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::NXTo2dCreator::SaveNxto2dSettings

(

const NXString &

filename

)

Returns the save settings - this will save nxto2d the settings to a file sepcified
Created in NX6.0.0.

License requirements : None

Parameters

filename

NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::NXTo2dCreator::SaveNxto2dSettings

(

const char *

filename

)

Returns the save settings - this will save nxto2d the settings to a file sepcified
Created in NX6.0.0.

License requirements : None

Parameters

filename

NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::NXTo2dCreator::SetConvertGDT

(

bool

convertGDT

)

Sets the convert gdt - if set to true then GDT will convertd as group
Created in NX6.0.0.

License requirements : None

Parameters

convertGDT

convertgdt

void NXOpen::NXTo2dCreator::SetDrawingArray

(

const std::vector< NXOpen::TaggedObject * > &

objects

)

Sets the drawing - sets the list of drawings to translate
Created in NX6.0.0.

License requirements : None

Parameters

objects

items in list

void NXOpen::NXTo2dCreator::SetDrawingName

(

const NXString &

drawingName

)

Sets the drawing Name - name of drawing to export
Created in NX6.0.0.

License requirements : None

Parameters

drawingName

drawingname

void NXOpen::NXTo2dCreator::SetDrawingName

(

const char *

drawingName

)

Sets the drawing Name - name of drawing to export
Created in NX6.0.0.

License requirements : None

Parameters

drawingName

drawingname

void NXOpen::NXTo2dCreator::SetExportData

(

NXOpen::NXTo2dCreator::ExportDataOption

exportData

)

Sets the export data - export model data or drawings
Created in NX6.0.0.

License requirements : None

Parameters

exportData

exportdata

void NXOpen::NXTo2dCreator::SetExportFrom

(

NXOpen::NXTo2dCreator::ExportFromOption

exportFrom

)

Sets the export from - this option will determine if data from display part or existing part is exported
Created in NX6.0.0.

License requirements : None

Parameters

exportFrom

exportfrom

void NXOpen::NXTo2dCreator::SetFacetBodies

(

bool

facetBodies

)

Sets the facet bodies - if set to true facet bodies will be exported to 2d part
Created in NX6.0.0.

License requirements : None

Parameters

facetBodies

facetbodies

void NXOpen::NXTo2dCreator::SetIgesSettingsFile

(

const NXString &

filename

)

Sets the nxto2d settings file - settings file to read default otions for iges
Created in NX6.0.0.

License requirements : None

Parameters

filename

filename

void NXOpen::NXTo2dCreator::SetIgesSettingsFile

(

const char *

filename

)

Sets the nxto2d settings file - settings file to read default otions for iges
Created in NX6.0.0.

License requirements : None

Parameters

filename

filename

void NXOpen::NXTo2dCreator::SetInputFile

(

const NXString &

filename

)

Sets the input file - name of file which is being exported
Created in NX6.0.0.

License requirements : None

Parameters

filename

filename

void NXOpen::NXTo2dCreator::SetInputFile

(

const char *

filename

)

Sets the input file - name of file which is being exported
Created in NX6.0.0.

License requirements : None

Parameters

filename

filename

void NXOpen::NXTo2dCreator::SetJama

(

bool

jama

)

Sets the jama - if set to true the exported data will be Japanese Automotive compliant
Created in NX6.0.0.

License requirements : None

Parameters

jama

jama

void NXOpen::NXTo2dCreator::SetMaxLineThickness

(

double

maxLineThickness

)

Sets the max line thickness - maximum line thickness in resulting iges file
Created in NX6.0.0.

License requirements : None

Parameters

maxLineThickness

maxlinethickness

void NXOpen::NXTo2dCreator::SetMaxSystem3DModelSpace

(

bool

maxSystem3DModelSpace

)

Sets the sys defmaxThreeDmdl space - if set to true then system defined maximum 3D model space will be used
Created in NX6.0.0.

License requirements : None

Parameters

maxSystem3DModelSpace

maxsystem3dmodelspace

void NXOpen::NXTo2dCreator::SetMaxSystemPointRes

(

bool

maxSystemPointRes

)

Sets the sys defidentical point resolution - if set to true then system defined tolerance will be used to find identical points
Created in NX6.0.0.

License requirements : None

Parameters

maxSystemPointRes

maxsystempointres

void NXOpen::NXTo2dCreator::SetMaxUser3DModelSpace

(

double

maxUser3DModelSpace

)

Sets the maxThree dmdl space - if not using system defined maximum 3D model space then specifiy the new value
Created in NX6.0.0.

License requirements : None

Parameters

maxUser3DModelSpace

maxuser3dmodelspace

void NXOpen::NXTo2dCreator::SetMaxUserPointRes

(

double

maxUserPointRes

)

Sets the identical point resolution - if not using system defined tolerance for identical points then specify new value
Created in NX6.0.0.

License requirements : None

Parameters

maxUserPointRes

maxuserpointres

void NXOpen::NXTo2dCreator::SetNxto2dSettingsFile

(

const NXString &

filename

)

Sets the nxto2d settings file - settings file to read default otions for nxto2d
Created in NX6.0.0.

License requirements : None

Parameters

filename

filename

void NXOpen::NXTo2dCreator::SetNxto2dSettingsFile

(

const char *

filename

)

Sets the nxto2d settings file - settings file to read default otions for nxto2d
Created in NX6.0.0.

License requirements : None

Parameters

filename

filename

void NXOpen::NXTo2dCreator::SetOutputFile

(

const NXString &

filename

)

Sets the output file - the name of nx/iges/dxf/dwg file where output is being written
Created in NX6.0.0.

License requirements : None

Parameters

filename

filename

void NXOpen::NXTo2dCreator::SetOutputFile

(

const char *

filename

)

Sets the output file - the name of nx/iges/dxf/dwg file where output is being written
Created in NX6.0.0.

License requirements : None

Parameters

filename

filename

void NXOpen::NXTo2dCreator::SetOutputFileType

(

NXOpen::NXTo2dCreator::OutputAsOption

outputFileType

)

Sets the output file type - output file format
Created in NX6.0.0.

License requirements : None

Parameters

outputFileType

outputfiletype

void NXOpen::NXTo2dCreator::SetOutputTo

(

NXOpen::NXTo2dCreator::OutputToOption

outputTo

)

Sets the output to - where to put data in model world or drawing
Created in NX6.0.0.

License requirements : None

Parameters

outputTo

outputto

void NXOpen::NXTo2dCreator::SetOverlappingEntities

(

bool

overlappingEntities

)

Sets the overlapping entities - if set to true, the overlpping entities will be removed
Created in NX6.0.0.

License requirements : None

Parameters

overlappingEntities

overlappingentities

void NXOpen::NXTo2dCreator::SetSpCurveTolerance

(

double

spCurveTolerance

)

Sets the sp curve tolerance
Created in NX6.0.0.

License requirements : None

Parameters

spCurveTolerance

spcurvetolerance

void NXOpen::NXTo2dCreator::SetViewName

(

const NXString &

viewName

)

Sets the View Name - name of view to export
Created in NX6.0.0.

License requirements : None

Parameters

viewName

viewname

void NXOpen::NXTo2dCreator::SetViewName

(

const char *

viewName

)

Sets the View Name - name of view to export
Created in NX6.0.0.

License requirements : None

Parameters

viewName

viewname

double NXOpen::NXTo2dCreator::SpCurveTolerance

(

)

Returns the sp curve tolerance
Created in NX6.0.0.

License requirements : None

NXString NXOpen::NXTo2dCreator::ViewName

(

)

Returns the View Name - name of view to export
Created in NX6.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• NXTo2dCreator.hxx
