Represents a Motion::PMDCMotorBuilder
To create a new instance of this class, use Motion::PMDCMotorCollection::CreatePmdcMotorBuilder

Created in NX6.0.0. More...

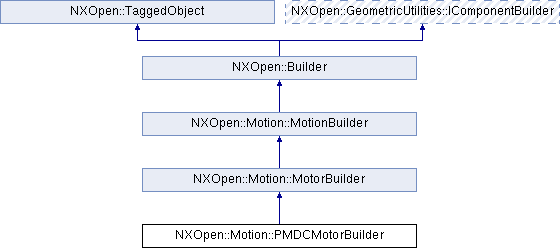

Inheritance diagram for NXOpen::Motion::PMDCMotorBuilder:

Public Types
enum	Type { TypeWithRotor, TypeWithoutRotor }
	Motor type. More...

Public Member Functions
double	DampingCoefficient ()
	Returns the damping coefficient Created in NX6.0.0.

double	Inductance ()
	Returns the inductance

NXOpen::Expression *	InductanceExpression ()
	Returns the Inductant Expression Created in NX8.5.0.

double	InitialCurrent ()
	Returns the initial current

NXOpen::Expression *	InitialCurrentExpression ()
	Returns the Initial Current Expression Created in NX8.5.0.

double	InitialSpeed ()
	Returns the initial speed Created in NX6.0.0.

NXOpen::Motion::PMDCMotorBuilder::Type	MotorType ()
	Returns the motor type Created in NX6.0.0.

NXString	Name ()
	Returns the name Created in NX6.0.0.

double	NominalVoltage ()
	Returns the nominal voltage

NXOpen::Expression *	NominalVoltageExpression ()
	Returns the Nominal Voltage Expression Created in NX8.5.0.

double	Resistance ()
	Returns the resistance

NXOpen::Expression *	ResistanceExpression ()
	Returns the Resistance Expression Created in NX8.5.0.

double	RotorInteria ()
	Returns the rotor interia Created in NX6.0.0.

void	SetDampingCoefficient (double dampingCoefficient)
	Sets the damping coefficient Created in NX6.0.0.

void	SetInductance (double inductance)
	Sets the inductance

void	SetInitialCurrent (double initialCurrent)
	Sets the initial current

void	SetInitialSpeed (double initialSpeed)
	Sets the initial speed Created in NX6.0.0.

void	SetMotorType (NXOpen::Motion::PMDCMotorBuilder::Type motorType)
	Sets the motor type Created in NX6.0.0.

void	SetName (const NXString &motorName)
	Sets the name Created in NX6.0.0.

void	SetName (const char *motorName)
	Sets the name Created in NX6.0.0.

void	SetNominalVoltage (double nominalVoltage)
	Sets the nominal voltage

void	SetResistance (double resistance)
	Sets the resistance

void	SetRotorInteria (double rotorInteria)
	Sets the rotor interia Created in NX6.0.0.

void	SetVoltageConstant (double voltageConstant)
	Sets the voltage constant

double	VoltageConstant ()
	Returns the voltage constant

NXOpen::Expression *	VoltageConstantExpression ()
	Returns the Voltage Constant Expression Created in NX8.5.0.

Detailed Description

Represents a Motion::PMDCMotorBuilder
To create a new instance of this class, use Motion::PMDCMotorCollection::CreatePmdcMotorBuilder

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Motion::PMDCMotorBuilder::Type

Motor type.

Enumerator:

TypeWithRotor	Included rotor - load torque.
TypeWithoutRotor	Excluded rotor - rotor speed.

Member Function Documentation

double NXOpen::Motion::PMDCMotorBuilder::DampingCoefficient ( )

Returns the damping coefficient
Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

double NXOpen::Motion::PMDCMotorBuilder::Inductance ( )

Returns the inductance

Deprecated:: Deprecated in NX8.5.0.

Obtion the exression using Motion::PMDCMotorBuilder::InductanceExpression to query or edit it.

Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

NXOpen::Expression* NXOpen::Motion::PMDCMotorBuilder::InductanceExpression ( )

Returns the Inductant Expression
Created in NX8.5.0.

License requirements : nx_motion_motor ("NX Motion Motor")

double NXOpen::Motion::PMDCMotorBuilder::InitialCurrent ( )

Returns the initial current

Deprecated:: Deprecated in NX8.5.0.

Obtion the exression using Motion::PMDCMotorBuilder::InitialCurrentExpression to query or edit it.

Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

NXOpen::Expression* NXOpen::Motion::PMDCMotorBuilder::InitialCurrentExpression ( )

Returns the Initial Current Expression
Created in NX8.5.0.

License requirements : nx_motion_motor ("NX Motion Motor")

double NXOpen::Motion::PMDCMotorBuilder::InitialSpeed ( )

Returns the initial speed
Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

NXOpen::Motion::PMDCMotorBuilder::Type NXOpen::Motion::PMDCMotorBuilder::MotorType ( )

Returns the motor type
Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

NXString NXOpen::Motion::PMDCMotorBuilder::Name ( )

Returns the name
Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

double NXOpen::Motion::PMDCMotorBuilder::NominalVoltage ( )

Returns the nominal voltage

Deprecated:: Deprecated in NX8.5.0.

Obtion the exression using Motion::PMDCMotorBuilder::NominalVoltageExpression to query or edit it.

Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

NXOpen::Expression* NXOpen::Motion::PMDCMotorBuilder::NominalVoltageExpression ( )

Returns the Nominal Voltage Expression
Created in NX8.5.0.

License requirements : nx_motion_motor ("NX Motion Motor")

double NXOpen::Motion::PMDCMotorBuilder::Resistance ( )

Returns the resistance

Deprecated:: Deprecated in NX8.5.0.

Obtion the exression using Motion::PMDCMotorBuilder::ResistanceExpression to query or edit it.

Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

NXOpen::Expression* NXOpen::Motion::PMDCMotorBuilder::ResistanceExpression ( )

Returns the Resistance Expression
Created in NX8.5.0.

License requirements : nx_motion_motor ("NX Motion Motor")

double NXOpen::Motion::PMDCMotorBuilder::RotorInteria ( )

Returns the rotor interia
Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

void NXOpen::Motion::PMDCMotorBuilder::SetDampingCoefficient ( double dampingCoefficient )

Sets the damping coefficient
Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

Parameters

dampingCoefficient damping coefficient

void NXOpen::Motion::PMDCMotorBuilder::SetInductance ( double inductance )

Sets the inductance

Deprecated:: Deprecated in NX8.5.0.

Obtion the exression using Motion::PMDCMotorBuilder::InductanceExpression to query or edit it.

Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

Parameters

inductance inductance

void NXOpen::Motion::PMDCMotorBuilder::SetInitialCurrent ( double initialCurrent )

Sets the initial current

Deprecated:: Deprecated in NX8.5.0.

Obtion the exression using Motion::PMDCMotorBuilder::InitialCurrentExpression to query or edit it.

Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

Parameters

initialCurrent initial current

void NXOpen::Motion::PMDCMotorBuilder::SetInitialSpeed ( double initialSpeed )

Sets the initial speed
Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

Parameters

initialSpeed initial speed

void NXOpen::Motion::PMDCMotorBuilder::SetMotorType ( NXOpen::Motion::PMDCMotorBuilder::Type motorType )

Sets the motor type
Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

Parameters

motorType motor type

void NXOpen::Motion::PMDCMotorBuilder::SetName ( const NXString & motorName )

Sets the name
Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

Parameters

motorName motor name

void NXOpen::Motion::PMDCMotorBuilder::SetName ( const char * motorName )

Sets the name
Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

Parameters

motorName motor name

void NXOpen::Motion::PMDCMotorBuilder::SetNominalVoltage ( double nominalVoltage )

Sets the nominal voltage

Deprecated:: Deprecated in NX8.5.0.

Obtion the exression using Motion::PMDCMotorBuilder::NominalVoltageExpression to query or edit it.

Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

Parameters

nominalVoltage nominal voltage

void NXOpen::Motion::PMDCMotorBuilder::SetResistance ( double resistance )

Sets the resistance

Deprecated:: Deprecated in NX8.5.0.

Obtion the exression using Motion::PMDCMotorBuilder::ResistanceExpression to query or edit it.

Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

Parameters

resistance resistance

void NXOpen::Motion::PMDCMotorBuilder::SetRotorInteria ( double rotorInteria )

Sets the rotor interia
Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

Parameters

rotorInteria rotor interia

void NXOpen::Motion::PMDCMotorBuilder::SetVoltageConstant ( double voltageConstant )

Sets the voltage constant

Deprecated:: Deprecated in NX8.5.0.

Obtion the exression using Motion::PMDCMotorBuilder::VoltageConstantExpression to query or edit it.

Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

Parameters

voltageConstant voltage constant

double NXOpen::Motion::PMDCMotorBuilder::VoltageConstant ( )

Returns the voltage constant

Deprecated:: Deprecated in NX8.5.0.

Obtion the exression using Motion::PMDCMotorBuilder::VoltageConstantExpression to query or edit it.

Created in NX6.0.0.

License requirements : nx_motion_motor ("NX Motion Motor")

NXOpen::Expression* NXOpen::Motion::PMDCMotorBuilder::VoltageConstantExpression ( )

Returns the Voltage Constant Expression
Created in NX8.5.0.

License requirements : nx_motion_motor ("NX Motion Motor")

The documentation for this class was generated from the following file:

Motion_PMDCMotorBuilder.hxx
