This the builder class to create or edit an Interference object. More...

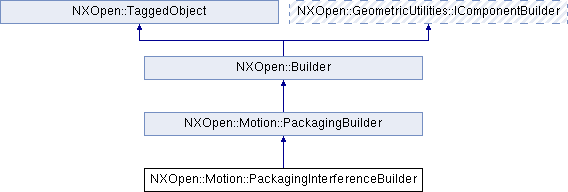

Inheritance diagram for NXOpen::Motion::PackagingInterferenceBuilder:

Public Types
enum	Action { ActionHighlight, ActionCreateSolids, ActionShowIntersectionCurve }
	Interference action type. More...

enum	Frame { FrameAbsolute, FrameFirstSet, FrameSecondSet, FrameBothSets, FrameSelected }
	Interference solid reference frame type. More...

enum	Mode { ModeFaceted, ModePreciseSolid }
	Interference calculation mode type. More...

Public Member Functions
NXOpen::Motion::PackagingInterferenceBuilder::Action	ActionType ()
	Returns the Motion::PackagingInterference action type defined at Motion::PackagingInterferenceBuilder::Action Created in NX4.0.0.

double	Clearance ()
	Returns the Motion::PackagingInterference clearance value

NXOpen::Expression *	ClearanceExpression ()
	Returns the clearance expression value Created in NX8.5.0.

NXOpen::Motion::PackagingInterferenceBuilder::Frame	FrameType ()
	Returns the Motion::PackagingInterference frame type defined at Motion::PackagingInterferenceBuilder::Frame Created in NX4.0.0.

std::vector < NXOpen::DisplayableObject * >	GetList2 ()
	Gets the geometry list 2 of Motion::PackagingInterference object.

std::vector < NXOpen::DisplayableObject * >	GetRelativeLinks ()
	Returns Motion::PackagingInterference user selected relative links.

NXOpen::Motion::PackagingInterferenceBuilder::Mode	ModeType ()
	Returns the Motion::PackagingInterference mode type defined at Motion::PackagingInterferenceBuilder::Mode Created in NX4.0.0.

void	SetActionType (NXOpen::Motion::PackagingInterferenceBuilder::Action aType)
	Sets the Motion::PackagingInterference action type defined at Motion::PackagingInterferenceBuilder::Action Created in NX4.0.0.

void	SetClearance (double clearance)
	Sets the Motion::PackagingInterference clearance value

void	SetFrameType (NXOpen::Motion::PackagingInterferenceBuilder::Frame fType)
	Sets the Motion::PackagingInterference frame type defined at Motion::PackagingInterferenceBuilder::Frame Created in NX4.0.0.

void	SetList2 (const std::vector< NXOpen::DisplayableObject * > &list2)
	Sets the geometry list 2 of Motion::PackagingInterference object.

void	SetModeType (NXOpen::Motion::PackagingInterferenceBuilder::Mode mType)
	Sets the Motion::PackagingInterference mode type defined at Motion::PackagingInterferenceBuilder::Mode Created in NX4.0.0.

void	SetRelativeLinks (const std::vector< NXOpen::DisplayableObject * > &links)
	Sets Motion::PackagingInterference user selected relative links.

void	SetStopOnEvent (bool stopOnEvent)
	Sets the Stop_On_Event flag of Motion::PackagingInterference object Created in NX4.0.0.

bool	StopOnEvent ()
	Returns the Stop_On_Event flag of Motion::PackagingInterference object Created in NX4.0.0.

Public Member Functions inherited from NXOpen::Motion::PackagingBuilder
bool	Enable ()
	Returns the enable flag of Packaging object.

std::vector < NXOpen::DisplayableObject * >	GetList1 ()
	Returns geometry list 1 of Packaging object.

NXString	Name ()
	Returns the name of Packaging object.

void	SetEnable (bool enable)
	Sets the enable flag of Packaging object.

void	SetList1 (const std::vector< NXOpen::DisplayableObject * > &list1)
	Sets geometry list 1.

void	SetName (const NXString &name)
	Sets the name of Packaging object.

void	SetName (const char *name)
	Sets the name of Packaging object.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This the builder class to create or edit an Interference object.

To create a new instance of this class, use Motion::PackagingCollection::CreateInterferenceBuilder

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::Motion::PackagingInterferenceBuilder::Action

Interference action type.

Enumerator:

ActionHighlight	Highlight interfering bodies.
ActionCreateSolids	Create solids of interference volumes.
ActionShowIntersectionCurve	Show intersection curve of interference volumes.

enum NXOpen::Motion::PackagingInterferenceBuilder::Frame

Interference solid reference frame type.

Only used for action type of NXOpen::Motion::PackagingInterferenceBuilder::ActionCreateSolids .

Enumerator:

FrameAbsolute	Interference solids positioned in absolute coordinate system.
FrameFirstSet	Interference solids positioned relative to interfering links in first set.
FrameSecondSet	Interference solids positioned relative to interfering links in second set.
FrameBothSets	Interference solids positioned relative to interfering links in both sets.
FrameSelected	Interference solids positioned relative to user selected links.

enum NXOpen::Motion::PackagingInterferenceBuilder::Mode

Interference calculation mode type.

Enumerator:

ModeFaceted

Interference calculated by Faceted method.

Faceted is only allowed for action type of NXOpen::Motion::PackagingInterferenceBuilder::ActionCreateSolids .

ModePreciseSolid

Interference calculated by Precise Solid method.

Member Function Documentation

NXOpen::Motion::PackagingInterferenceBuilder::Action NXOpen::Motion::PackagingInterferenceBuilder::ActionType ( )

Returns the Motion::PackagingInterference action type defined at Motion::PackagingInterferenceBuilder::Action
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

double NXOpen::Motion::PackagingInterferenceBuilder::Clearance ( )

Returns the Motion::PackagingInterference clearance value

Deprecated:: Deprecated in NX8.5.0.

Obtion the exression using Motion::PackagingInterferenceBuilder::ClearanceExpression to query or edit it.

Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

NXOpen::Expression* NXOpen::Motion::PackagingInterferenceBuilder::ClearanceExpression ( )

Returns the clearance expression value
Created in NX8.5.0.

License requirements : mechanisms ("MECHANISMS")

NXOpen::Motion::PackagingInterferenceBuilder::Frame NXOpen::Motion::PackagingInterferenceBuilder::FrameType ( )

Returns the Motion::PackagingInterference frame type defined at Motion::PackagingInterferenceBuilder::Frame
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

std::vector<NXOpen::DisplayableObject *> NXOpen::Motion::PackagingInterferenceBuilder::GetList2 ( )

Gets the geometry list 2 of Motion::PackagingInterference object.

   Interference can have one or two lists defined.  If the user
   defines two lists, then interference checks will be done
   between each object in list 1 against each object in list 2.  @return

Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

std::vector<NXOpen::DisplayableObject *> NXOpen::Motion::PackagingInterferenceBuilder::GetRelativeLinks ( )

Returns Motion::PackagingInterference user selected relative links.

   Only available when frame type is @link  NXOpen::Motion::PackagingInterferenceBuilder::FrameSelected   NXOpen::Motion::PackagingInterferenceBuilder::FrameSelected @endlink .  @return

Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

NXOpen::Motion::PackagingInterferenceBuilder::Mode NXOpen::Motion::PackagingInterferenceBuilder::ModeType ( )

Returns the Motion::PackagingInterference mode type defined at Motion::PackagingInterferenceBuilder::Mode
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

void NXOpen::Motion::PackagingInterferenceBuilder::SetActionType ( NXOpen::Motion::PackagingInterferenceBuilder::Action aType )

Sets the Motion::PackagingInterference action type defined at Motion::PackagingInterferenceBuilder::Action
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

aType a type

void NXOpen::Motion::PackagingInterferenceBuilder::SetClearance ( double clearance )

Sets the Motion::PackagingInterference clearance value

Deprecated:: Deprecated in NX8.5.0.

Obtion the exression using Motion::PackagingInterferenceBuilder::ClearanceExpression to query or edit it.

Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

clearance clearance

void NXOpen::Motion::PackagingInterferenceBuilder::SetFrameType ( NXOpen::Motion::PackagingInterferenceBuilder::Frame fType )

Sets the Motion::PackagingInterference frame type defined at Motion::PackagingInterferenceBuilder::Frame
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

fType f type

void NXOpen::Motion::PackagingInterferenceBuilder::SetList2 ( const std::vector< NXOpen::DisplayableObject * > & list2 )

Sets the geometry list 2 of Motion::PackagingInterference object.

Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

list2 list2

void NXOpen::Motion::PackagingInterferenceBuilder::SetModeType ( NXOpen::Motion::PackagingInterferenceBuilder::Mode mType )

Sets the Motion::PackagingInterference mode type defined at Motion::PackagingInterferenceBuilder::Mode
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

mType m type

void NXOpen::Motion::PackagingInterferenceBuilder::SetRelativeLinks ( const std::vector< NXOpen::DisplayableObject * > & links )

Sets Motion::PackagingInterference user selected relative links.

   Only used when frame type is @link  NXOpen::Motion::PackagingInterferenceBuilder::FrameSelected   NXOpen::Motion::PackagingInterferenceBuilder::FrameSelected @endlink .

Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

links links

void NXOpen::Motion::PackagingInterferenceBuilder::SetStopOnEvent ( bool stopOnEvent )

Sets the Stop_On_Event flag of Motion::PackagingInterference object
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

stopOnEvent stop on event

bool NXOpen::Motion::PackagingInterferenceBuilder::StopOnEvent ( )

Returns the Stop_On_Event flag of Motion::PackagingInterference object
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

The documentation for this class was generated from the following file:

Motion_PackagingInterferenceBuilder.hxx
