NXOpen::Motion::Marker Class Reference

Represents the Motion Marker class. More...

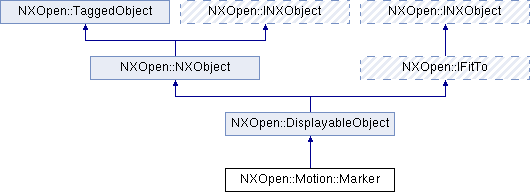

Inheritance diagram for NXOpen::Motion::Marker:

Public Types
enum	MarkerType { MarkerTypeUndefined, MarkerTypeInertia, MarkerTypeUserDefined, MarkerTypeCenterOfMass }
	Marker subtype. More...
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...
Public Types inherited from NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger,   AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference,   AttributeTypeAny = 100 }
	Specifies attribute type. More...
enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Additional Inherited Members
Public Member Functions inherited from NXOpen::DisplayableObject
void	Blank ()
	Blanks the object.
int	Color ()
	Returns the color of the object.
void	Highlight ()
	Highlights the object.
bool	IsBlanked ()
	Returns the blank status of this object.
int	Layer ()
	Returns the layer that the object is in.
NXOpen::DisplayableObject::ObjectFont	LineFont ()
	Returns the line font of the object.
NXOpen::DisplayableObject::ObjectWidth	LineWidth ()
	Returns the line width of the object.
NXOpen::Point3d	NameLocation ()
	Returns the location of the object's name.
void	RedisplayObject ()
	Redisplays the object in all views.
void	SetColor (int color)
	Sets the color of the object.
void	SetLayer (int layer)
	Sets the layer that the object is in.
void	SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
	Sets the line font of the object.
void	SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
	Sets the line width of the object.
void	SetNameLocation (const NXOpen::Point3d &location)
	Sets the location of the object's name.
void	Unblank ()
	Unblanks the object.
void	Unhighlight ()
	Unhighlights the object.

Detailed Description

Represents the Motion Marker class.

A Marker defines a point with orientations to request motion results at, and must be associated with a Motion Link.
To create or edit an instance of this class, use Motion::MarkerBuilder

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::Motion::Marker::MarkerType

Marker subtype.

Enumerator:

MarkerTypeUndefined	undefined
MarkerTypeInertia	Defines the center of inertia for a link. It will be automatically created for a link.
MarkerTypeUserDefined	User created marker. It can be attached to any motion object.
MarkerTypeCenterOfMass	Defines the center of mass for a link. It will be automatically created for a link.

---

The documentation for this class was generated from the following file:

• Motion_Marker.hxx
