Represents the Motion Link class. More...

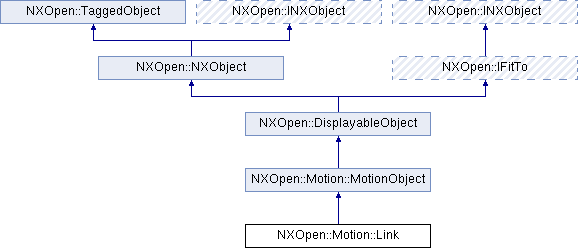

Inheritance diagram for NXOpen::Motion::Link:
Additional Inherited Members | |
 Public Types inherited from NXOpen::Motion::MotionObject | |
| enum | GroupType { GroupTypeNone, GroupTypeImport } |
| The group type attribute is used for import subassembly functionality. More... | |
| Public Member Functions inherited from NXOpen::Motion::MotionObject | |
| double | DisplayScale () |
| Returns the display scale factor Created in NX5.0.0. | |
| NXString | GroupName () |
| Returns the group name of motion object Created in NX5.0.0. | |
| NXOpen::Motion::MotionObject::GroupType | GroupTypeOption () |
| Returns the group type of motion object Created in NX5.0.0. | |
| void | SetDisplayScale (double displayScale) |
| Sets the display scale factor Created in NX5.0.0. | |
| void | SetGroupName (const NXString &groupName) |
| Sets the group name of motion object Created in NX5.0.0. | |
| void | SetGroupName (const char *groupName) |
| Sets the group name of motion object Created in NX5.0.0. | |
| void | SetGroupTypeOption (NXOpen::Motion::MotionObject::GroupType groupType) |
| Sets the group type of motion object Created in NX5.0.0. | |
Detailed Description
Represents the Motion Link class.
A Link is used to define each component or body involved in a mechanism model.
To create or edit an instance of this class, use Motion::LinkBuilder
Created in NX4.0.0.
The documentation for this class was generated from the following file:
- Motion_Link.hxx
