NXOpen::Motion::CurveContactRecurdyn Class Reference

Represents a Motion::CurveContactRecurdyn
Created in NX5.0.0. More...

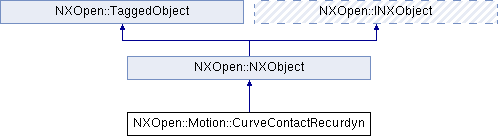

Inheritance diagram for NXOpen::Motion::CurveContactRecurdyn:

Public Member Functions
double	BufferRadiusFactor ()
	Returns the Buffer Radius Factor
NXOpen::Expression *	BufferRadiusFactorExpression ()
	Returns the Buffer Radius Factor expression Created in NX8.0.0.
double	CurveToleranceFactor ()
	Returns the Curve Tolerance Factor
NXOpen::Expression *	CurveToleranceFactorExpression ()
	Returns the Curve Tolerance Factor expression Created in NX8.0.0.
double	DynamicCoefficient ()
	Returns the dynamic coefficient
NXOpen::Expression *	DynamicCoefficientExpression ()
	Returns the dynamic coefficient expression Created in NX8.0.0.
double	FirstCurveMaximumPenetration ()
	Returns the first curve maximum penetration
NXOpen::Expression *	FirstCurveMaximumPenetrationExpression ()
	Returns the first curve maximum penetration expression Created in NX8.0.0.
double	ForceExponent ()
	Returns the force exponent
NXOpen::Expression *	ForceExponentExpression ()
	Returns the force exponent expression Created in NX8.0.0.
double	MaterialDamping ()
	Returns the material damping
NXOpen::Expression *	MaterialDampingExpression ()
	Returns the material damping expression Created in NX8.0.0.
double	MaximumStepSizeFactor ()
	Returns the Maximun Step Size Factor
NXOpen::Expression *	MaximumStepSizeFactorExpression ()
	Returns the Maximun Step Size Factor expression Created in NX8.0.0.
double	PenetrationDepth ()
	Returns the penetration depth
NXOpen::Expression *	PenetrationDepthExpression ()
	Returns the penetration depth expression Created in NX8.0.0.
double	SecondCurveMaximumPenetration ()
	Returns the second curve maximum penetration
NXOpen::Expression *	SecondCurveMaximumPenetrationExpression ()
	Returns the second curve maximum penetration expression Created in NX8.0.0.
void	SetBufferRadiusFactor (double bufferRadiusFactor)
	Sets the Buffer Radius Factor
void	SetCurveToleranceFactor (double curveToleranceFactor)
	Sets the Curve Tolerance Factor
void	SetDynamicCoefficient (double dynamicCoefficient)
	Sets the dynamic coefficient
void	SetFirstCurveMaximumPenetration (double firstCurveMaximumPenetration)
	Sets the first curve maximum penetration
void	SetForceExponent (double forceExponent)
	Sets the force exponent
void	SetMaterialDamping (double materialDamping)
	Sets the material damping
void	SetMaximumStepSizeFactor (double maximumStepSizeFactor)
	Sets the Maximun Step Size Factor
void	SetPenetrationDepth (double penetrationDepth)
	Sets the penetration depth
void	SetSecondCurveMaximumPenetration (double secondCurveMaximumPenetration)
	Sets the second curve maximum penetration
void	SetSlipVelocity (double slipVelocity)
	Sets the slip velocity
void	SetStaticCoefficient (double staticCoefficient)
	Sets the static coefficient
void	SetStiffness (double stiffness)
	Sets the stiffness
void	SetTransitionVelocity (double transitionVelocity)
	Sets the transition velocity
double	SlipVelocity ()
	Returns the slip velocity
NXOpen::Expression *	SlipVelocityExpression ()
	Returns the slip velocity expression Created in NX8.0.0.
double	StaticCoefficient ()
	Returns the static coefficient
NXOpen::Expression *	StaticCoefficientExpression ()
	Returns the static coefficient expression Created in NX8.0.0.
double	Stiffness ()
	Returns the stiffness
NXOpen::Expression *	StiffnessExpression ()
	Returns the stiffness expression Created in NX8.0.0.
double	TransitionVelocity ()
	Returns the transition velocity
NXOpen::Expression *	TransitionVelocityExpression ()
	Returns the transition velocity expression Created in NX8.0.0.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger,   AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference,   AttributeTypeAny = 100 }
	Specifies attribute type. More...
enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Detailed Description

Represents a Motion::CurveContactRecurdyn
Created in NX5.0.0.

Member Function Documentation

double NXOpen::Motion::CurveContactRecurdyn::BufferRadiusFactor

(

)

Returns the Buffer Radius Factor

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::BufferRadiusFactorExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::CurveContactRecurdyn::BufferRadiusFactorExpression

(

)

Returns the Buffer Radius Factor expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::CurveContactRecurdyn::CurveToleranceFactor

(

)

Returns the Curve Tolerance Factor

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::CurveToleranceFactorExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::CurveContactRecurdyn::CurveToleranceFactorExpression

(

)

Returns the Curve Tolerance Factor expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::CurveContactRecurdyn::DynamicCoefficient

(

)

Returns the dynamic coefficient

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::DynamicCoefficientExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::CurveContactRecurdyn::DynamicCoefficientExpression

(

)

Returns the dynamic coefficient expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::CurveContactRecurdyn::FirstCurveMaximumPenetration

(

)

Returns the first curve maximum penetration

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::FirstCurveMaximumPenetrationExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::CurveContactRecurdyn::FirstCurveMaximumPenetrationExpression

(

)

Returns the first curve maximum penetration expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::CurveContactRecurdyn::ForceExponent

(

)

Returns the force exponent

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::ForceExponentExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::CurveContactRecurdyn::ForceExponentExpression

(

)

Returns the force exponent expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::CurveContactRecurdyn::MaterialDamping

(

)

Returns the material damping

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::MaterialDampingExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::CurveContactRecurdyn::MaterialDampingExpression

(

)

Returns the material damping expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::CurveContactRecurdyn::MaximumStepSizeFactor

(

)

Returns the Maximun Step Size Factor

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::MaximumStepSizeFactorExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::CurveContactRecurdyn::MaximumStepSizeFactorExpression

(

)

Returns the Maximun Step Size Factor expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::CurveContactRecurdyn::PenetrationDepth

(

)

Returns the penetration depth

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::PenetrationDepthExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::CurveContactRecurdyn::PenetrationDepthExpression

(

)

Returns the penetration depth expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::CurveContactRecurdyn::SecondCurveMaximumPenetration

(

)

Returns the second curve maximum penetration

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::SecondCurveMaximumPenetrationExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::CurveContactRecurdyn::SecondCurveMaximumPenetrationExpression

(

)

Returns the second curve maximum penetration expression
Created in NX8.0.0.

License requirements : None

void NXOpen::Motion::CurveContactRecurdyn::SetBufferRadiusFactor

(

double

bufferRadiusFactor

)

Sets the Buffer Radius Factor

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::BufferRadiusFactorExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

bufferRadiusFactor

buffer radius factor

void NXOpen::Motion::CurveContactRecurdyn::SetCurveToleranceFactor

(

double

curveToleranceFactor

)

Sets the Curve Tolerance Factor

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::CurveToleranceFactorExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

curveToleranceFactor

curve tolerance factor

void NXOpen::Motion::CurveContactRecurdyn::SetDynamicCoefficient

(

double

dynamicCoefficient

)

Sets the dynamic coefficient

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::DynamicCoefficientExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

dynamicCoefficient

dynamic coefficient

void NXOpen::Motion::CurveContactRecurdyn::SetFirstCurveMaximumPenetration

(

double

firstCurveMaximumPenetration

)

Sets the first curve maximum penetration

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::FirstCurveMaximumPenetrationExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

firstCurveMaximumPenetration

first curve maximum penetration

void NXOpen::Motion::CurveContactRecurdyn::SetForceExponent

(

double

forceExponent

)

Sets the force exponent

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::ForceExponentExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

forceExponent

force exponent

void NXOpen::Motion::CurveContactRecurdyn::SetMaterialDamping

(

double

materialDamping

)

Sets the material damping

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::MaterialDampingExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

materialDamping

material damping

void NXOpen::Motion::CurveContactRecurdyn::SetMaximumStepSizeFactor

(

double

maximumStepSizeFactor

)

Sets the Maximun Step Size Factor

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::MaximumStepSizeFactorExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

maximumStepSizeFactor

maximum step size factor

void NXOpen::Motion::CurveContactRecurdyn::SetPenetrationDepth

(

double

penetrationDepth

)

Sets the penetration depth

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::PenetrationDepthExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

penetrationDepth

penetration depth

void NXOpen::Motion::CurveContactRecurdyn::SetSecondCurveMaximumPenetration

(

double

secondCurveMaximumPenetration

)

Sets the second curve maximum penetration

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::SecondCurveMaximumPenetrationExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

secondCurveMaximumPenetration

second curve maximum penetration

void NXOpen::Motion::CurveContactRecurdyn::SetSlipVelocity

(

double

slipVelocity

)

Sets the slip velocity

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::SlipVelocityExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

slipVelocity

slip velocity

void NXOpen::Motion::CurveContactRecurdyn::SetStaticCoefficient

(

double

staticCoefficient

)

Sets the static coefficient

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::StaticCoefficientExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

staticCoefficient

static coefficient

void NXOpen::Motion::CurveContactRecurdyn::SetStiffness

(

double

stiffness

)

Sets the stiffness

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::StiffnessExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

stiffness

stiffness

void NXOpen::Motion::CurveContactRecurdyn::SetTransitionVelocity

(

double

transitionVelocity

)

Sets the transition velocity

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::TransitionVelocityExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

transitionVelocity

transition velocity

double NXOpen::Motion::CurveContactRecurdyn::SlipVelocity

(

)

Returns the slip velocity

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::SlipVelocityExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::CurveContactRecurdyn::SlipVelocityExpression

(

)

Returns the slip velocity expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::CurveContactRecurdyn::StaticCoefficient

(

)

Returns the static coefficient

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::StaticCoefficientExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::CurveContactRecurdyn::StaticCoefficientExpression

(

)

Returns the static coefficient expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::CurveContactRecurdyn::Stiffness

(

)

Returns the stiffness

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::StiffnessExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::CurveContactRecurdyn::StiffnessExpression

(

)

Returns the stiffness expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::CurveContactRecurdyn::TransitionVelocity

(

)

Returns the transition velocity

Deprecated:

Deprecated in NX8.0.0.

Obtain the expression using Motion::CurveContactRecurdyn::TransitionVelocityExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::CurveContactRecurdyn::TransitionVelocityExpression

(

)

Returns the transition velocity expression
Created in NX8.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Motion_CurveContactRecurdyn.hxx
