Represents a Motion::CouplerBuilder
This is an abstract class, and cannot be created. More...

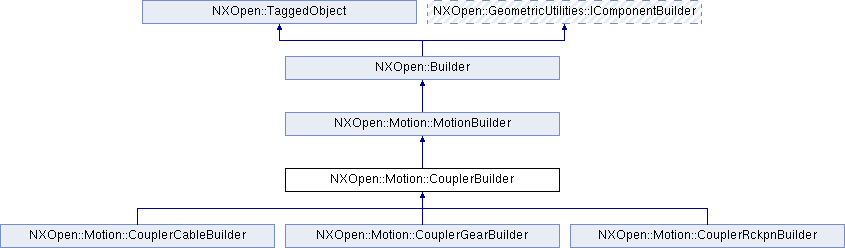

Inheritance diagram for NXOpen::Motion::CouplerBuilder:

Public Member Functions
NXOpen::Point *	ContactPoint ()
	Returns the contact point Created in NX6.0.0.

NXOpen::Motion::SelectJoint *	FirstJoint ()
	Returns the first joint Created in NX6.0.0.

NXString	Name ()
	Returns the name Created in NX6.0.0.

double	Ratio ()
	Returns the ratio

NXOpen::Expression *	RatioExpression ()
	Returns the ratio expression Created in NX8.5.0.

NXOpen::Motion::SelectJoint *	SecondJoint ()
	Returns the second joint Created in NX6.0.0.

void	SetContactPoint (NXOpen::Point *contactPt)
	Sets the contact point Created in NX6.0.0.

void	SetName (const NXString &name)
	Sets the name Created in NX6.0.0.

void	SetName (const char *name)
	Sets the name Created in NX6.0.0.

void	SetRatio (double ratio)
	Sets the ratio

Public Member Functions inherited from NXOpen::Motion::MotionBuilder
double	DisplayScale ()
	Returns the icon display scale Created in NX5.0.0.

NXString	GroupName ()
	Returns the group name Created in NX5.0.0.

NXOpen::Motion::MotionObject::GroupType	GroupType ()
	Returns the group type Created in NX5.0.0.

void	SetDisplayScale (double displayScale)
	Sets the icon display scale Created in NX5.0.0.

void	SetGroupName (const NXString &groupName)
	Sets the group name Created in NX5.0.0.

void	SetGroupName (const char *groupName)
	Sets the group name Created in NX5.0.0.

void	SetGroupType (NXOpen::Motion::MotionObject::GroupType groupType)
	Sets the group type Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Motion::CouplerBuilder
This is an abstract class, and cannot be created.

Created in NX6.0.0.

Member Function Documentation

NXOpen::Point* NXOpen::Motion::CouplerBuilder::ContactPoint ( )

Returns the contact point
Created in NX6.0.0.

License requirements : None

NXOpen::Motion::SelectJoint* NXOpen::Motion::CouplerBuilder::FirstJoint ( )

Returns the first joint
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Motion::CouplerBuilder::Name ( )

Returns the name
Created in NX6.0.0.

License requirements : None

double NXOpen::Motion::CouplerBuilder::Ratio ( )

Returns the ratio

Deprecated:: Deprecated in NX8.5.0.

Obtion the exression using Motion::CouplerBuilder::RatioExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::CouplerBuilder::RatioExpression ( )

Returns the ratio expression
Created in NX8.5.0.

License requirements : None

NXOpen::Motion::SelectJoint* NXOpen::Motion::CouplerBuilder::SecondJoint ( )

Returns the second joint
Created in NX6.0.0.

License requirements : None

void NXOpen::Motion::CouplerBuilder::SetContactPoint ( NXOpen::Point * contactPt )

Sets the contact point
Created in NX6.0.0.

License requirements : None

Parameters

contactPt contact pt

void NXOpen::Motion::CouplerBuilder::SetName ( const NXString & name )

Sets the name
Created in NX6.0.0.

License requirements : None

Parameters

name name

void NXOpen::Motion::CouplerBuilder::SetName ( const char * name )

Sets the name
Created in NX6.0.0.

License requirements : None

Parameters

name name

void NXOpen::Motion::CouplerBuilder::SetRatio ( double ratio )

Sets the ratio

Deprecated:: Deprecated in NX8.5.0.

Obtion the exression using Motion::CouplerBuilder::RatioExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

Parameters

ratio ratio

The documentation for this class was generated from the following file:

Motion_CouplerBuilder.hxx
