Represents a Motion::BodyContactRecurdyn
Created in NX5.0.0. More...

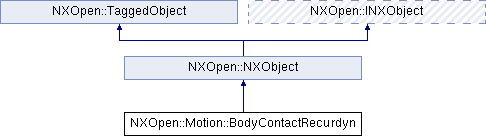

Inheritance diagram for NXOpen::Motion::BodyContactRecurdyn:

Public Types
enum	ContactType { ContactTypePatch, ContactTypeSurface, ContactTypeSolid }
	the enum for contact type option of 3D contact More...

enum	CoulombFriction { CoulombFrictionOff, CoulombFrictionOn }
	the enum for friction option of 3D contact More...

enum	ForceModel { ForceModelImpact, ForceModelPoisson }
	the enum for forec model of 3D contact More...

enum	SurfaceType { SurfaceTypeFaceted, SurfaceTypeFitted }
	the enum for surface type option of 3D contact More...

Public Types inherited from NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 }
	Specifies attribute type. More...

enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Public Member Functions
int	AutoGlobalMaxPenetrationFlag ()
	Returns the auto global maximum penetration flag Created in NX7.5.0.

int	AutoLocalMaxPenetrationFlag ()
	Returns the auto local maximum penetration flag Created in NX7.5.0.

double	BufferRadiusFactor ()
	Returns the Buffer Radius Factor

NXOpen::Expression *	BufferRadiusFactorExpression ()
	Returns the Buffer Radius Factor expression Created in NX8.0.0.

NXOpen::Motion::BodyContactRecurdyn::ContactType	ContactTypeOption ()
	Returns the contact type option Created in NX5.0.0.

NXOpen::Motion::BodyContactRecurdyn::CoulombFriction	CoulombFrictionOption ()
	Returns the coulomb friction option Created in NX5.0.0.

double	DynamicCoefficient ()
	Returns the dynamic coefficient

NXOpen::Expression *	DynamicCoefficientExpression ()
	Returns the dynamic coefficient expression Created in NX8.0.0.

double	FirstGeometryBoundingBufferLength ()
	Returns the bounding Buffer Length

NXOpen::Expression *	FirstGeometryBoundingBufferLengthExpression ()
	Returns the bounding Buffer Length expression Created in NX8.0.0.

double	FirstGeometryMaxFacetSizeFactor ()
	Returns the max Facet Size Factor

NXOpen::Expression *	FirstGeometryMaxFacetSizeFactorExpression ()
	Returns the max Facet Size Factor expression Created in NX8.0.0.

bool	FirstGeometryMaxFacetSizeFactorFlag ()
	Returns the max Facet Size Factor Flag Created in NX6.0.0.

double	FirstGeometryMaximumPenetration ()
	Returns the Plane Maximum Penetration of the first geometry

NXOpen::Expression *	FirstGeometryMaximumPenetrationExpression ()
	Returns the Plane Maximum Penetration of the first geometry expresion Created in NX8.0.0.

double	FirstGeometryPlaneToleranceFactor ()
	Returns the Plane Tolerance Factor of the first geometry

NXOpen::Expression *	FirstGeometryPlaneToleranceFactorExpression ()
	Returns the Plane Tolerance Factor of the first geometry expresion Created in NX8.0.0.

double	FirstGeometryPlaneToleranceFactorSolidContact ()
	Returns the Plane Tolerance Factor of the first geometry for solid contact

NXOpen::Expression *	FirstGeometryPlaneToleranceFactorSolidContactExpression ()
	Returns the Plane Tolerance Factor of the first geometry for solid contact expression Created in NX8.0.0.

double	ForceExponent ()
	Returns the force exponent

NXOpen::Expression *	ForceExponentExpression ()
	Returns the force exponent expression Created in NX8.0.0.

NXOpen::Motion::BodyContactRecurdyn::ForceModel	ForceModelType ()
	Returns the force model type Created in NX5.0.0.

double	FrictionVelocity ()
	Returns the friction velocity

NXOpen::Expression *	FrictionVelocityExpression ()
	Returns the friction velocity expression Created in NX8.0.0.

double	GlobalMaxPenetration ()
	Returns the global Max.

NXOpen::Expression *	GlobalMaxPenetrationExpression ()
	Returns the global Max.

double	LocalMaxPenetration ()
	Returns the local Max.

NXOpen::Expression *	LocalMaxPenetrationExpression ()
	Returns the local Max.

double	MaterialDamping ()
	Returns the material damping

NXOpen::Expression *	MaterialDampingExpression ()
	Returns the material damping expression Created in NX8.0.0.

double	MaximumStepSizeFactor ()
	Returns the Maximun Step Size Factor

NXOpen::Expression *	MaximumStepSizeFactorExpression ()
	Returns the Maximun Step Size Factor expression Created in NX8.0.0.

double	PenetrationDepth ()
	Returns the penetration depth

NXOpen::Expression *	PenetrationDepthExpression ()
	Returns the penetration depth expression Created in NX8.0.0.

double	ReboundDampingFactor ()
	Returns the rebound Damping Factor

NXOpen::Expression *	ReboundDampingFactorExpression ()
	Returns the rebound Damping Factor expression Created in NX8.0.0.

bool	ReboundDampingFactorFlag ()
	Returns the rebound Damping Factor Flag Created in NX6.0.0.

double	SecondGeometryBoundingBufferLength ()
	Returns the bounding Buffer Length

NXOpen::Expression *	SecondGeometryBoundingBufferLengthExpression ()
	Returns the bounding Buffer Length expression Created in NX8.0.0.

double	SecondGeometryMaxFacetSizeFactor ()
	Returns the max Facet Size Factor

NXOpen::Expression *	SecondGeometryMaxFacetSizeFactorExpression ()
	Returns the max Facet Size Factor expression Created in NX8.0.0.

bool	SecondGeometryMaxFacetSizeFactorFlag ()
	Returns the max Facet Size Factor Flag Created in NX6.0.0.

double	SecondGeometryMaximumPenetration ()
	Returns the Plane Maximum Penetration of the second geometry

NXOpen::Expression *	SecondGeometryMaximumPenetrationExpression ()
	Returns the Plane Maximum Penetration of the second geometry expression Created in NX8.0.0.

double	SecondGeometryPlaneToleranceFactor ()
	Returns the Plane Tolerance Factor of the second geometry

NXOpen::Expression *	SecondGeometryPlaneToleranceFactorExpression ()
	Returns the Plane Tolerance Factor of the second geometry expression Created in NX8.0.0.

double	SecondGeometryPlaneToleranceFactorSolidContact ()
	Returns the Plane Tolerance Factor of the second geometry for solid contact

NXOpen::Expression *	SecondGeometryPlaneToleranceFactorSolidContactExpression ()
	Returns the Plane Tolerance Factor of the second geometry for solid contact expression Created in NX8.0.0.

void	SetAutoGlobalMaxPenetrationFlag (int autoGlobalMaxPenetrationFlag)
	Sets the auto global maximum penetration flag Created in NX7.5.0.

void	SetAutoLocalMaxPenetrationFlag (int autoLocalMaxPenetrationFlag)
	Sets the auto local maximum penetration flag Created in NX7.5.0.

void	SetBufferRadiusFactor (double bufferRadiusFactor)
	Sets the Buffer Radius Factor

void	SetContactTypeOption (NXOpen::Motion::BodyContactRecurdyn::ContactType contactType)
	Sets the contact type option Created in NX5.0.0.

void	SetCoulombFrictionOption (NXOpen::Motion::BodyContactRecurdyn::CoulombFriction coulombFriction)
	Sets the coulomb friction option Created in NX5.0.0.

void	SetDynamicCoefficient (double dynamicCoefficient)
	Sets the dynamic coefficient

void	SetFirstGeometryBoundingBufferLength (double boundingBufferLength)
	Sets the bounding Buffer Length

void	SetFirstGeometryMaxFacetSizeFactor (double maxFacetSizeFactor)
	Sets the max Facet Size Factor

void	SetFirstGeometryMaxFacetSizeFactorFlag (bool maxFacetSizeFactorFlag)
	Sets the max Facet Size Factor Flag Created in NX6.0.0.

void	SetFirstGeometryMaximumPenetration (double firstGeometryMaximumPenetration)
	Sets the Plane Maximum Penetration of the first geometry

void	SetFirstGeometryPlaneToleranceFactor (double firstGeometryPlaneToleranceFactor)
	Sets the Plane Tolerance Factor of the first geometry

void	SetFirstGeometryPlaneToleranceFactorSolidContact (double firstGeometryPlaneToleranceFactorSolidContact)
	Sets the Plane Tolerance Factor of the first geometry for solid contact

void	SetForceExponent (double forceExponent)
	Sets the force exponent

void	SetForceModelType (NXOpen::Motion::BodyContactRecurdyn::ForceModel forceModel)
	Sets the force model type Created in NX5.0.0.

void	SetFrictionVelocity (double frictionVelocity)
	Sets the friction velocity

void	SetGlobalMaxPenetration (double globalMaxPenetration)
	Sets the global Max.

void	SetLocalMaxPenetration (double localMaxPenetration)
	Sets the local Max.

void	SetMaterialDamping (double materialDamping)
	Sets the material damping

void	SetMaximumStepSizeFactor (double maximumStepSizeFactor)
	Sets the Maximun Step Size Factor

void	SetPenetrationDepth (double penetrationDepth)
	Sets the penetration depth

void	SetReboundDampingFactor (double reboundDampingFactor)
	Sets the rebound Damping Factor

void	SetReboundDampingFactorFlag (bool reboundDampingFactorFlag)
	Sets the rebound Damping Factor Flag Created in NX6.0.0.

void	SetSecondGeometryBoundingBufferLength (double boundingBufferLength)
	Sets the bounding Buffer Length

void	SetSecondGeometryMaxFacetSizeFactor (double maxFacetSizeFactor)
	Sets the max Facet Size Factor

void	SetSecondGeometryMaxFacetSizeFactorFlag (bool maxFacetSizeFactorFlag)
	Sets the max Facet Size Factor Flag Created in NX6.0.0.

void	SetSecondGeometryMaximumPenetration (double secondGeometryMaximumPenetration)
	Sets the Plane Maximum Penetration of the second geometry

void	SetSecondGeometryPlaneToleranceFactor (double secondGeometryPlaneToleranceFactor)
	Sets the Plane Tolerance Factor of the second geometry

void	SetSecondGeometryPlaneToleranceFactorSolidContact (double secondGeometryPlaneToleranceFactorSolidContact)
	Sets the Plane Tolerance Factor of the second geometry for solid contact

void	SetStaticCoefficient (double staticCoefficient)
	Sets the coulomb coefficient

void	SetStictionVelocity (double stictionVelocity)
	Sets the stiction velocity

void	SetStiffness (double stiffness)
	Sets the stiffness

void	SetSurfaceTypeOption (NXOpen::Motion::BodyContactRecurdyn::SurfaceType surfaceType)
	Sets the surface type option Created in NX5.0.0.

double	StaticCoefficient ()
	Returns the coulomb coefficient

NXOpen::Expression *	StaticCoefficientExpression ()
	Returns the coulomb coefficient expression Created in NX8.0.0.

double	StictionVelocity ()
	Returns the stiction velocity

NXOpen::Expression *	StictionVelocityExpression ()
	Returns the stiction velocity expression Created in NX8.0.0.

double	Stiffness ()
	Returns the stiffness

NXOpen::Expression *	StiffnessExpression ()
	Returns the stiffness expression Created in NX8.0.0.

NXOpen::Motion::BodyContactRecurdyn::SurfaceType	SurfaceTypeOption ()
	Returns the surface type option Created in NX5.0.0.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents a Motion::BodyContactRecurdyn
Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::Motion::BodyContactRecurdyn::ContactType

the enum for contact type option of 3D contact

Enumerator:

ContactTypePatch	patch
ContactTypeSurface	surface
ContactTypeSolid	solid

enum NXOpen::Motion::BodyContactRecurdyn::CoulombFriction

the enum for friction option of 3D contact

Enumerator:

CoulombFrictionOff	off
CoulombFrictionOn	on

enum NXOpen::Motion::BodyContactRecurdyn::ForceModel

the enum for forec model of 3D contact

Enumerator:

ForceModelImpact	impact
ForceModelPoisson	poisson

enum NXOpen::Motion::BodyContactRecurdyn::SurfaceType

the enum for surface type option of 3D contact

Enumerator:

SurfaceTypeFaceted	faceted
SurfaceTypeFitted	fitted

Member Function Documentation

int NXOpen::Motion::BodyContactRecurdyn::AutoGlobalMaxPenetrationFlag ( )

Returns the auto global maximum penetration flag
Created in NX7.5.0.

License requirements : None

int NXOpen::Motion::BodyContactRecurdyn::AutoLocalMaxPenetrationFlag ( )

Returns the auto local maximum penetration flag
Created in NX7.5.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::BufferRadiusFactor ( )

Returns the Buffer Radius Factor

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::BufferRadiusFactorExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::BufferRadiusFactorExpression ( )

Returns the Buffer Radius Factor expression
Created in NX8.0.0.

License requirements : None

NXOpen::Motion::BodyContactRecurdyn::ContactType NXOpen::Motion::BodyContactRecurdyn::ContactTypeOption ( )

Returns the contact type option
Created in NX5.0.0.

License requirements : None

NXOpen::Motion::BodyContactRecurdyn::CoulombFriction NXOpen::Motion::BodyContactRecurdyn::CoulombFrictionOption ( )

Returns the coulomb friction option
Created in NX5.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::DynamicCoefficient ( )

Returns the dynamic coefficient

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::DynamicCoefficientExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::DynamicCoefficientExpression ( )

Returns the dynamic coefficient expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::FirstGeometryBoundingBufferLength ( )

Returns the bounding Buffer Length

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::FirstGeometryBoundingBufferLengthExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::FirstGeometryBoundingBufferLengthExpression ( )

Returns the bounding Buffer Length expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::FirstGeometryMaxFacetSizeFactor ( )

Returns the max Facet Size Factor

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::FirstGeometryMaxFacetSizeFactorExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::FirstGeometryMaxFacetSizeFactorExpression ( )

Returns the max Facet Size Factor expression
Created in NX8.0.0.

License requirements : None

bool NXOpen::Motion::BodyContactRecurdyn::FirstGeometryMaxFacetSizeFactorFlag ( )

Returns the max Facet Size Factor Flag
Created in NX6.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::FirstGeometryMaximumPenetration ( )

Returns the Plane Maximum Penetration of the first geometry

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::FirstGeometryMaximumPenetrationExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::FirstGeometryMaximumPenetrationExpression ( )

Returns the Plane Maximum Penetration of the first geometry expresion
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::FirstGeometryPlaneToleranceFactor ( )

Returns the Plane Tolerance Factor of the first geometry

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::FirstGeometryPlaneToleranceFactorExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::FirstGeometryPlaneToleranceFactorExpression ( )

Returns the Plane Tolerance Factor of the first geometry expresion
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::FirstGeometryPlaneToleranceFactorSolidContact ( )

Returns the Plane Tolerance Factor of the first geometry for solid contact

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::FirstGeometryPlaneToleranceFactorSolidContactExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::FirstGeometryPlaneToleranceFactorSolidContactExpression ( )

Returns the Plane Tolerance Factor of the first geometry for solid contact expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::ForceExponent ( )

Returns the force exponent

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::ForceExponentExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::ForceExponentExpression ( )

Returns the force exponent expression
Created in NX8.0.0.

License requirements : None

NXOpen::Motion::BodyContactRecurdyn::ForceModel NXOpen::Motion::BodyContactRecurdyn::ForceModelType ( )

Returns the force model type
Created in NX5.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::FrictionVelocity ( )

Returns the friction velocity

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::FrictionVelocityExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::FrictionVelocityExpression ( )

Returns the friction velocity expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::GlobalMaxPenetration ( )

Returns the global Max.

Penetration

Deprecated:: Deprecated in NX8.0.0. Obtain the expression using Motion::BodyContactRecurdyn::GlobalMaxPenetrationExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::GlobalMaxPenetrationExpression ( )

Returns the global Max.

Penetration expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::LocalMaxPenetration ( )

Returns the local Max.

Penetration

Deprecated:: Deprecated in NX8.0.0. Obtain the expression using Motion::BodyContactRecurdyn::LocalMaxPenetrationExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::LocalMaxPenetrationExpression ( )

Returns the local Max.

Penetration expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::MaterialDamping ( )

Returns the material damping

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::MaterialDampingExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::MaterialDampingExpression ( )

Returns the material damping expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::MaximumStepSizeFactor ( )

Returns the Maximun Step Size Factor

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::MaximumStepSizeFactorExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::MaximumStepSizeFactorExpression ( )

Returns the Maximun Step Size Factor expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::PenetrationDepth ( )

Returns the penetration depth

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::PenetrationDepthExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::PenetrationDepthExpression ( )

Returns the penetration depth expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::ReboundDampingFactor ( )

Returns the rebound Damping Factor

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::ReboundDampingFactorExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::ReboundDampingFactorExpression ( )

Returns the rebound Damping Factor expression
Created in NX8.0.0.

License requirements : None

bool NXOpen::Motion::BodyContactRecurdyn::ReboundDampingFactorFlag ( )

Returns the rebound Damping Factor Flag
Created in NX6.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::SecondGeometryBoundingBufferLength ( )

Returns the bounding Buffer Length

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::SecondGeometryBoundingBufferLengthExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::SecondGeometryBoundingBufferLengthExpression ( )

Returns the bounding Buffer Length expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::SecondGeometryMaxFacetSizeFactor ( )

Returns the max Facet Size Factor

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::SecondGeometryMaxFacetSizeFactorExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::SecondGeometryMaxFacetSizeFactorExpression ( )

Returns the max Facet Size Factor expression
Created in NX8.0.0.

License requirements : None

bool NXOpen::Motion::BodyContactRecurdyn::SecondGeometryMaxFacetSizeFactorFlag ( )

Returns the max Facet Size Factor Flag
Created in NX6.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::SecondGeometryMaximumPenetration ( )

Returns the Plane Maximum Penetration of the second geometry

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::SecondGeometryMaximumPenetration to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::SecondGeometryMaximumPenetrationExpression ( )

Returns the Plane Maximum Penetration of the second geometry expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::SecondGeometryPlaneToleranceFactor ( )

Returns the Plane Tolerance Factor of the second geometry

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::SecondGeometryPlaneToleranceFactorExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::SecondGeometryPlaneToleranceFactorExpression ( )

Returns the Plane Tolerance Factor of the second geometry expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::SecondGeometryPlaneToleranceFactorSolidContact ( )

Returns the Plane Tolerance Factor of the second geometry for solid contact

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::SecondGeometryPlaneToleranceFactorSolidContactExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::SecondGeometryPlaneToleranceFactorSolidContactExpression ( )

Returns the Plane Tolerance Factor of the second geometry for solid contact expression
Created in NX8.0.0.

License requirements : None

void NXOpen::Motion::BodyContactRecurdyn::SetAutoGlobalMaxPenetrationFlag ( int autoGlobalMaxPenetrationFlag )

Sets the auto global maximum penetration flag
Created in NX7.5.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

autoGlobalMaxPenetrationFlag auto global max penetration flag

void NXOpen::Motion::BodyContactRecurdyn::SetAutoLocalMaxPenetrationFlag ( int autoLocalMaxPenetrationFlag )

Sets the auto local maximum penetration flag
Created in NX7.5.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

autoLocalMaxPenetrationFlag auto local max penetration flag

void NXOpen::Motion::BodyContactRecurdyn::SetBufferRadiusFactor ( double bufferRadiusFactor )

Sets the Buffer Radius Factor

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::BufferRadiusFactorExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

bufferRadiusFactor buffer radius factor

void NXOpen::Motion::BodyContactRecurdyn::SetContactTypeOption ( NXOpen::Motion::BodyContactRecurdyn::ContactType contactType )

Sets the contact type option
Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

contactType contact type

void NXOpen::Motion::BodyContactRecurdyn::SetCoulombFrictionOption ( NXOpen::Motion::BodyContactRecurdyn::CoulombFriction coulombFriction )

Sets the coulomb friction option
Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

coulombFriction coulomb friction

void NXOpen::Motion::BodyContactRecurdyn::SetDynamicCoefficient ( double dynamicCoefficient )

Sets the dynamic coefficient

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::DynamicCoefficientExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

dynamicCoefficient dynamic coefficient

void NXOpen::Motion::BodyContactRecurdyn::SetFirstGeometryBoundingBufferLength ( double boundingBufferLength )

Sets the bounding Buffer Length

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::FirstGeometryBoundingBufferLengthExpression to query or edit it.

Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

boundingBufferLength bounding buffer length

void NXOpen::Motion::BodyContactRecurdyn::SetFirstGeometryMaxFacetSizeFactor ( double maxFacetSizeFactor )

Sets the max Facet Size Factor

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::FirstGeometryMaxFacetSizeFactorExpression to query or edit it.

Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

maxFacetSizeFactor max facet size factor

void NXOpen::Motion::BodyContactRecurdyn::SetFirstGeometryMaxFacetSizeFactorFlag ( bool maxFacetSizeFactorFlag )

Sets the max Facet Size Factor Flag
Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

maxFacetSizeFactorFlag max facet size factor flag

void NXOpen::Motion::BodyContactRecurdyn::SetFirstGeometryMaximumPenetration ( double firstGeometryMaximumPenetration )

Sets the Plane Maximum Penetration of the first geometry

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::FirstGeometryMaximumPenetrationExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

firstGeometryMaximumPenetration first geometry maximum penetration

void NXOpen::Motion::BodyContactRecurdyn::SetFirstGeometryPlaneToleranceFactor ( double firstGeometryPlaneToleranceFactor )

Sets the Plane Tolerance Factor of the first geometry

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::FirstGeometryPlaneToleranceFactorExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

firstGeometryPlaneToleranceFactor first geometry plane tolerance factor

void NXOpen::Motion::BodyContactRecurdyn::SetFirstGeometryPlaneToleranceFactorSolidContact ( double firstGeometryPlaneToleranceFactorSolidContact )

Sets the Plane Tolerance Factor of the first geometry for solid contact

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::FirstGeometryPlaneToleranceFactorSolidContactExpression to query or edit it.

Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

firstGeometryPlaneToleranceFactorSolidContact first geometry plane tolerance factor solid contact

void NXOpen::Motion::BodyContactRecurdyn::SetForceExponent ( double forceExponent )

Sets the force exponent

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::ForceExponentExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

forceExponent force exponent

void NXOpen::Motion::BodyContactRecurdyn::SetForceModelType ( NXOpen::Motion::BodyContactRecurdyn::ForceModel forceModel )

Sets the force model type
Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

forceModel force model

void NXOpen::Motion::BodyContactRecurdyn::SetFrictionVelocity ( double frictionVelocity )

Sets the friction velocity

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::FrictionVelocityExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

frictionVelocity friction velocity

void NXOpen::Motion::BodyContactRecurdyn::SetGlobalMaxPenetration ( double globalMaxPenetration )

Sets the global Max.

Penetration

Deprecated:: Deprecated in NX8.0.0. Obtain the expression using Motion::BodyContactRecurdyn::GlobalMaxPenetrationExpression to query or edit it.

Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

globalMaxPenetration global max penetration

void NXOpen::Motion::BodyContactRecurdyn::SetLocalMaxPenetration ( double localMaxPenetration )

Sets the local Max.

Penetration

Deprecated:: Deprecated in NX8.0.0. Obtain the expression using Motion::BodyContactRecurdyn::LocalMaxPenetrationExpression to query or edit it.

Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

localMaxPenetration local max penetration

void NXOpen::Motion::BodyContactRecurdyn::SetMaterialDamping ( double materialDamping )

Sets the material damping

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::MaterialDampingExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

materialDamping material damping

void NXOpen::Motion::BodyContactRecurdyn::SetMaximumStepSizeFactor ( double maximumStepSizeFactor )

Sets the Maximun Step Size Factor

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::MaximumStepSizeFactorExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

maximumStepSizeFactor maximum step size factor

void NXOpen::Motion::BodyContactRecurdyn::SetPenetrationDepth ( double penetrationDepth )

Sets the penetration depth

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::PenetrationDepthExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

penetrationDepth penetration depth

void NXOpen::Motion::BodyContactRecurdyn::SetReboundDampingFactor ( double reboundDampingFactor )

Sets the rebound Damping Factor

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::ReboundDampingFactorExpression to query or edit it.

Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

reboundDampingFactor rebound damping factor

void NXOpen::Motion::BodyContactRecurdyn::SetReboundDampingFactorFlag ( bool reboundDampingFactorFlag )

Sets the rebound Damping Factor Flag
Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

reboundDampingFactorFlag rebound damping factor flag

void NXOpen::Motion::BodyContactRecurdyn::SetSecondGeometryBoundingBufferLength ( double boundingBufferLength )

Sets the bounding Buffer Length

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::SecondGeometryBoundingBufferLengthExpression to query or edit it.

Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

boundingBufferLength bounding buffer length

void NXOpen::Motion::BodyContactRecurdyn::SetSecondGeometryMaxFacetSizeFactor ( double maxFacetSizeFactor )

Sets the max Facet Size Factor

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::SecondGeometryMaxFacetSizeFactorExpression to query or edit it.

Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

maxFacetSizeFactor max facet size factor

void NXOpen::Motion::BodyContactRecurdyn::SetSecondGeometryMaxFacetSizeFactorFlag ( bool maxFacetSizeFactorFlag )

Sets the max Facet Size Factor Flag
Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

maxFacetSizeFactorFlag max facet size factor flag

void NXOpen::Motion::BodyContactRecurdyn::SetSecondGeometryMaximumPenetration ( double secondGeometryMaximumPenetration )

Sets the Plane Maximum Penetration of the second geometry

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::SecondGeometryMaximumPenetration to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

secondGeometryMaximumPenetration second geometry maximum penetration

void NXOpen::Motion::BodyContactRecurdyn::SetSecondGeometryPlaneToleranceFactor ( double secondGeometryPlaneToleranceFactor )

Sets the Plane Tolerance Factor of the second geometry

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::SecondGeometryPlaneToleranceFactorExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

secondGeometryPlaneToleranceFactor second geometry plane tolerance factor

void NXOpen::Motion::BodyContactRecurdyn::SetSecondGeometryPlaneToleranceFactorSolidContact ( double secondGeometryPlaneToleranceFactorSolidContact )

Sets the Plane Tolerance Factor of the second geometry for solid contact

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::SecondGeometryPlaneToleranceFactorSolidContactExpression to query or edit it.

Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

secondGeometryPlaneToleranceFactorSolidContact second geometry plane tolerance factor solid contact

void NXOpen::Motion::BodyContactRecurdyn::SetStaticCoefficient ( double staticCoefficient )

Sets the coulomb coefficient

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::StaticCoefficientExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

staticCoefficient static coefficient

void NXOpen::Motion::BodyContactRecurdyn::SetStictionVelocity ( double stictionVelocity )

Sets the stiction velocity

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::StictionVelocityExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

stictionVelocity stiction velocity

void NXOpen::Motion::BodyContactRecurdyn::SetStiffness ( double stiffness )

Sets the stiffness

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::StiffnessExpression to query or edit it.

Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

stiffness stiffness

void NXOpen::Motion::BodyContactRecurdyn::SetSurfaceTypeOption ( NXOpen::Motion::BodyContactRecurdyn::SurfaceType surfaceType )

Sets the surface type option
Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

surfaceType surface type

double NXOpen::Motion::BodyContactRecurdyn::StaticCoefficient ( )

Returns the coulomb coefficient

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::StaticCoefficientExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::StaticCoefficientExpression ( )

Returns the coulomb coefficient expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::StictionVelocity ( )

Returns the stiction velocity

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::StictionVelocityExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::StictionVelocityExpression ( )

Returns the stiction velocity expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::BodyContactRecurdyn::Stiffness ( )

Returns the stiffness

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::BodyContactRecurdyn::StiffnessExpression to query or edit it.

Created in NX5.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::BodyContactRecurdyn::StiffnessExpression ( )

Returns the stiffness expression
Created in NX8.0.0.

License requirements : None

NXOpen::Motion::BodyContactRecurdyn::SurfaceType NXOpen::Motion::BodyContactRecurdyn::SurfaceTypeOption ( )

Returns the surface type option
Created in NX5.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Motion_BodyContactRecurdyn.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
