NXOpen::Mechatronics::TransportSurfaceBuilder Class Reference

Represents a Mechatronics::TransportSurfaceBuilder . More...

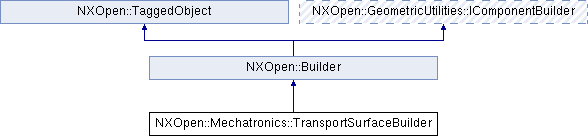

Inheritance diagram for NXOpen::Mechatronics::TransportSurfaceBuilder:

Public Member Functions
NXOpen::SelectFaceList *	Faces ()
	Returns the faces.
NXOpen::Mechatronics::CollisionMaterial *	Material ()
	Returns the material.
NXString	Name ()
	Returns the name.
NXOpen::Expression *	ParallelVelocity ()
	Returns the parallel velocity.
NXOpen::Expression *	PerpendicularVelocity ()
	Returns the perpendicular velocity.
void	SetFaces (const std::vector< NXOpen::NXObject * > &faces)
	Sets the faces.
void	SetMaterial (NXOpen::Mechatronics::CollisionMaterial *material)
	Sets the material.
void	SetName (const NXString &name)
	Sets the name.
void	SetName (const char *name)
	Sets the name.
void	SetVelocityVector (NXOpen::Direction *velocityVector)
	Sets the specify vector.
NXOpen::Direction *	VelocityVector ()
	Returns the specify vector.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::TransportSurfaceBuilder .

<br> To create a new instance of this class, use @link Mechatronics::TransportSurfaceCollection::CreateTransportSurfaceBuilder  Mechatronics::TransportSurfaceCollection::CreateTransportSurfaceBuilder @endlink  <br>

Created in NX7.5.1.

Member Function Documentation

NXOpen::SelectFaceList* NXOpen::Mechatronics::TransportSurfaceBuilder::Faces

(

)

Returns the faces.

This can be a Face .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Mechatronics::CollisionMaterial* NXOpen::Mechatronics::TransportSurfaceBuilder::Material

(

)

Returns the material.

This can be a CollisionMaterial .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXString NXOpen::Mechatronics::TransportSurfaceBuilder::Name

(

)

Returns the name.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::TransportSurfaceBuilder::ParallelVelocity

(

)

Returns the parallel velocity.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::TransportSurfaceBuilder::PerpendicularVelocity

(

)

Returns the perpendicular velocity.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::TransportSurfaceBuilder::SetFaces

(

const std::vector< NXOpen::NXObject * > &

faces

)

Sets the faces.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

faces

faces

void NXOpen::Mechatronics::TransportSurfaceBuilder::SetMaterial

(

NXOpen::Mechatronics::CollisionMaterial *

material

)

Sets the material.

This can be a CollisionMaterial .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

material

material

void NXOpen::Mechatronics::TransportSurfaceBuilder::SetName

(

const NXString &

name

)

Sets the name.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

name

name

void NXOpen::Mechatronics::TransportSurfaceBuilder::SetName

(

const char *

name

)

Sets the name.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

name

name

void NXOpen::Mechatronics::TransportSurfaceBuilder::SetVelocityVector

(

NXOpen::Direction *

velocityVector

)

Sets the specify vector.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

velocityVector

velocityvector

NXOpen::Direction* NXOpen::Mechatronics::TransportSurfaceBuilder::VelocityVector

(

)

Returns the specify vector.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

---

The documentation for this class was generated from the following file:

• Mechatronics_TransportSurfaceBuilder.hxx
