Represents a Mechatronics::SpeedControl builder. More...

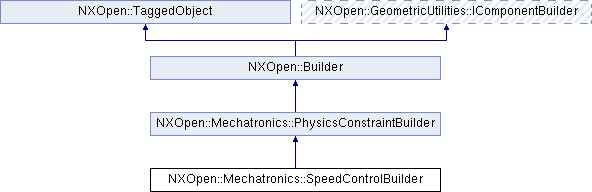

Inheritance diagram for NXOpen::Mechatronics::SpeedControlBuilder:

Public Types
enum	AxisJointType { AxisJointTypeAngular, AxisJointTypeLinear }
	the Axis Joint types. More...

Public Member Functions
NXOpen::Mechatronics::SelectPhysicsJoint *	AxisJoint ()
	Returns the joint select.

NXOpen::Mechatronics::SpeedControlBuilder::AxisJointType	AxisType ()
	Returns the axis joint type.

bool	EnableLimitForce ()
	Returns whether or not to enable the limit force.

NXOpen::Expression *	ForwardForce ()
	Returns the forward force that speed control can apply.

bool	LimitJerk ()
	Returns the limit jerk flag, which is used to control if the speed control includes jerk data.

NXOpen::Expression *	MaxAcceleration ()
	Returns the max acceleration, which is used to set the maximum acceleration for speed control.

NXOpen::Expression *	MaxJerk ()
	Returns the max jerk, which is used to set the maximum jerk for speed control.

NXOpen::Expression *	ReverseForce ()
	Returns the min force that speed control can apply.

void	SetAxisJoint (NXOpen::NXObject *axisJoint)
	Sets the joint.

void	SetAxisType (NXOpen::Mechatronics::SpeedControlBuilder::AxisJointType axisType)
	Sets the axis joint type.

void	SetEnableLimitForce (bool enable)
	Sets whether or not to enable the limit force.

void	SetLimitJerk (bool limitJerk)
	Sets the limit jerk flag, which is used to control if the speed control includes jerk data.

void	SetUseAcceleration (bool useAcceleration)
	Sets the use acceleration flag, which is used to control if the speed control includes acceleration data.

NXOpen::Expression *	Speed ()
	Returns the speed.

bool	UseAcceleration ()
	Returns the use acceleration flag, which is used to control if the speed control includes acceleration data.

Public Member Functions inherited from NXOpen::Mechatronics::PhysicsConstraintBuilder
NXString	Name ()
	Returns the name.

void	SetName (const NXString &name)
	Sets the name.

void	SetName (const char *name)
	Sets the name.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::SpeedControl builder.

To create a new instance of this class, use Mechatronics::SpeedControlCollection::CreateSpeedControlBuilder

Created in NX7.5.1.

Member Enumeration Documentation

enum NXOpen::Mechatronics::SpeedControlBuilder::AxisJointType

the Axis Joint types.

Enumerator:

AxisJointTypeAngular	Angular.
AxisJointTypeLinear	Linear.

Member Function Documentation

NXOpen::Mechatronics::SelectPhysicsJoint* NXOpen::Mechatronics::SpeedControlBuilder::AxisJoint ( )

Returns the joint select.

This can be a HingeJoint , SlidingJoint and CylindricalJoint .
Created in NX7.5.1.

License requirements : None

NXOpen::Mechatronics::SpeedControlBuilder::AxisJointType NXOpen::Mechatronics::SpeedControlBuilder::AxisType ( )

Returns the axis joint type.

Created in NX7.5.1.

License requirements : None

bool NXOpen::Mechatronics::SpeedControlBuilder::EnableLimitForce ( )

Returns whether or not to enable the limit force.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::SpeedControlBuilder::ForwardForce ( )

Returns the forward force that speed control can apply.

Created in NX9.0.0.

License requirements : None

bool NXOpen::Mechatronics::SpeedControlBuilder::LimitJerk ( )

Returns the limit jerk flag, which is used to control if the speed control includes jerk data.

Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Mechatronics::SpeedControlBuilder::MaxAcceleration ( )

Returns the max acceleration, which is used to set the maximum acceleration for speed control.

Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Mechatronics::SpeedControlBuilder::MaxJerk ( )

Returns the max jerk, which is used to set the maximum jerk for speed control.

Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Mechatronics::SpeedControlBuilder::ReverseForce ( )

Returns the min force that speed control can apply.

Created in NX9.0.0.

License requirements : None

void NXOpen::Mechatronics::SpeedControlBuilder::SetAxisJoint ( NXOpen::NXObject * axisJoint )

Sets the joint.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

axisJoint axis joint

void NXOpen::Mechatronics::SpeedControlBuilder::SetAxisType ( NXOpen::Mechatronics::SpeedControlBuilder::AxisJointType axisType )

Sets the axis joint type.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

axisType axistype

void NXOpen::Mechatronics::SpeedControlBuilder::SetEnableLimitForce ( bool enable )

Sets whether or not to enable the limit force.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

enable enable

void NXOpen::Mechatronics::SpeedControlBuilder::SetLimitJerk ( bool limitJerk )

Sets the limit jerk flag, which is used to control if the speed control includes jerk data.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

limitJerk limitjerk

void NXOpen::Mechatronics::SpeedControlBuilder::SetUseAcceleration ( bool useAcceleration )

Sets the use acceleration flag, which is used to control if the speed control includes acceleration data.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

useAcceleration useacceleration

NXOpen::Expression* NXOpen::Mechatronics::SpeedControlBuilder::Speed ( )

Returns the speed.

Created in NX7.5.1.

License requirements : None

bool NXOpen::Mechatronics::SpeedControlBuilder::UseAcceleration ( )

Returns the use acceleration flag, which is used to control if the speed control includes acceleration data.

Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Mechatronics_SpeedControlBuilder.hxx
