Represents a Mechatronics::SCOUTImportBuilder , Nothing happened and no object returned when commit this builder
To create a new instance of this class, use Mechatronics::PhysicsManager::CreateSCOUTImportBuilder

Created in NX9.0.0. More...

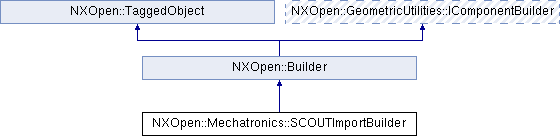

Inheritance diagram for NXOpen::Mechatronics::SCOUTImportBuilder:

Public Member Functions
NXString	ImportFile ()
	Returns the import file name Created in NX9.0.0.

void	ImportFromScout (NXOpen::Mechatronics::CamProfileBuilder *camProfile)
	Read the segments information from file Created in NX9.0.0.

void	SetImportFile (const NXString &importFile)
	Sets the import file name Created in NX9.0.0.

void	SetImportFile (const char *importFile)
	Sets the import file name Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::SCOUTImportBuilder , Nothing happened and no object returned when commit this builder
To create a new instance of this class, use Mechatronics::PhysicsManager::CreateSCOUTImportBuilder

Created in NX9.0.0.

Member Function Documentation

NXString NXOpen::Mechatronics::SCOUTImportBuilder::ImportFile ( )

Returns the import file name
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::SCOUTImportBuilder::ImportFromScout ( NXOpen::Mechatronics::CamProfileBuilder * camProfile )

Read the segments information from file
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

camProfile Cam Profile Builder

void NXOpen::Mechatronics::SCOUTImportBuilder::SetImportFile ( const NXString & importFile )

Sets the import file name
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

importFile importfile

void NXOpen::Mechatronics::SCOUTImportBuilder::SetImportFile ( const char * importFile )

Sets the import file name
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

importFile importfile

The documentation for this class was generated from the following file:
