Represents a Mechatronics::ReplacePhysicsBuilder builder. More...

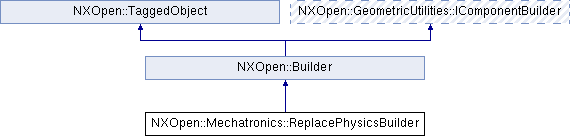

Inheritance diagram for NXOpen::Mechatronics::ReplacePhysicsBuilder:

Public Member Functions
void	MappingNewphysicsFileid (const NXString &originalPhysicsObjectPrototypeFileId, const NXString &newFileId)
	Maps new physics file id according to the original file id

void	MappingNewphysicsFileid (const char originalPhysicsObjectPrototypeFileId, const char newFileId)
	Maps new physics file id according to the original file id

void	MappingNewphysicsObject (const NXString &originalPhysicsObjectPrototypeFileId, NXOpen::NXObject *newPhysicsObj)
	Maps new physics object according to the original file id Created in NX9.0.0.

void	MappingNewphysicsObject (const char originalPhysicsObjectPrototypeFileId, NXOpen::NXObject newPhysicsObj)
	Maps new physics object according to the original file id Created in NX9.0.0.

void	ScanPhysicsObject (NXOpen::Assemblies::Component *replacedPartOcc)
	Scans physics objects in context Created in NX8.5.0.

void	SetReplacementStatus (bool status)
	Set the replacement status Created in NX8.5.2.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::ReplacePhysicsBuilder builder.

This class migrates physics objects from replaced component to replacement component in MCD environment, and regeneration of every physics object is done by its own JA interface.
To create a new instance of this class, use Mechatronics::PhysicsManager::CreateReplacePhysicsBuilder

Created in NX8.0.0.

Member Function Documentation

void NXOpen::Mechatronics::ReplacePhysicsBuilder::MappingNewphysicsFileid	(	const NXString &	originalPhysicsObjectPrototypeFileId,
		const NXString &	newFileId
	)

Maps new physics file id according to the original file id

Deprecated:: Deprecated in NX9.0.0.

Use Mechatronics::ReplacePhysicsBuilder::MappingNewphysicsObject instead.

Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

originalPhysicsObjectPrototypeFileId	The original physics object file id NOTE: The full Unicode character set is not supported for this parameter.
newFileId	The new file id NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Mechatronics::ReplacePhysicsBuilder::MappingNewphysicsFileid	(	const char *	originalPhysicsObjectPrototypeFileId,
		const char *	newFileId
	)

Maps new physics file id according to the original file id

Deprecated:: Deprecated in NX9.0.0.

Use Mechatronics::ReplacePhysicsBuilder::MappingNewphysicsObject instead.

Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

originalPhysicsObjectPrototypeFileId	The original physics object file id NOTE: The full Unicode character set is not supported for this parameter.
newFileId	The new file id NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Mechatronics::ReplacePhysicsBuilder::MappingNewphysicsObject	(	const NXString &	originalPhysicsObjectPrototypeFileId,
		NXOpen::NXObject *	newPhysicsObj
	)

Maps new physics object according to the original file id
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

originalPhysicsObjectPrototypeFileId	The original physics object file id NOTE: The full Unicode character set is not supported for this parameter.
newPhysicsObj	The new physics object to replace

void NXOpen::Mechatronics::ReplacePhysicsBuilder::MappingNewphysicsObject	(	const char *	originalPhysicsObjectPrototypeFileId,
		NXOpen::NXObject *	newPhysicsObj
	)

Maps new physics object according to the original file id
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

originalPhysicsObjectPrototypeFileId	The original physics object file id NOTE: The full Unicode character set is not supported for this parameter.
newPhysicsObj	The new physics object to replace

void NXOpen::Mechatronics::ReplacePhysicsBuilder::ScanPhysicsObject ( NXOpen::Assemblies::Component * replacedPartOcc )

Scans physics objects in context
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

replacedPartOcc The replaced part occurence

void NXOpen::Mechatronics::ReplacePhysicsBuilder::SetReplacementStatus ( bool status )

Set the replacement status
Created in NX8.5.2.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

status The replacement status

The documentation for this class was generated from the following file:

Mechatronics_ReplacePhysicsBuilder.hxx
