Represents a @link Mechatronics::PointOnCurveJoint Mechatronics::PointOnCurveJoint@endlink  builder  <br> To create a new instance of this class, use @link Mechatronics::PointOnCurveJointCollection::CreatePointOnCurveJointBuilder  Mechatronics::PointOnCurveJointCollection::CreatePointOnCurveJointBuilder @endlink  <br>

Default values. More...

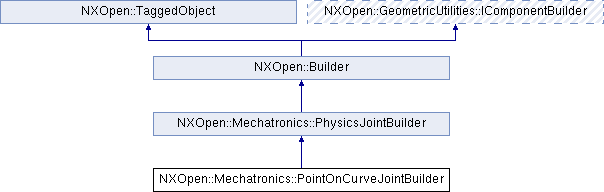

Inheritance diagram for NXOpen::Mechatronics::PointOnCurveJointBuilder:

Public Member Functions
NXOpen::Direction *	AxisVector ()
	Returns the axis vector which is tangent to the connected curve at the selected point Created in NX9.0.0.

void	EvaluatePath (const std::vector< NXOpen::NXObject * > &curves)
	Evaluate the path.

std::vector< NXOpen::NXObject * >	GetConnectedCurves ()
	Get the connected curves which the attachment will move along.

NXOpen::Expression *	Offset ()
	Returns the offset specifies the "Zero Point" on the curve whose distance to the point along the curve is the offset value.

NXOpen::Point *	PointOnCurve ()
	Returns the selected point on curve Created in NX9.0.0.

void	SetAxisVector (NXOpen::Direction *axisVector)
	Sets the axis vector which is tangent to the connected curve at the selected point Created in NX9.0.0.

void	SetConnectedCurves (const std::vector< NXOpen::NXObject * > &curves)
	Set the connected curves which the attachment will move along Created in NX9.0.0.

void	SetPointOnCurve (NXOpen::Point *pointOnCurve)
	Sets the selected point on curve Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Mechatronics::PhysicsJointBuilder
NXOpen::SelectNXObject *	Attachment ()
	Returns the attachment of joint.

NXOpen::SelectNXObject *	Base ()
	Returns the base of joint.

NXString	Name ()
	Returns the name.

void	SetAttachment (NXOpen::NXObject *attachment)
	Sets the attachment.

void	SetBase (NXOpen::NXObject *base)
	Sets the base.

void	SetName (const NXString &name)
	Sets the name.

void	SetName (const char *name)
	Sets the name.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Mechatronics::PointOnCurveJoint Mechatronics::PointOnCurveJoint@endlink  builder  <br> To create a new instance of this class, use @link Mechatronics::PointOnCurveJointCollection::CreatePointOnCurveJointBuilder  Mechatronics::PointOnCurveJointCollection::CreatePointOnCurveJointBuilder @endlink  <br>

Default values.

Property

Value

Offset.Value

0 (millimeters part), 0 (inches part)

Created in NX9.0.0.

Member Function Documentation

NXOpen::Direction* NXOpen::Mechatronics::PointOnCurveJointBuilder::AxisVector ( )

Returns the axis vector which is tangent to the connected curve at the selected point
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::PointOnCurveJointBuilder::EvaluatePath ( const std::vector< NXOpen::NXObject * > & curves )

Evaluate the path.

If there is no path, create it, otherwise evaluate it.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

curves curve or edge

std::vector<NXOpen::NXObject *> NXOpen::Mechatronics::PointOnCurveJointBuilder::GetConnectedCurves ( )

Get the connected curves which the attachment will move along.

Returns: curve or edge
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::PointOnCurveJointBuilder::Offset ( )

Returns the offset specifies the "Zero Point" on the curve whose distance to the point along the curve is the offset value.

       Zero Point is on the opposite direction of the axis with respect to the point on the curve.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Point* NXOpen::Mechatronics::PointOnCurveJointBuilder::PointOnCurve ( )

Returns the selected point on curve
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::PointOnCurveJointBuilder::SetAxisVector ( NXOpen::Direction * axisVector )

Sets the axis vector which is tangent to the connected curve at the selected point
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

axisVector axisvector

void NXOpen::Mechatronics::PointOnCurveJointBuilder::SetConnectedCurves ( const std::vector< NXOpen::NXObject * > & curves )

Set the connected curves which the attachment will move along
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

curves curve or edge

void NXOpen::Mechatronics::PointOnCurveJointBuilder::SetPointOnCurve ( NXOpen::Point * pointOnCurve )

Sets the selected point on curve
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

pointOnCurve pointoncurve

The documentation for this class was generated from the following file:

Mechatronics_PointOnCurveJointBuilder.hxx
