Represents a Mechatronics::GraphControl builder
To create a new instance of this class, use Mechatronics::GraphControlCollection::CreateGraphControlBuilder

Created in NX8.0.0. More...

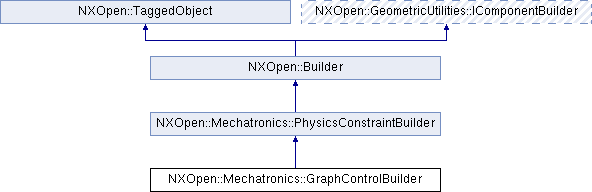

Inheritance diagram for NXOpen::Mechatronics::GraphControlBuilder:

Public Types
enum	EndAction { EndActionRestartfromBeginning, EndActionDeactivateGraphControl }
	the action in the end of graph. More...

enum	MasterJointType { MasterJointTypeLinear, MasterJointTypeRotary }
	the Master axis types. More...

enum	MasterValueUnit { MasterValueUnitLinear, MasterValueUnitRotary, MasterValueUnitTime }
	the Master Unit types. More...

enum	SlaveValueUnit { SlaveValueUnitLinearPosition, SlaveValueUnitRotaryPosition, SlaveValueUnitLinearSpeed, SlaveValueUnitRotarySpeed }
	the Slave Unit types. More...

Public Member Functions
NXOpen::Mechatronics::CamProfile *	CamProfile ()
	Returns a cam profile that contains a number of curves that describes the dependency of the motion of a Slave Axis with respect to the Master Axis.

NXOpen::Mechatronics::GraphControlBuilder::EndAction	GraphEndAction ()
	Returns the graph end action.

NXOpen::Expression *	InitialTime ()
	Returns the initial offset.

NXOpen::Mechatronics::GraphControlBuilder::MasterJointType	MasterAxisType ()
	Returns the master axis type Created in NX9.0.0.

NXOpen::Expression *	MasterOffset ()
	Returns an offset that specifies from the master axis zero point relative to the path zero point for path interpolation.

NXOpen::Expression *	MasterScaleFactor ()
	Returns the transformation that is described between the normalized representation to the absolute values.

NXOpen::Mechatronics::GraphControlBuilder::MasterValueUnit	MasterUnit ()
	Returns the master value unit Created in NX9.0.0.

NXOpen::Mechatronics::MotionProfile *	MotionProfile ()
	Returns the motion profile.

NXOpen::Mechatronics::SelectPhysicsConstraint *	SelectAxisControl ()
	Returns the select axis control.

NXOpen::Mechatronics::SelectPhysicsJoint *	SelectMasterJoint ()
	Returns the select axis joint.

void	SetCamProfile (NXOpen::Mechatronics::CamProfile *profile)
	Sets a cam profile that contains a number of curves that describes the dependency of the motion of a Slave Axis with respect to the Master Axis.

void	SetGraphEndAction (NXOpen::Mechatronics::GraphControlBuilder::EndAction graphEndAction)
	Sets the graph end action.

void	SetMasterAxisType (NXOpen::Mechatronics::GraphControlBuilder::MasterJointType type)
	Sets the master axis type Created in NX9.0.0.

void	SetMasterUnit (NXOpen::Mechatronics::GraphControlBuilder::MasterValueUnit masterType)
	Sets the master value unit Created in NX9.0.0.

void	SetMotionProfile (NXOpen::Mechatronics::MotionProfile *profile)
	Sets the motion profile.

void	SetSlaveUnit (NXOpen::Mechatronics::GraphControlBuilder::SlaveValueUnit slaveType)
	Sets the slave value unit Created in NX9.0.0.

NXOpen::Expression *	SlaveOffset ()
	Returns an offset that specifies from the master slave zero point relative to the path zero point for path interpolation.

NXOpen::Expression *	SlaveScaleFactor ()
	Returns the transformation that is described between the normalized representation to the absolute values.

NXOpen::Mechatronics::GraphControlBuilder::SlaveValueUnit	SlaveUnit ()
	Returns the slave value unit Created in NX9.0.0.

NXOpen::Expression *	ValueOffset ()
	Returns the value offset.

Public Member Functions inherited from NXOpen::Mechatronics::PhysicsConstraintBuilder
NXString	Name ()
	Returns the name.

void	SetName (const NXString &name)
	Sets the name.

void	SetName (const char *name)
	Sets the name.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::GraphControl builder
To create a new instance of this class, use Mechatronics::GraphControlCollection::CreateGraphControlBuilder

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Mechatronics::GraphControlBuilder::EndAction

the action in the end of graph.

Enumerator:

EndActionRestartfromBeginning	restart from the beginning of graph.
EndActionDeactivateGraphControl	deactivate this graph control.

enum NXOpen::Mechatronics::GraphControlBuilder::MasterJointType

the Master axis types.

Enumerator:

MasterJointTypeLinear	Linear.
MasterJointTypeRotary	Rotary.

enum NXOpen::Mechatronics::GraphControlBuilder::MasterValueUnit

the Master Unit types.

Enumerator:

MasterValueUnitLinear	Linear.
MasterValueUnitRotary	Rotary.
MasterValueUnitTime	Time.

enum NXOpen::Mechatronics::GraphControlBuilder::SlaveValueUnit

the Slave Unit types.

Enumerator:

SlaveValueUnitLinearPosition	Linear Position.
SlaveValueUnitRotaryPosition	Rotary Position.
SlaveValueUnitLinearSpeed	Linear Speed.
SlaveValueUnitRotarySpeed	Rotary Speed.

Member Function Documentation

NXOpen::Mechatronics::CamProfile* NXOpen::Mechatronics::GraphControlBuilder::CamProfile ( )

Returns a cam profile that contains a number of curves that describes the dependency of the motion of a Slave Axis with respect to the Master Axis.

This can be CamProfile .

Created in NX9.0.0.

License requirements : None

NXOpen::Mechatronics::GraphControlBuilder::EndAction NXOpen::Mechatronics::GraphControlBuilder::GraphEndAction ( )

Returns the graph end action.

Created in NX8.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::GraphControlBuilder::InitialTime ( )

Returns the initial offset.

Created in NX8.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Mechatronics::GraphControlBuilder::MasterJointType NXOpen::Mechatronics::GraphControlBuilder::MasterAxisType ( )

Returns the master axis type
Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Mechatronics::GraphControlBuilder::MasterOffset ( )

Returns an offset that specifies from the master axis zero point relative to the path zero point for path interpolation.

Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Mechatronics::GraphControlBuilder::MasterScaleFactor ( )

Returns the transformation that is described between the normalized representation to the absolute values.

It applied to slave axis.
Created in NX9.0.0.

License requirements : None

NXOpen::Mechatronics::GraphControlBuilder::MasterValueUnit NXOpen::Mechatronics::GraphControlBuilder::MasterUnit ( )

Returns the master value unit
Created in NX9.0.0.

License requirements : None

NXOpen::Mechatronics::MotionProfile* NXOpen::Mechatronics::GraphControlBuilder::MotionProfile ( )

Returns the motion profile.

This can be MotionProfile .
Created in NX8.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Mechatronics::SelectPhysicsConstraint* NXOpen::Mechatronics::GraphControlBuilder::SelectAxisControl ( )

Returns the select axis control.

This can be a SpeedControl , PositionControl .
Created in NX8.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Mechatronics::SelectPhysicsJoint* NXOpen::Mechatronics::GraphControlBuilder::SelectMasterJoint ( )

Returns the select axis joint.

This can be a * HingeJoint , SlidingJoint , CylindricalJoint .
Created in NX9.0.0.

License requirements : None

void NXOpen::Mechatronics::GraphControlBuilder::SetCamProfile ( NXOpen::Mechatronics::CamProfile * profile )

Sets a cam profile that contains a number of curves that describes the dependency of the motion of a Slave Axis with respect to the Master Axis.

This can be CamProfile .

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

profile profile

void NXOpen::Mechatronics::GraphControlBuilder::SetGraphEndAction ( NXOpen::Mechatronics::GraphControlBuilder::EndAction graphEndAction )

Sets the graph end action.

Created in NX8.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

graphEndAction graphendaction

void NXOpen::Mechatronics::GraphControlBuilder::SetMasterAxisType ( NXOpen::Mechatronics::GraphControlBuilder::MasterJointType type )

Sets the master axis type
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

type type

void NXOpen::Mechatronics::GraphControlBuilder::SetMasterUnit ( NXOpen::Mechatronics::GraphControlBuilder::MasterValueUnit masterType )

Sets the master value unit
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

masterType mastertype

void NXOpen::Mechatronics::GraphControlBuilder::SetMotionProfile ( NXOpen::Mechatronics::MotionProfile * profile )

Sets the motion profile.

This can be MotionProfile .
Created in NX8.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

profile profile

void NXOpen::Mechatronics::GraphControlBuilder::SetSlaveUnit ( NXOpen::Mechatronics::GraphControlBuilder::SlaveValueUnit slaveType )

Sets the slave value unit
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

slaveType slavetype

NXOpen::Expression* NXOpen::Mechatronics::GraphControlBuilder::SlaveOffset ( )

Returns an offset that specifies from the master slave zero point relative to the path zero point for path interpolation.

Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Mechatronics::GraphControlBuilder::SlaveScaleFactor ( )

Returns the transformation that is described between the normalized representation to the absolute values.

It applied to slave axis.
Created in NX9.0.0.

License requirements : None

NXOpen::Mechatronics::GraphControlBuilder::SlaveValueUnit NXOpen::Mechatronics::GraphControlBuilder::SlaveUnit ( )

Returns the slave value unit
Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Mechatronics::GraphControlBuilder::ValueOffset ( )

Returns the value offset.

Created in NX8.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

The documentation for this class was generated from the following file:

Mechatronics_GraphControlBuilder.hxx
