Represents a Mechatronics::ExternalConnection builder
To create a new instance of this class, use Mechatronics::ExternalConnectionCollection::CreateExternalConnectionBuilder

Created in NX8.0.0. More...

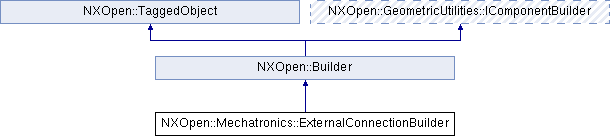

Inheritance diagram for NXOpen::Mechatronics::ExternalConnectionBuilder:

Public Types
enum	ConditionType { ConditionTypeEq, ConditionTypeGt, ConditionTypeLt, ConditionTypeGe, ConditionTypeLe, ConditionTypeNe }
	the condition type. More...

Public Member Functions
void	AddElement (int propTag, int signalType, const NXString &signalName, int propertyType, int streamIO, int conditionType, double conditionValue, double multiplier, double offsetValue, int boolOperator)
	Add one element.

void	AddElement (int propTag, int signalType, const char *signalName, int propertyType, int streamIO, int conditionType, double conditionValue, double multiplier, double offsetValue, int boolOperator)
	Add one element.

NXOpen::Mechatronics::ExternalConnectionElementBuilderList *	ConnectionList ()
	Returns the connection element list.

NXString	Name ()
	Returns the name.

void	RemoveAllElements ()
	Remove all elements.

NXOpen::SelectNXObject *	SelectPhysics ()
	Returns the select physics.

void	SetName (const NXString &name)
	Sets the name.

void	SetName (const char *name)
	Sets the name.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::ExternalConnection builder
To create a new instance of this class, use Mechatronics::ExternalConnectionCollection::CreateExternalConnectionBuilder

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Mechatronics::ExternalConnectionBuilder::ConditionType

the condition type.

Deprecated:: Deprecated in NX8.0.1. Please use ExternalConnectionElementBuilder instead.

Enumerator:

ConditionTypeEq	equal
ConditionTypeGt	greater than
ConditionTypeLt	less than
ConditionTypeGe	greater than or equal
ConditionTypeLe	less than or equal
ConditionTypeNe	not equal

Member Function Documentation

void NXOpen::Mechatronics::ExternalConnectionBuilder::AddElement	(	int	propTag,
		int	signalType,
		const NXString &	signalName,
		int	propertyType,
		int	streamIO,
		int	conditionType,
		double	conditionValue,
		double	multiplier,
		double	offsetValue,
		int	boolOperator
	)

Add one element.

Deprecated:: Deprecated in NX8.0.1. Please use ExternalConnectionElementBuilder instead.

Created in NX8.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

propTag	proptag
signalType	signaltype
signalName	signalname
propertyType	propertytype
streamIO	streamio
conditionType	conditiontype
conditionValue	conditionvalue
multiplier	multiplier
offsetValue	offsetvalue
boolOperator	booloperator

void NXOpen::Mechatronics::ExternalConnectionBuilder::AddElement	(	int	propTag,
		int	signalType,
		const char *	signalName,
		int	propertyType,
		int	streamIO,
		int	conditionType,
		double	conditionValue,
		double	multiplier,
		double	offsetValue,
		int	boolOperator
	)

Add one element.

Deprecated:: Deprecated in NX8.0.1. Please use ExternalConnectionElementBuilder instead.

Created in NX8.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

propTag	proptag
signalType	signaltype
signalName	signalname
propertyType	propertytype
streamIO	streamio
conditionType	conditiontype
conditionValue	conditionvalue
multiplier	multiplier
offsetValue	offsetvalue
boolOperator	booloperator

NXOpen::Mechatronics::ExternalConnectionElementBuilderList* NXOpen::Mechatronics::ExternalConnectionBuilder::ConnectionList ( )

Returns the connection element list.

Created in NX8.0.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXString NXOpen::Mechatronics::ExternalConnectionBuilder::Name ( )

Returns the name.

Created in NX8.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::ExternalConnectionBuilder::RemoveAllElements ( )

Remove all elements.

Deprecated:: Deprecated in NX8.0.1. Please use ExternalConnectionElementBuilder instead.

Created in NX8.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::SelectNXObject* NXOpen::Mechatronics::ExternalConnectionBuilder::SelectPhysics ( )

Returns the select physics.

Created in NX8.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::ExternalConnectionBuilder::SetName ( const NXString & name )

Sets the name.

Created in NX8.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

name name

void NXOpen::Mechatronics::ExternalConnectionBuilder::SetName ( const char * name )

Sets the name.

Created in NX8.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

name name

The documentation for this class was generated from the following file:

Mechatronics_ExternalConnectionBuilder.hxx
