Represents a Mechatronics::ExternalConnectionElementBuilder builder
To create a new instance of this class, use Mechatronics::ExternalConnectionCollection::CreateExternalConnectionElementBuilder

Created in NX8.0.1. More...

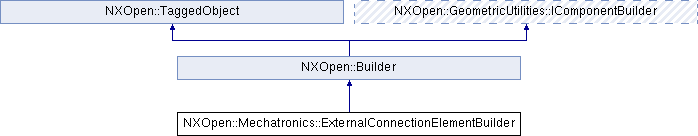

Inheritance diagram for NXOpen::Mechatronics::ExternalConnectionElementBuilder:

Public Types
enum	ConditionType { ConditionTypeEq, ConditionTypeGt, ConditionTypeLt, ConditionTypeGe, ConditionTypeLe, ConditionTypeNe }
	the condition type. More...

enum	DataType { DataTypeUnknown, DataTypeInteger, DataTypeFloat, DataTypeBoolean }
	the data type. More...

enum	StreamType { StreamTypeR, StreamTypeW, StreamTypeRw }
	the stream type. More...

Public Member Functions
NXOpen::Mechatronics::ExternalConnectionElementBuilder::ConditionType	ConditionOption ()
	Returns the condition type.

double	ConditionValue ()
	Returns the condition value.

bool	Inverse ()
	Returns whether to inverse the logic value.

double	Multiplier ()
	Returns the multiplier.

double	OffsetValue ()
	Returns the offset value.

NXOpen::Mechatronics::ExternalConnectionElementBuilder::DataType	PropertyDataType ()
	Returns the data type of physics property.

int	PropertyId ()
	Returns the property ID of physics object.

void	SetConditionOption (NXOpen::Mechatronics::ExternalConnectionElementBuilder::ConditionType type)
	Sets the condition type.

void	SetConditionValue (double conditionValue)
	Sets the condition value.

void	SetInverse (bool inverse)
	Sets whether to inverse the logic value.

void	SetMultiplier (double multiplier)
	Sets the multiplier.

void	SetOffsetValue (double offset)
	Sets the offset value.

void	SetPropertyDataType (NXOpen::Mechatronics::ExternalConnectionElementBuilder::DataType dataType)
	Sets the data type of physics property.

void	SetPropertyId (int propId)
	Sets the property ID of physics object.

void	SetSignalDataType (NXOpen::Mechatronics::ExternalConnectionElementBuilder::DataType dataType)
	Sets the data type of signal.

void	SetSignalName (const NXString &name)
	Sets the name of signal.

void	SetSignalName (const char *name)
	Sets the name of signal.

void	SetStreamOption (NXOpen::Mechatronics::ExternalConnectionElementBuilder::StreamType streamType)
	Sets the data stream type.

NXOpen::Mechatronics::ExternalConnectionElementBuilder::DataType	SignalDataType ()
	Returns the data type of signal.

NXString	SignalName ()
	Returns the name of signal.

NXOpen::Mechatronics::ExternalConnectionElementBuilder::StreamType	StreamOption ()
	Returns the data stream type.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::ExternalConnectionElementBuilder builder
To create a new instance of this class, use Mechatronics::ExternalConnectionCollection::CreateExternalConnectionElementBuilder

Created in NX8.0.1.

Member Enumeration Documentation

enum NXOpen::Mechatronics::ExternalConnectionElementBuilder::ConditionType

the condition type.

Enumerator:

ConditionTypeEq	equal
ConditionTypeGt	greater than
ConditionTypeLt	less than
ConditionTypeGe	greater than or equal
ConditionTypeLe	less than or equal
ConditionTypeNe	not equal

enum NXOpen::Mechatronics::ExternalConnectionElementBuilder::DataType

the data type.

Enumerator:

DataTypeUnknown	unknown
DataTypeInteger	integer
DataTypeFloat	float
DataTypeBoolean	boolean

enum NXOpen::Mechatronics::ExternalConnectionElementBuilder::StreamType

the stream type.

Enumerator:

StreamTypeR	read
StreamTypeW	write
StreamTypeRw	read and write

Member Function Documentation

NXOpen::Mechatronics::ExternalConnectionElementBuilder::ConditionType NXOpen::Mechatronics::ExternalConnectionElementBuilder::ConditionOption ( )

Returns the condition type.
