Represents a Mechatronics::CylindricalJoint builder. More...

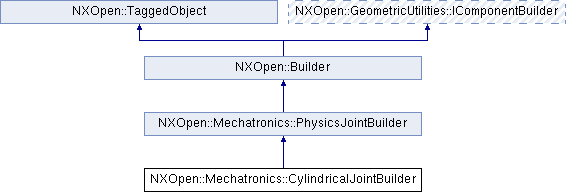

Inheritance diagram for NXOpen::Mechatronics::CylindricalJointBuilder:

Public Member Functions
NXOpen::Point *	AnchorPoint ()
	Returns the anchor point.

NXOpen::Direction *	AxisVector ()
	Returns the axis vector.

NXOpen::Expression *	Offset ()
	Returns the offset value.

void	SetAnchorPoint (NXOpen::Point *anchorPoint)
	Sets the anchor point.

void	SetAxisVector (NXOpen::Direction *axisVector)
	Sets the axis vector.

NXOpen::Expression *	StartAngle ()
	Returns the start angle.

Public Member Functions inherited from NXOpen::Mechatronics::PhysicsJointBuilder
NXOpen::SelectNXObject *	Attachment ()
	Returns the attachment of joint.

NXOpen::SelectNXObject *	Base ()
	Returns the base of joint.

NXString	Name ()
	Returns the name.

void	SetAttachment (NXOpen::NXObject *attachment)
	Sets the attachment.

void	SetBase (NXOpen::NXObject *base)
	Sets the base.

void	SetName (const NXString &name)
	Sets the name.

void	SetName (const char *name)
	Sets the name.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::CylindricalJoint builder.

To create a new instance of this class, use Mechatronics::CylindricalJointCollection::CreateCylindricalJointBuilder

Created in NX7.5.1.
